À propos du produit

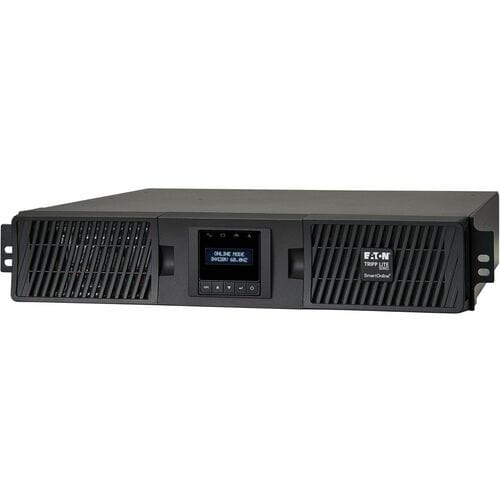

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for optional network management card option. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.
- 100/110/120/127V 50/60Hz output; High efficiency economy mode option
- 1000VA / 1kVA / 900W on-line double-conversion 2U rack / tower UPS
- Expandable runtime, Hot-swap batteries, 12.5 in / 31.8cm depth
- Interactive LCD with 9 selectable screens of UPS and site power data
- Energy Star Qualified
Spécifications techniques
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 4.80 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Weight (Approximate) | 29 lb (13154.18 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Technical Information | |
| Bypass Switch | Automatic |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Transfer Time | 0 ns |
| Receptacle Detail | 6 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 127 V AC |
| 120 V AC | |
| 115 V AC | |
| 110 V AC | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SU1000RTXLCD2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SU1000RTXLCD2U |
| Product Name | SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS |
| Product Line | SmartOnline |
| Brand Name | Tripp Lite series |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerAlert UPS Monitoring Software |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
