À propos du produit

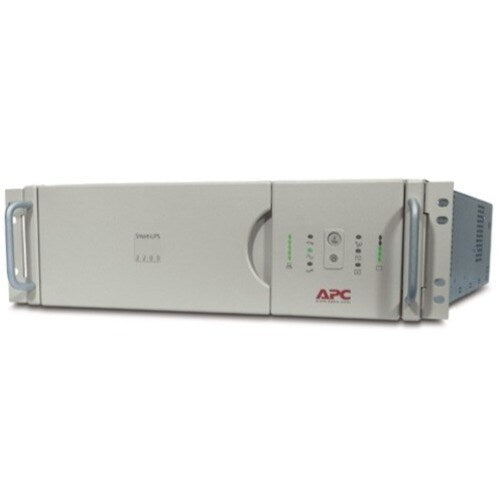

Smart-UPS 2200VA protects your data by supplying network-grade battery backup when power fails. With PowerChute® plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. SmartSlot internal accessory slot allows you to install optional accessories to enhance the performance of your UPS. APC Smart-UPS is the perfect UPS for fileservers, minicomputers, UNIX CPU's, internet hubs, telecommunications systems and other mission-critical applications.
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- 2.20 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 6.80 minute at full load
- Up to 6.80 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Environmental Conditions | |
| Thermal Dissipation | 275 BTU/h |
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 47 dB(A) |
| Management | |
| Battery Management | Intelligent Battery Management |
| Network Management | SNMP Manageable |
| Alarm | Low Battery |
| On Battery | |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Technical Information | |
| Emergency Power OFF | Optional |
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 6 ft (1.83 m) |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 24.50 Minute |
| Backup/Run Time (Full Load) | 6.80 Minute |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Power Consumption | 1600 W |
| Surge Energy Rating | 480 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 2.20 kVA |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SU2200R3X167 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 2200VA RM |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 103 lb (46720.01 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.20" (132.08 mm) |
| Width | 19" (482.60 mm) |
| Depth | 25" (635 mm) |
| Product Color | Beige |
| Color Family | Beige |
