208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

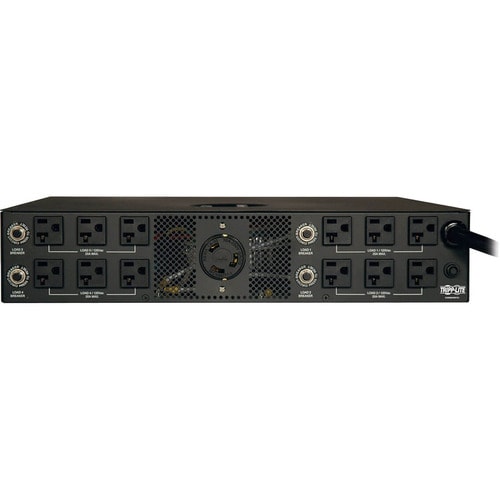

The 5kVA 5kW SU5000XFMR2UTAA SmartOnline® Step-Down Isolation Transformer converts your UPS, utility or generator's 208V high-voltage input to 120V low-voltage output. It features 12 NEMA 5-15/20R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Four resettable 20A circuit breakers protect your low-voltage equipment against overload conditions. One NEMA L6-30R outlet supports high-voltage output. The 5kVA transformer's 10-foot power cord with 208V 30A input connects to a NEMA L6-30R outlet.
Versatile Installation Options
Hardware is included for mounting this 208V to 120V isolation transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 20.75 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately).
TAA-Compliant UPS for GSA Schedule Purchases
The SU5000XFMR2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design
The SU5000XFMR2UTAA comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
Spécifications techniques
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Maximum Line Current | 30 A |
| Technical Information | |
| Power Rating | 5 kVA |
| Output Receptacle Detail | 1 x NEMA L6-30R |
| 12 x NEMA 5-15/20R | |
| Output Receptacle Type | NEMA L6-30R |
| NEMA 5-15/20R | |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Tripp Lite Devices:
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 57 lb (25854.77 g) |
| Form Factor | Tower/Rack Mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 20.75" (527.05 mm) |
| General Information | |
| Product Type | Isolation/Step-Down Transformer |
| Manufacturer Part Number | SU5000XFMR2UTAA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SU5000XFMR2UTAA |
| Product Name | SmartOnline SU5000XFMR2UTAA Isolation/Step-Down Transformer |
| Product Line | SmartOnline |
| Brand Name | Tripp Lite by Eaton |
