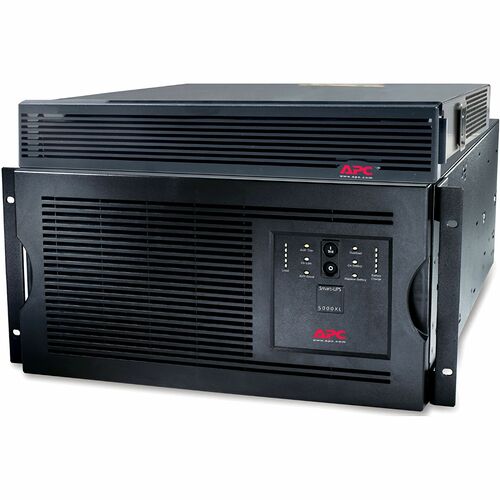

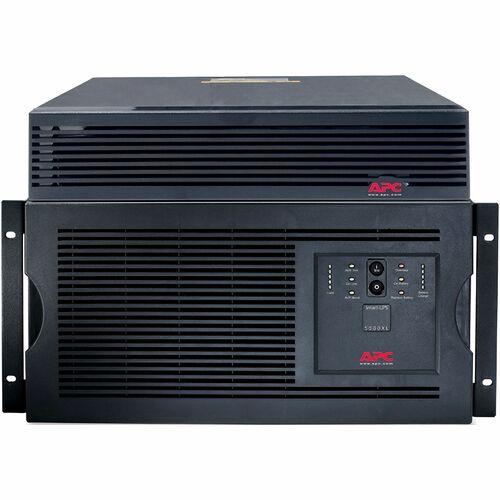

The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.
- 5 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 4 kW load capacity
- Keep your sensitive devices powered with a backup of up to 9.40 minute at full load
- Up to 9.40 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Management | |
| Network Management | SNMP Manageable |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 26.70 Minute |
| Backup/Run Time (Full Load) | 9.40 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SUA5000R5TXFMR |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 5000VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Surge Energy Rating | 1020 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4 kW |
| Technical Information | |
| Dataline Protection | RJ-45 |
| Emergency Power OFF | Optional |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | NEMA L6-30P |
| Number of Battery & Surge Outlets | 15 |

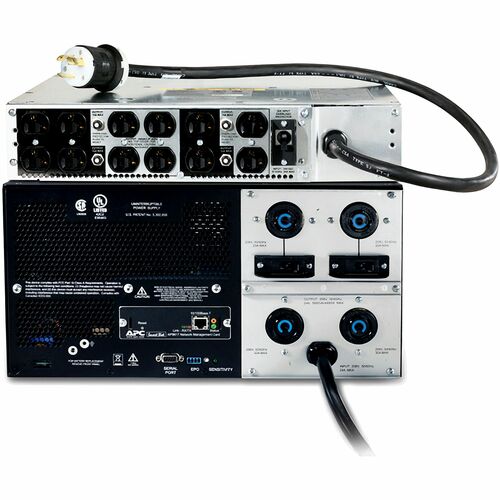

| Receptacle Detail | 1 x NEMA L6-30R |
| 12 x NEMA 5-20R | |
| 2 x NEMA L6-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 320.66 lb (145448.93 g) |
| Form Factor | Rack-mountable |
| Rack Height | 7U |
| Height | 12.24" (311 mm) |
| Width | 19.02" (483 mm) |
| Depth | 25" (635 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Software Included | PowerChute Management Software |
| Certifications & Standards | CSA |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA5000R5TXFMR_ROHS_DECLARATION&p_FileName=SUA5000R5TXFMRKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035739&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035739&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
