À propos du produit

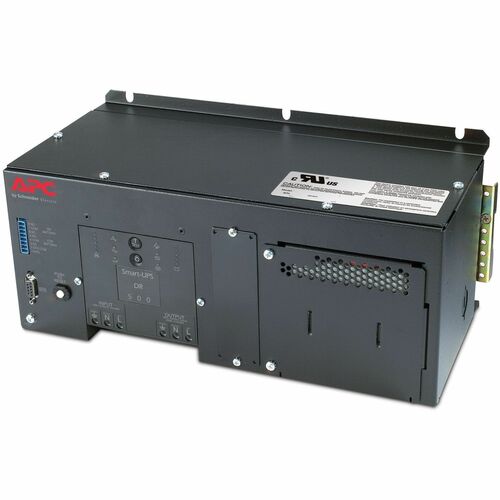

Proven Industrial UPS power protection for control applications and harsh environments.
- Proven Industrial UPS power protection for control applications and harsh environments.
- Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Status Display:
|
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 90 BTU/h |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Management | |
| Network Management | DB9 RS-232/SmartSlot |
| Alarm | Overload |
| On Battery | |
| Low Battery | |
| Configurable Delay | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SUA500PDR-H |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | 500VA Panel Mount UPS |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 25.31 lb (11480.42 g) |
| Form Factor | Tower |
| Height | 5.83" (148 mm) |
| Width | 14.25" (362 mm) |
| Depth | 6.73" (171 mm) |
| Mounting Preference | No Preference |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 540 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 82 V AC - 144 V AC |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 325 W |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Energy | 432 kJ |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 24.40 Minute |
| Backup/Run Time (Full Load) | 8.10 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 2 Hour |
| Technical Information | |
| Application/Usage | Automotive |
| Pharmaceutical | |
| Mission Critical Equipment | |
| Industry | |
| Chemical | |
| Transportation | |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Number of Battery & Surge Outlets | 1 |
| Transfer Time | 0 ns |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + E) |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | UL Recognized |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-H_ROHS_DECLARATION&p_FileName=SUA500PDR-HKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384167192&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384167192&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
