À propos du produit
Proven Industrial UPS power protection for control applications and harsh environments.
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- 500 VA load capacity - work without any interruption during power outages
- 325 W load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 325 W load capacity
- 500 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 8 minute at full load
- Up to 8 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Interfaces/Ports | |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 24 Minute |
| Backup/Run Time (Full Load) | 8 Minute |
| Battery Characteristics | Maintenance-free, Sealed |
| Typical Battery Recharge Time | 2 Hour |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SUA500PDR-S |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

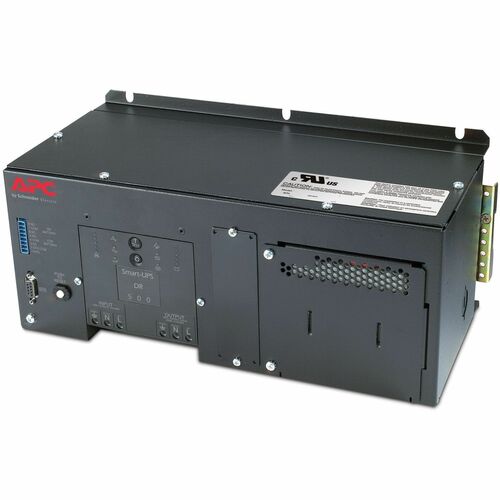

| Product Name | Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 540 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 325 W |
| Technical Information | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Cord Length | 8 ft (2.44 m) |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Number of Battery & Surge Outlets | 1 |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + E) |
| Physical Characteristics | |
| Weight (Approximate) | 28.35 lb (12859.34 g) |
| Form Factor | Tower |
| Rack Height | 1U |
| Height | 5.83" (148 mm) |
| Width | 14.25" (362 mm) |
| Depth | 6.73" (171 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Preference | No Preference |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | UL Recognized |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-S_ROHS_DECLARATION&p_FileName=SUA500PDR-SKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194164&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194164&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
