Reliable protection for industrial controls.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.
- Works adequately in situations where the supply is prone to sags and surges
- Experience higher efficiency with lower energy cost
- 500 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 325 W load capacity
- 500 VA load capacity provides sufficient backup during power failures
- Up to 8 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators |
|
| Interfaces/Ports | |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Environmental Conditions | |
| Thermal Dissipation | 90 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Management | |
| Alarm | Overload |
| Low Battery | |
| On Battery | |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 540 J |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 325 W |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SUA500PDRI-H |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

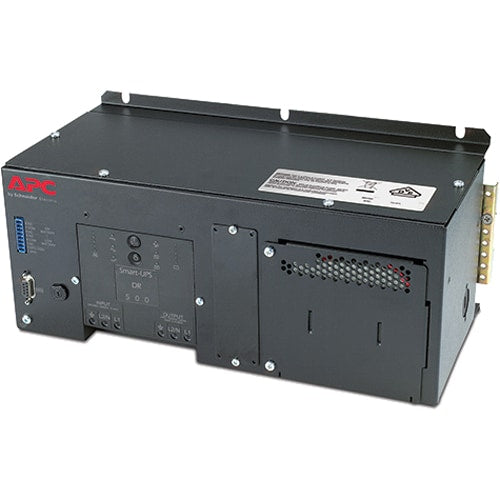

| Product Name | DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V |
| Brand Name | APC by Schneider Electric |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerChute v.9.1 Business Edition Deluxe |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 28.35 lb (12860 g) |
| Form Factor | Panel Mount |
| Wall Mountable | |
| Height | 5.83" (148 mm) |
| Width | 14.25" (362 mm) |
| Depth | 6.73" (171 mm) |
| Technical Information | |
| Dataline Protection | DB-9 |
| RS-232 | |
| Emergency Power OFF | Yes |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + G) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 24 Minute |
| Backup/Run Time (Full Load) | 8 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
