À propos du produit

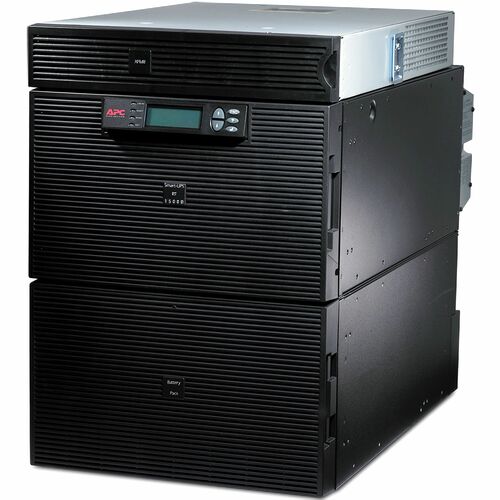

The APC Smart-UPS RT is an online UPS with transformer and a power rating of 15kVA and output power capacity of 12000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Interfaces/Ports | |
| Modular Slots | SmartSlot |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 4 |
| Backup/Run Time (Full Load) | 8 Minute |
| Battery Characteristics | Maintenance-free/Sealed/Spill Proof |
| Typical Battery Recharge Time | 2.50 Hour |
| Management | |
| Bypass Switch | Static |
| Automatic | |
| Manual | |
| Internal | |
| External (Optional) | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURT15KRMXLT-TF5 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Model | SURT15KRMXLT-TF5 |
| Product Name | Smart-UPS On-Line SURT15KRMXLT-TF5 15 kVA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Input Current | 83 A |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 15 kVA |
| Physical Characteristics | |
| Weight (Approximate) | 641.35 lb (290911.47 g) |
| Form Factor | Rack-mountable |
| Rack Height | 14U |
| Height | 24.49" (622 mm) |
| Width | 17.01" (432 mm) |
| Depth | 30.43" (773 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | NEMA 5-20R |
| NEMA L6-20R | |
| Hard Wire 3-wire (2PH + G) | |
| NEMA L6-30R | |
| Number of Battery & Surge Outlets | 17 |
| Receptacle Detail | 4 x NEMA L6-20R |
| 12 x NEMA 5-20R | |
| 1 x NEMA L6-30R | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| Miscellaneous | |
| Certifications & Standards | UL 1778 |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT15KRMXLT-TF5_ROHS_DECLARATION&p_FileName=SURT15KRMXLT-TF5KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035862&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035862&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
