À propos du produit
High density, double-conversion on-line power protection with scalable runtime
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15.30 Minute |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
| Management | |
| Bypass Switch | Static |
| Automatic & Manual | |
| Internal | |
| External (Optional) | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURT20KRMXLT-1TF10K |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

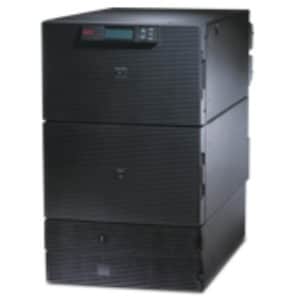

| Product Name | Smart-UPS RT 20kVA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS |
| Product Series | RT |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Input Current | 105 A |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 20 kVA |
| Physical Characteristics | |
| Weight (Approximate) | 766.61 lb (347728.45 g) |
| Form Factor | Rack-mountable |
| Rack Height | 16U |
| Height | 27.87" (708 mm) |
| Width | 17.01" (432 mm) |
| Depth | 30.43" (773 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | NEMA L6-30R |
| NEMA L6-20R | |
| NEMA L5-20R | |
| Hard Wire 4-wire (2PH+N+G) | |
| NEMA L14-30R | |

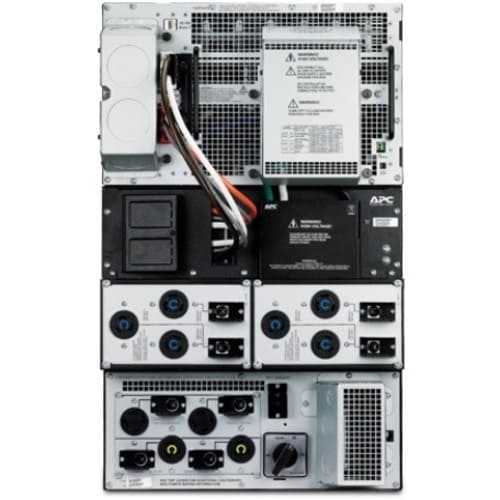

| Number of Battery & Surge Outlets | 11 |
| Receptacle Detail | 4 x NEMA L6-20R |
| 2 x NEMA L6-30R | |
| 2 x NEMA L5-20R | |
| 2 x NEMA L14-30R | |
| 1 x Hard Wire 4-wire (2PH+N+G) | |
| Miscellaneous | |
| Package Contents | |
| Software Included | PowerChute Management Software |
| Certifications & Standards | Reference contains Substances of Very High Concern above the threshold |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT20KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567070057&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567070057&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2304008_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2304008_V1 |
| REACH free of SVHC | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
