À propos du produit

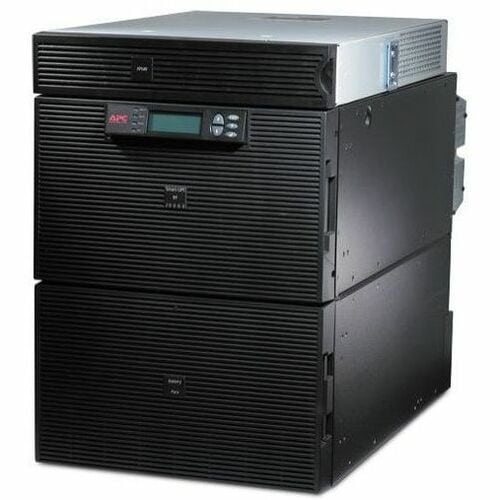

L'APC Smart-UPS RT est un onduleur en ligne avec transformateur, d'une puissance nominale de 20 kVA et d'une puissance de sortie de 16 000 watts. Il est équipé de plusieurs connexions de sortie, notamment NEMA 5-20R, NEMA L6-20R et NEMA L6-30R. Ce modèle est équipé d'une batterie plomb-acide et montable en rack. Il présente une topologie en ligne à double conversion, une forme d'onde sinusoïdale et un bypass intégré.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15.30 Minute |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
| Management | |
| Bypass Switch | Static |
| Internal | |
| External (Optional) | |
| Automatic & Manual | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURT20KRMXLTTF5 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS RT 20kVA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS |
| Product Series | RT |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Input Current | 105 A |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 20 kVA |
| Physical Characteristics | |
| Weight (Approximate) | 641.35 lb (290911.47 g) |
| Form Factor | Rack-mountable |
| Rack Height | 14U |
| Height | 24.49" (622 mm) |
| Width | 17.01" (432 mm) |
| Depth | 30.43" (773 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | Hard Wire 3-wire (2PH + G) |
| NEMA L6-20R | |
| NEMA L6-30R | |
| NEMA 5-20R | |
| Number of Battery & Surge Outlets | 17 |
| Receptacle Detail | 1 x NEMA L6-30R |
| 12 x NEMA 5-20R | |
| 4 x NEMA L6-20R | |
| 1 x Hard Wire 3-wire (2PH + G) | |
| Miscellaneous | |
| Package Contents | |
| Software Included | PowerChute Management Software |
| Certifications & Standards | UL 1778 |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT-TF5_ROHS_DECLARATION&p_FileName=SURT20KRMXLT-TF5KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035887&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035887&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
