À propos du produit
High availability, ruggedized power protection for shipboard and other transportation applications.
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.10 kW load capacity
- Up to 14 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 34 Minute |
| Backup/Run Time (Full Load) | 14 Minute |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Typical Battery Recharge Time | 2.50 Hour |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURTD3000XLIM |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

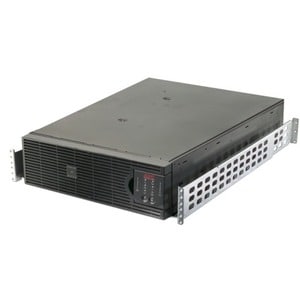

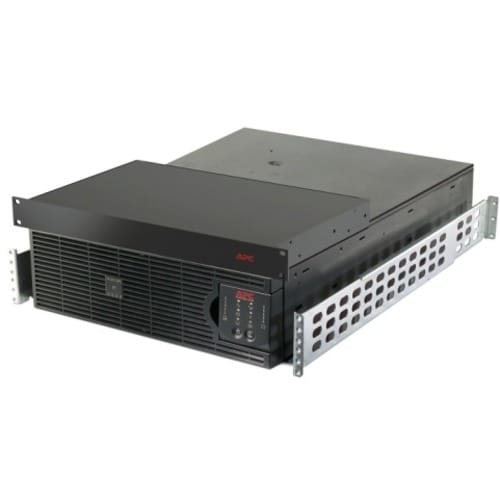

| Product Name | Smart-UPS 3000VA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| 240 V AC | |
| Surge Energy Rating | 555 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.10 kW |
| Technical Information | |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
| Plug/Connector Type | IEC 60320 C20 |
| SCHUKO CEE 7 EU1-16P | |
| British BS1363A | |
| Cord Length | 8 ft (2.44 m) |

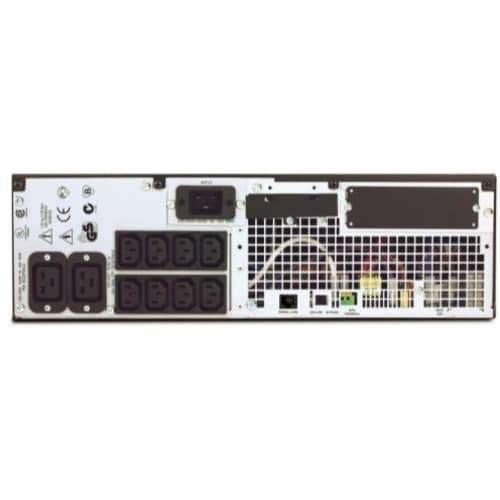

| Number of Battery & Surge Outlets | 12 |
| Physical Characteristics | |
| Weight (Approximate) | 120 lb (54431.08 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 17" (431.80 mm) |
| Width | 5.10" (129.54 mm) |
| Depth | 26" (660.40 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD3000XLIM_ROHS_DECLARATION&p_FileName=SURTD3000XLIMKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=66018252&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=66018252&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
