À propos du produit
Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChuteâ"¢ management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated network management card for remote management (optional on models below 5kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.
- Prevent critical data loss by staying powered during a blackout with up to 4 kW load capacity
- 5 kVA load capacity provides sufficient backup during power failures
- Up to 4.80 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Interfaces/Ports | |
| Serial Port | Yes |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 15.10 Minute |
| Backup/Run Time (Full Load) | 4.80 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Typical Battery Recharge Time | 2.50 Hour |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Surge Energy Rating | 365 J |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4 kW |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SURTD5000RMXLP3U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

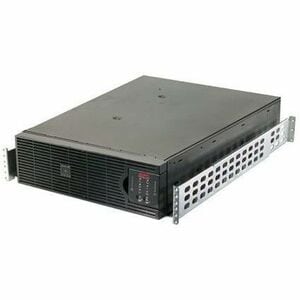

| Product Name | Smart-UPS RT 5000VA Tower/Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | RT |
| Brand Name | APC by Schneider Electric |
| Physical Characteristics | |
| Weight (Approximate) | 128 lb (58059.82 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25.98" (660 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Technical Information | |
| Bypass Switch | Internal |
| Manual | |
| Automatic | |
| Emergency Power OFF | Yes |

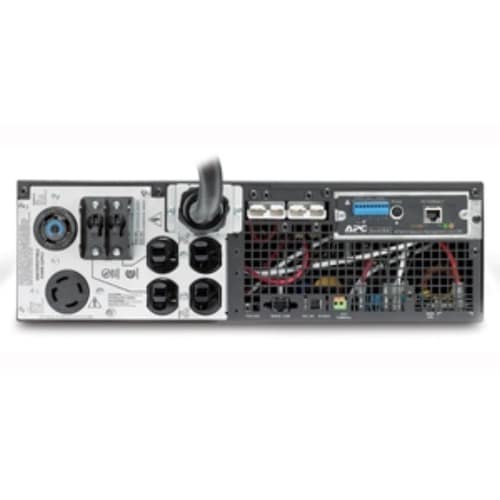

| Plug/Connector Type | NEMA L14-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L14-30P |
| Number of Battery & Surge Outlets | 6 |
| Receptacle Detail | 4 x NEMA 5-20R |
| 1 x NEMA L6-30R | |
| 1 x NEMA L14-30R | |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CSA |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURTD5000RMXLP3U_ROHS_DECLARATION&p_FileName=SURTD5000RMXLP3UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765934&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765934&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
