À propos du produit
5kVA transformer converts UPS 208V input to 120V for powering low-voltage AC components.
Features | 208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

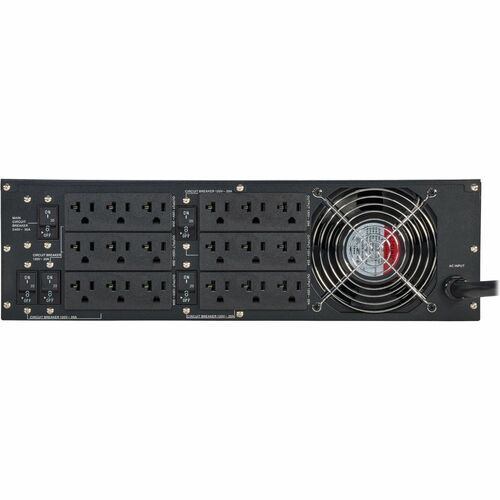

This 5kVA Stepdown Transformer converts your UPS system's 208V high-voltage input to 120V low voltage output. It features 18 NEMA 5-20R outlets (two sets of nine outlets) for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable 20A circuit breakers protect your 120V equipment against overload conditions. The SUTFMR works with select 5kVA to 6kVA SmartOnline® UPS systems.
Versatile Installation Options
You can mount the SUTFMR in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The three-foot power cord with L6-30P plug connects to a compatible AC outlet.
Spécifications techniques
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V |
| Technical Information | |
| Power Rating | 5 kVA |
| Input Receptacle Type | NEMA L6-30P |
| Output Receptacle Detail | 18 x NEMA 5-20R |
| Output Receptacle Type | NEMA 5-20R |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | TrippLite UPS Systems:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 95 lb (43090 g) |
| Form Factor | Tower/Rack Mountable |
| Rack Height | 3U |
| Height | 5.10" (129.54 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 25.40" (645.16 mm) |
| General Information | |
| Product Type | Step Down Transformer |
| Manufacturer Part Number | SUTFMR |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | SUTFMR |
| Product Name | SUTFMR Step Down Transformer |
| Brand Name | Tripp Lite by Eaton |
