À propos du produit

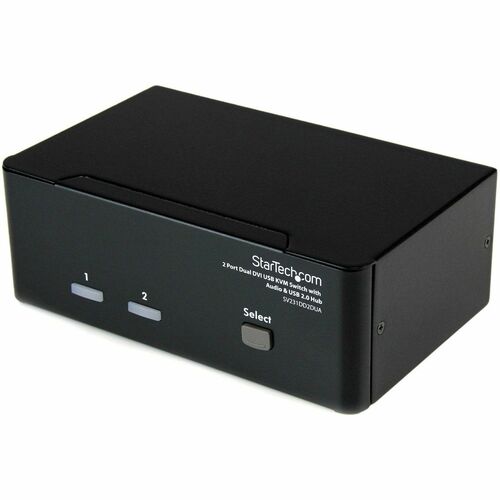

The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
More from the Manufacturer

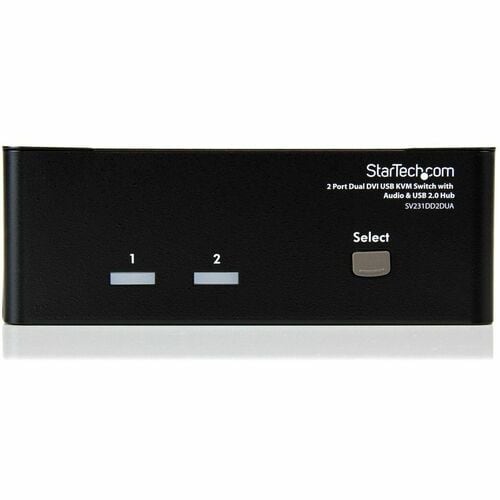

- Front panel push-buttons and Hot-key functions for easy switching
- Supports resolutions up to 1920x1200 (DVI-Digital)
- USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
- Audible tone confirms port switching
- Combined or independent switching of audio ports
- EDID retention - eliminates hassle when switching between computers as the KVM "remembers" monitor settings
- Supports all USB-capable operating systems (Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, etc.)
- TMDS compliant to support DDC2B emulation and HDCP for digital contents protection
- Status LED display for easy port status monitoring
Spécifications techniques
| Technical Information | |
| Number of Computers Supported | 2 |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Graphic Mode | QXGA |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Voltage Range | 110V AC to 240V AC |

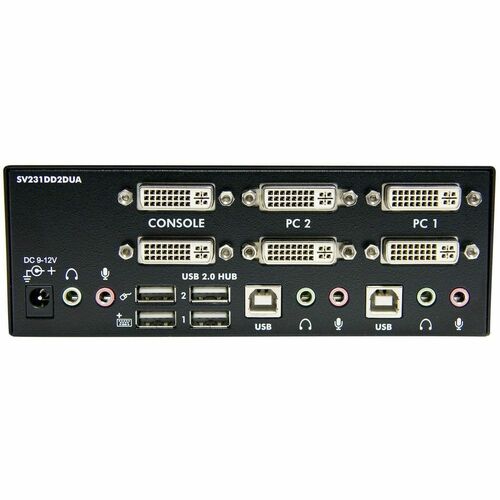

| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Number of USB Ports | 6 |
| Number of DVI Ports | 6 |
| Miscellaneous | |
| Additional Information |
|

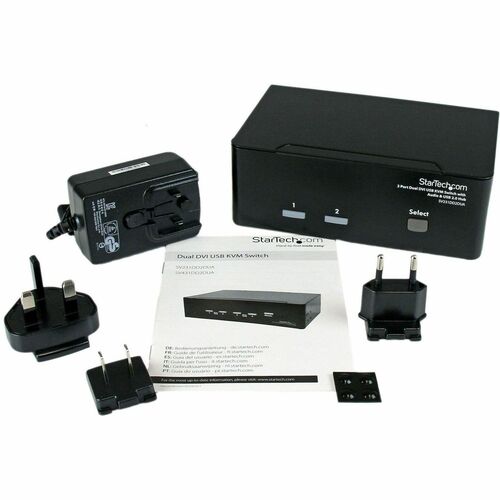

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV231DD2DUA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 2 Port Dual DVI USB KVM Switch with Audio & USB Hub |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 1.72 lb (779.61 g) |
| Form Factor | Desktop |
| Height | 2.20" (55.88 mm) |
| Width | 6.30" (160.02 mm) |
| Depth | 3.90" (99.06 mm) |
| Product Color | Black |
| Color Family | Black |
