À propos du produit
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

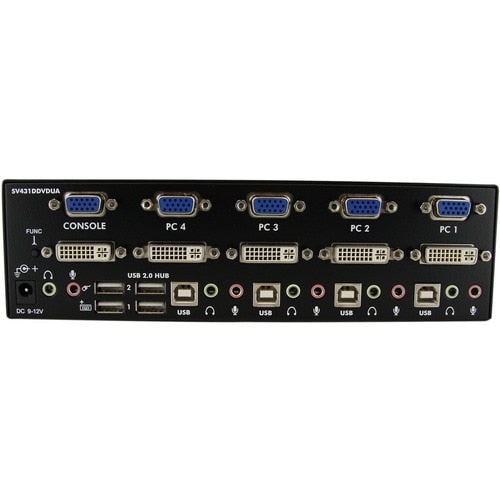

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.
More from the Manufacturer

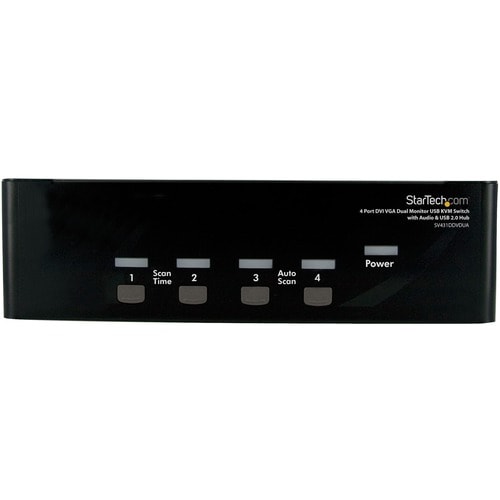

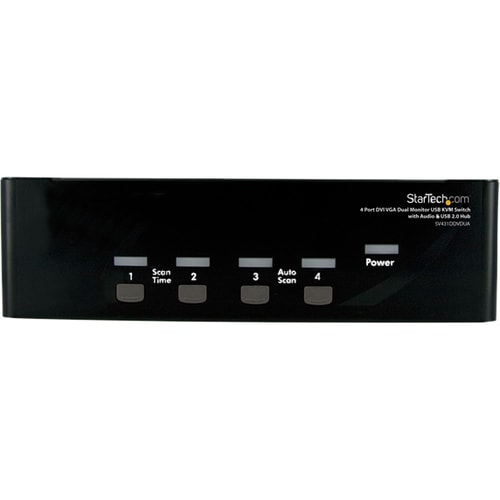

- Direct channel selection and operation using front panel push-button or keyboard hotkeys
- Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440; Recommended resolution is 1920 x 1200
- OS independent (no drivers or software required)
- Independent or simultaneous audio switching
- Full support for plug-n-play peripherals
- Rugged, all-metal chassis for use in harsh environments
- Status LED display for easy port status monitoring
- USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between up to two computers
- Tone indicator for computer switching
- Selectable time intervals for auto scan
Spécifications techniques
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1440 |
| Graphic Mode | WUXGA |
| SVGA | |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 8 |
| Number of VGA Ports | 5 |
| Number of DVI Ports | 5 |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV431DDVDUA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 2.40" (60.96 mm) |
| Width | 8.70" (220.98 mm) |
| Depth | 5.10" (129.54 mm) |
| Product Color | Black |
| Color Family | Black |
