À propos du produit
STP-Link's Omada Stackable L3 switches provide a wide range of switches, from Gigabit RJ45 ports to 25 Gbps SFP28 slots. They can be used at the core layer, aggregation layer, or access layer of large enterprise and campus networks. The switches include optional PoE+ support, highly scalable Layer 3 routing, and dual power supplies for mission-critical networks
Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network--all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Hassle-Free Centralized Cloud Management
100% centralized cloud management of the whole network from different sites--all controlled from a single interface anywhere, anytime.
Assign Different Management Roles
Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.
Easy and Intelligent Network Monitoring
Comprehensive Protection for the Whole Network The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connection at a glance.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Stack port provides an easy and hassle-free way to extend your office network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| Reliability | |
| MTBF | 724732 Hour |
| Technical Information | |
| Features | Hot-swappable |
| Miscellaneous | |
| Application/Usage | Network |
| Enterprise | |
| Campus | |
| I/O Expansions | |
| Expansion Slot Type | SFP28 |
| SFP+ | |
| Number of SFP+ Slots | 26 |
| Total Number of Expansion Slots | 32.0 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 26 x 10 Gigabit Ethernet Expansion Slot |
| 6 x 25 Gigabit Ethernet Expansion Slot | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 14.96" (380 mm) |
| Media & Performance | |
| Network Technology | 25GBase-X |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 86.70 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SX6632YF |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | SX6632YF |

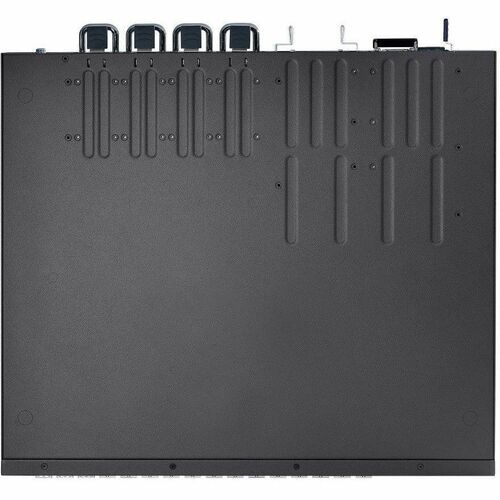

| Product Name | Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots |
| Product Line | Omada |
| Brand Name | TP-Link |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3x |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1s | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1ab | |
| IEEE 802.3ad | |
| IEEE 802.3ah |
