À propos du produit
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 2 years repair or replace |
| Interfaces/Ports | |

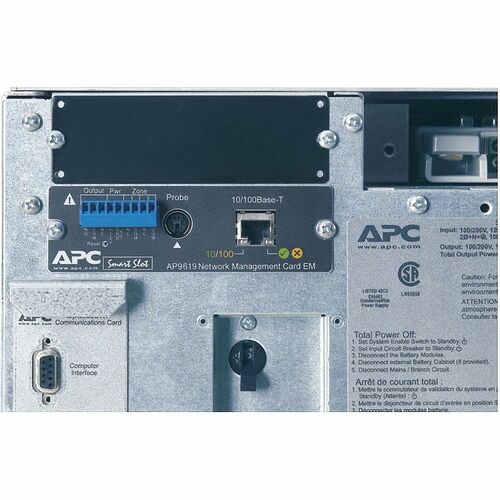

| Modular Slots | 1 x SmartSlot |
| Serial Port | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Typical Battery Recharge Time | 3 Hour |
| Management | |
| Bypass Switch | External (Optional) |
| Automatic | |
| Internal | |
| Manual | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Input Current | 75 A |
| Waveform Type | Sine Wave |
| Load Capacity (VA) | 16 kVA |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SYA16K16RMP |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

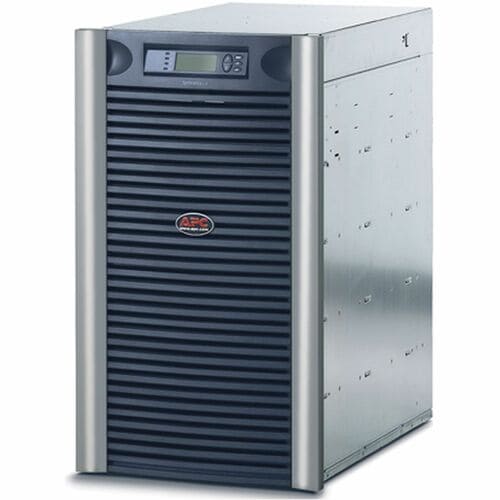

| Product Name | Symmetra LX 16kVA Rack-Mountable UPS |
| Product Line | Symmetra |
| Product Series | LX |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 4-wire |
| Receptacle Type | NEMA L14-30R |
| NEMA L5-20R | |
| Hard Wire 4-wire (2PH+N+G) | |

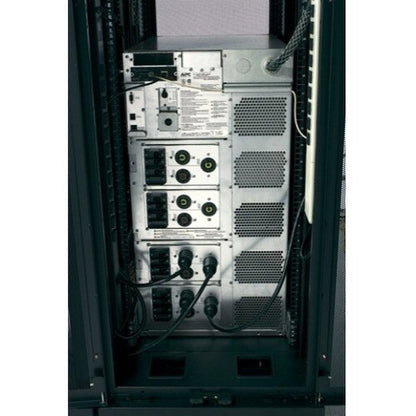

| Number of Battery & Surge Outlets | 13 |

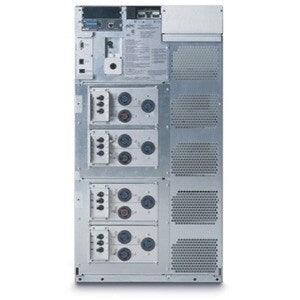

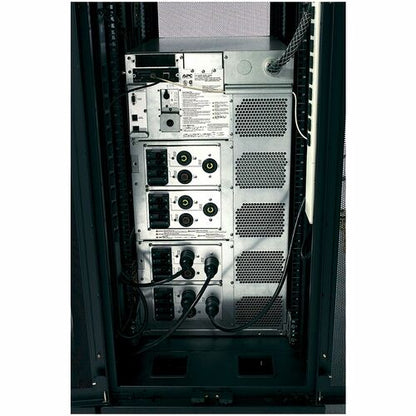

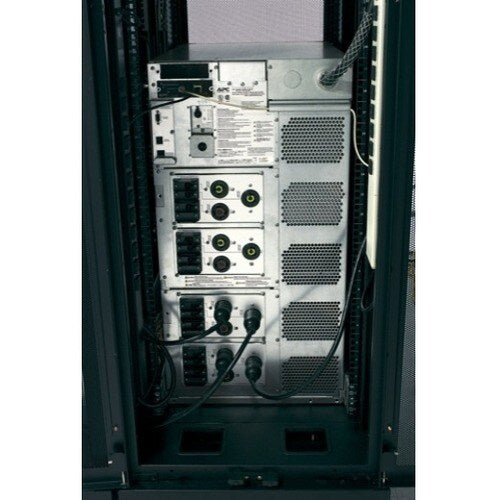

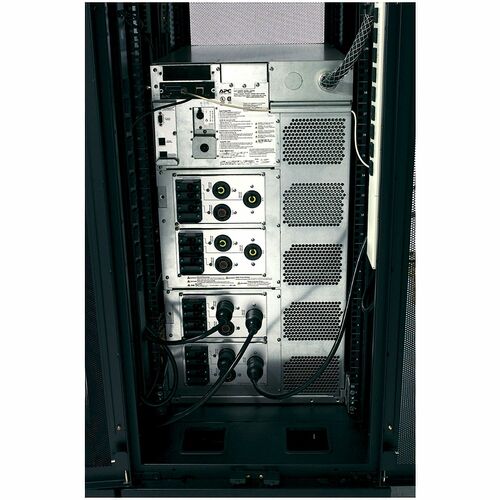

| Receptacle Detail | 4 x NEMA L14-30R |
| 8 x NEMA L5-20R | |
| 1 x Hard Wire 4-wire (2PH+N+G) | |
| Physical Characteristics | |
| Weight (Approximate) | 632.33 lb (286820.06 g) |
| Form Factor | Rack-mountable |
| Rack Height | 19U |
| Height | 32.91" (836 mm) |
| Width | 18.58" (472 mm) |
| Depth | 27.09" (688 mm) |
| Product Color | Black |
| Silver | |
| Color Family | Dual Color |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | CSA |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA16K16RMP_ROHS_DECLARATION&p_FileName=SYA16K16RMPKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036067&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036067&lang=en-us |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
