À propos du produit
L'onduleur monophasé à haute disponibilité est doté d'une protection d'alimentation en ligne à double conversion redondante et évolutive
Spécifications techniques
| Interfaces/Ports | |
| Modular Slots | 1 x SmartSlot |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 60 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 27.70 Minute |
| Backup/Run Time (Full Load) | 11.90 Minute |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Typical Battery Recharge Time | 4 Hour |
| Management | |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| Alarm | Configurable Delay |
| Low Battery | |
| On Battery | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SYH2K6RMT-P1 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

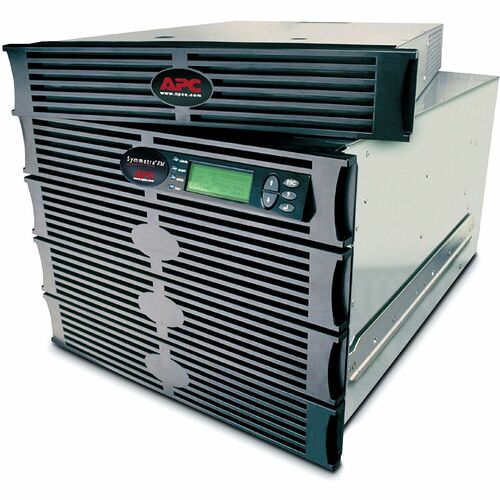

| Product Name | Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer |
| Product Line | Symmetra |
| Brand Name | APC by Schneider Electric |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| 120 V AC | |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 2 kVA |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Hard Wire 3-wire | |
| Cord Length | 10 ft (3048 mm) |
| Receptacle Type | NEMA L6-30P 30A |
| Number of Battery & Surge Outlets | 14 |
| Receptacle Detail | 2 x NEMA L6-20R |
| 12 x NEMA 5-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 259.55 lb (117729.90 g) |
| Form Factor | Rack-mountable |
| Rack Height | 10U |
| Height | 17.52" (445 mm) |
| Width | 19.02" (483 mm) |
| Depth | 28.74" (730 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards | CSA |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH2K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH2K6RMT-P1KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036251&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036251&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
