À propos du produit
L'onduleur monophasé à haute disponibilité est doté d'une protection d'alimentation en ligne à double conversion redondante et évolutive
Spécifications techniques
| Interfaces/Ports | |
| Modular Slots | 1 x SmartSlot |
| Warranty | |
| Additional Warranty Information | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
| Environmental Conditions | |
| Thermal Dissipation | 1771 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 29.50 Minute |
| Backup/Run Time (Full Load) | 12.40 Minute |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Typical Battery Recharge Time | 4 Hour |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 6 kVA |
| Management | |
| Bypass Switch | Manual |
| Automatic | |
| Emergency Power OFF | Yes |
| Network Management | SNMP Manageable |
| Alarm | On Battery |
| Low Battery | |
| Configurable Delay | |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SYH6K6RMT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

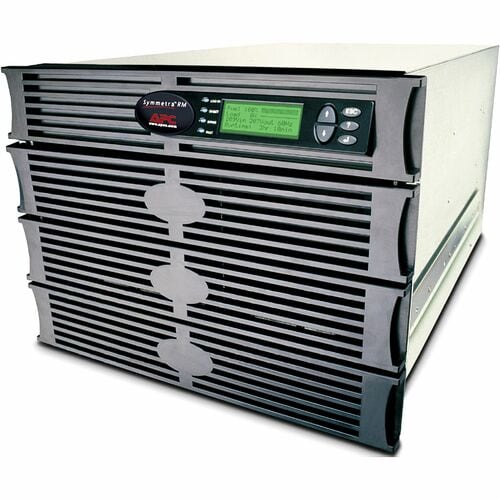

| Product Name | Symmetra RM 6kVA Scalable to 6kVA N+1 Rack-mountable UPS |
| Product Line | Symmetra |
| Product Series | RM |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | Hard Wire 3-wire |
| NEMA L6-30P | |
| Cord Length | 10 ft (3048 mm) |
| Receptacle Type | NEMA L6-30P 30A |
| Number of Battery & Surge Outlets | 3 |
| Receptacle Detail | 2 x NEMA L6-20R |
| 1 x NEMA L6-30R | |
| Physical Characteristics | |
| Weight (Approximate) | 294.63 lb (133641.92 g) |
| Form Factor | Rack-mountable |
| Rack Height | 8U |
| Height | 14.02" (356 mm) |
| Width | 19.02" (483 mm) |
| Depth | 28.74" (730 mm) |
| Product Color | Black |
| Color Family | Black |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards | CSA |
| Environmentally Friendly | Yes |
| For Country/Region | United States |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH6K6RMT_ROHS_DECLARATION&p_FileName=SYH6K6RMTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036277&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036277&lang=en-us |
| REACH free of SVHC | No |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
