À propos du produit

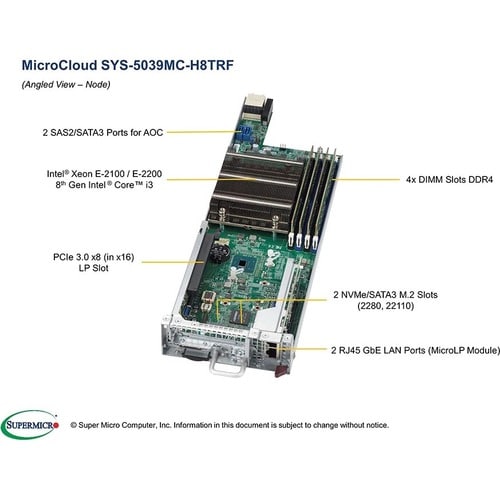

The Supermicro MicroCloud modular server system provides 12 or 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 29.5" or 23" deep. These cable-free, hot-pluggable server nodes operate independently. Each node is powered by an Intel® Xeon® E-2100 processor, and provides up to 64GB of ECC DDR4 2666MHz UDIMM memory, available for PCI-E 3.0 x8 expansion slot for low profile add-on card, and SATA 3.0 hard disk drives.
- Cloud Computing
- Web Cache
- Web Hosting, VM
- Social Networking
- Corporate-WINS, DNS, Print, Login
Spécifications techniques
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Interfaces/Ports | |
| Number of SATA Interfaces | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of PCI Express x4 Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 4 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2 kW |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | SYS-5039MC-H8TRF |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | 5039MC-H8TRF |
| Product Name | SuperServer SYS-5039MC-H8TRF (Black) |
| Product Line | SuperServer |
| Brand Name | Supermicro |
| Physical Characteristics | |
| Weight (Approximate) | 62.19 lb (28210 g) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.21" (132.33 mm) |
| Width | 17.26" (438.40 mm) |
| Depth | 23.20" (589.28 mm) |
| Product Color | Black |
| Color Family | Black |
| Processor | |
| Processor Supported | Xeon |
| Pentium | |
| Celeron | |
| Core i3 | |
| Processor Socket | Socket H4 LGA-1151 |
| 64-bit Processing | Yes |
| Number of Nodes | 8 |
| Number of Processors Supported | 1 |
