À propos du produit
The Supermicro WIO serverboard product family offers a range of new generation X11 motherboards which are designed to deliver a wide range of I/O options for accelerated computing. Users can optimize the storage and networking alternatives to accelerate performance, increase efficiency and find the perfect fit for their applications. In addition to enabling customizable configurations and optimization for multiple application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

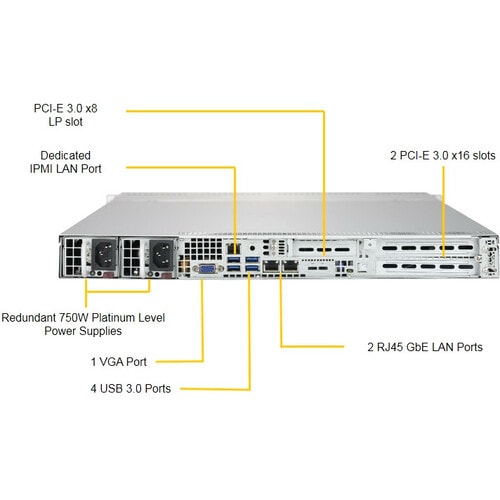

The Supermicro WIO SuperServer® product family supports up to: 1.5TB ECC 3DS LRDIMM or RDIMM DDR4-2666MHz memory in 12 DIMM slots, 3/6 Add-on Cards in 1U/2U, 10 SATA 3.0 (6Gbps) ports with Intel® C620 controller, hot-swap 2.5" or 3.5" drive bays, SATA3 and NVMe hybrid ports, optional NVMe drives, LAN options up to 2x 10GBase-T or 2 GbE ports, redundant Platinum Level (95%) power supplies, integrated IPMI 2.0 with KVM over dedicated LAN, and dual or single Intel® Xeon® Scalable Processor Family up to 28 cores and 205W TDP.
Supermicro WIO serverboards are optimized for general purpose, ERP/MRP, and network and security appliance applications and are compatible with the following Supermicro chassis: SC113TQ, SC116TQ, SC213A, SC825TQ, and SC815TQ.
- Provides 4 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Serial ATA/600 interface provides quick data transfer and greater throughput
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
Spécifications techniques
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Interfaces/Ports | |
| Number of SATA Interfaces | 4 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Memory | |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 12 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 750 W |
| Processor | |
| Processor Supported | Xeon |
| Processor Socket | Socket P LGA-3647 |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of Expansion Slots | 4 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 23.50" (596.90 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | SYS-6019P-WTR |
| Manufacturer Website Address | http://www.supermicro.com |
| Manufacturer | Supermicro Computer, Inc |
| Product Model | 6019P-WTR |
| Product Name | SuperServer 6019P-WTR (Black) |
| Product Line | SuperServer |
| Brand Name | Supermicro |
