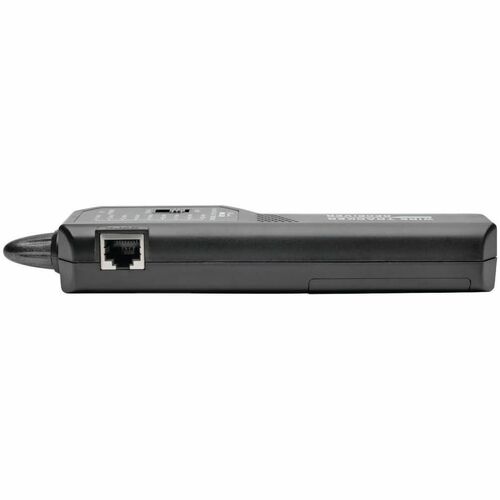

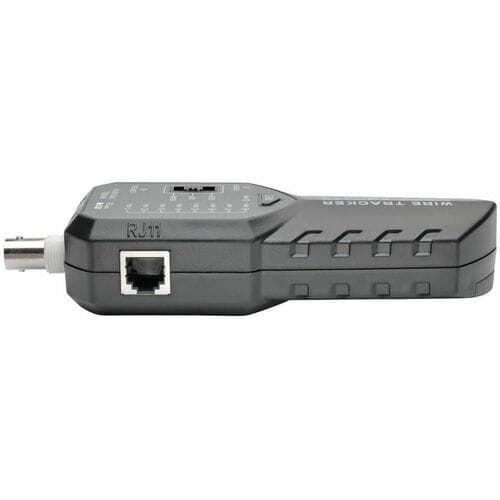

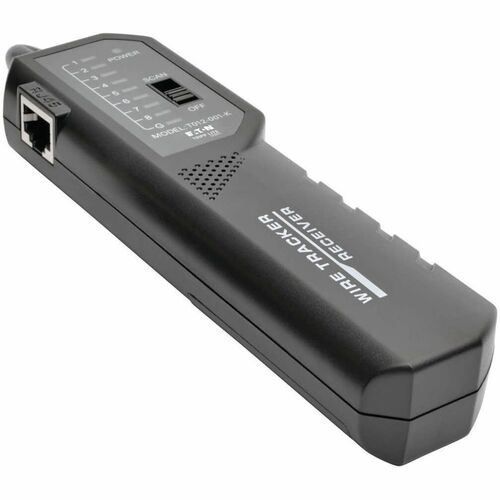

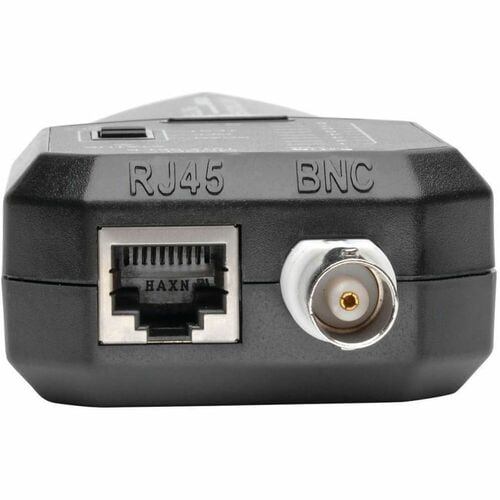

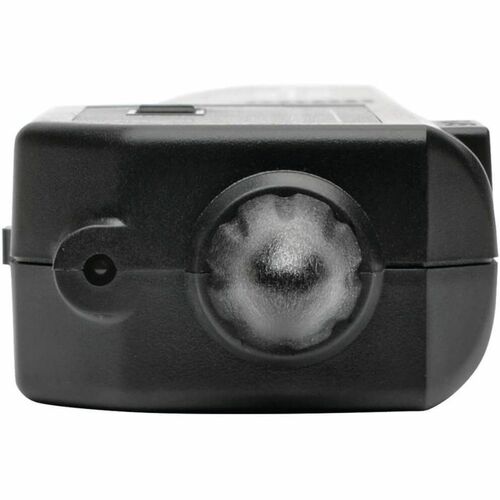

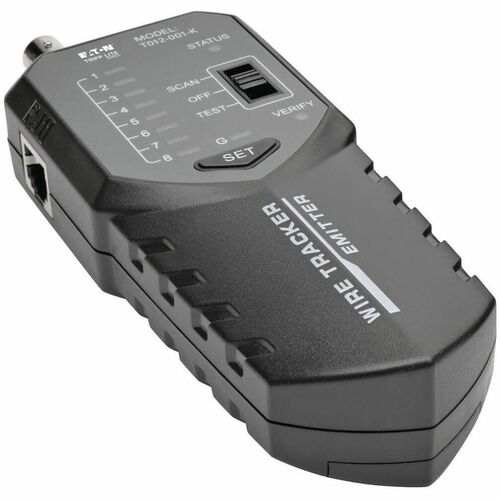

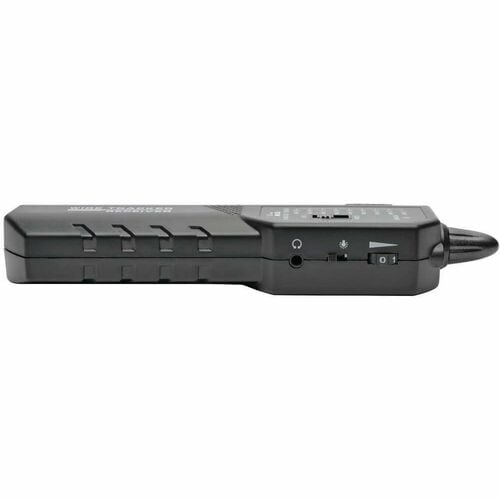

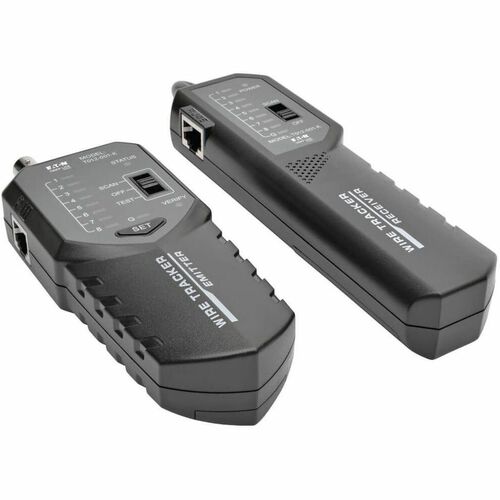

The T012-001-K Multi-Function Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. It allows you to track cable, find a short or breakage in non-powered wires, and perform wire mapping on RJ45 cables, detecting shorts and open wires. Powered by included 9-volt batteries in the main tester and remote probe unit, the T012-001-K can find an RJ11, RJ45 or BNC cable nestled within a group of cables. The probe unit's LED flashlight is handy for working in dark areas. Included headphones help you work in noisy environments. An adjustable volume button lets you fine-tune the tone generator.
- Find an RJ11, RJ45 or BNC cable among group of cables
- Find a short or breakage in non-powered wires
- Perform wire mapping on RJ45 cables
- LED flashlight on remote probe unit
- Included headphones for use in noisy areas
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Battery Size Supported | 9V |
| Number of Batteries Supported | 2 |
| Battery Included | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Coaxial | |
| Twisted Pair | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Testing Device |
| Manufacturer Part Number | T012001K |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | T012-001-K |
| Product Name | T012-001-K Testing Device |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Device Function | Network Testing |
| LAN Cable Testing | |
| Coaxial Cable Testing | |
| Optical Power Testing | |
| Short Circuit Testing | |
| Cable Signal Testing | |
| Wiremap | |
| Open Circuit Testing | |
| Cable Tracing |
