À propos du produit

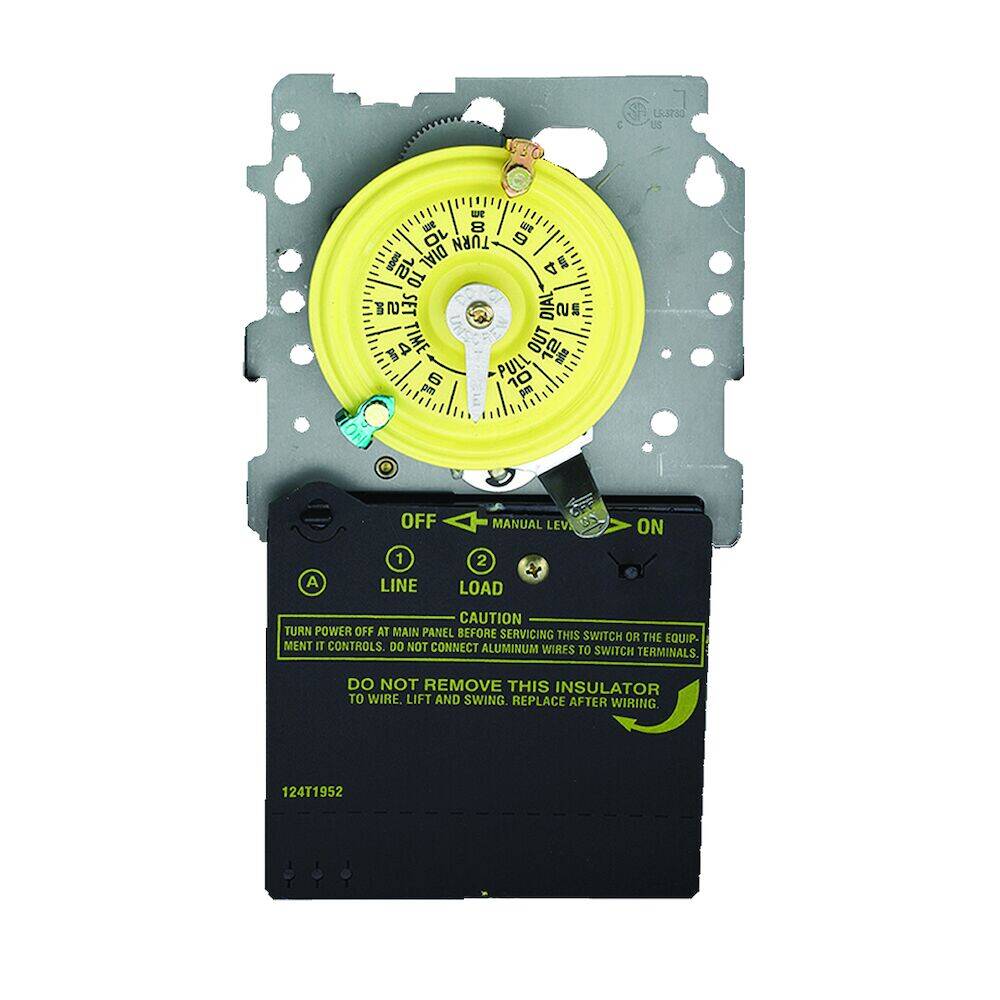

Intermatic Time Switch Mechanism, 125 V SPST Overview
Heavy-duty mechanical time switches to control a single load.
Intermatic Time Switch Mechanism Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Applications
Timing/Scheduling ON/OFF
Indoor Lighting Control
Intermatic Time Switch Mechanism Specifications
- General
- Model Number: T101M
- Description: 24-Hour 120V Mechanical Time Switch, SPST, Mechanism Only
- UPC Code: 078275000230
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 1-Year limited
- Control Specifications
- Minimum ON/OFF Times: 1 hour
- Maximum ON/OFF Operations: 12
- Skipper Wheel: Not Included
- Has Manual Override: Yes
- Application Compatibilities: LED; HID
- Mechanical Specifications
- Enclosure Type: N/A - Mechanism only
- Number of Trippers Included: 1 ON/1 OFF
- Dimensions
- Wire Size Min: #14 AWG
- Wire Size Max: #8 AWG
- Load Ratings
- Tungsten Range(s): 40 A, 120-240 VAC, 60 Hz
- Electronic Ballast: 16 A
- Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
- Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Motor: 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
- Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
- Inductive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
- Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
- Electrical Specifications
- Heater Control Output: 10 A, 250 VAC MAX, 60 Hz
- Input Voltage Range(s): 120 VAC, 60 Hz
- Number of Circuits: 1
- Switch Type: SPST
- Maximum Power Consumption (W): 3 W
- Packaging
- Unit Carton Dimensions (H x W x L) in: 8.25 x 3.5 x 5.5 in
- Environmental Specifications
- Temperature (operation): -40 °F to 130 °F / (-40 °C to 54 °C)
- Standards and Certifications
- UL Certification: cULus
- CSA Certification: cCSAus
- Other Certifications and Compatibilities: LED
- UL File Number: UL917
- CSA File Number: C22.2-177; LR3730
- California Proposition 65: Lead
Spécifications techniques
Intermatic Time Switch Mechanism, 125 V SPST Overview
Heavy-duty mechanical time switches to control a single load.
Intermatic Time Switch Mechanism Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Applications
Timing/Scheduling ON/OFF
Indoor Lighting Control
Intermatic Time Switch Mechanism Specifications
- General
- Model Number: T101M
- Description: 24-Hour 120V Mechanical Time Switch, SPST, Mechanism Only
- UPC Code: 078275000230
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 1-Year limited
- Control Specifications
- Minimum ON/OFF Times: 1 hour
- Maximum ON/OFF Operations: 12
- Skipper Wheel: Not Included
- Has Manual Override: Yes
- Application Compatibilities: LED; HID
- Mechanical Specifications
- Enclosure Type: N/A - Mechanism only
- Number of Trippers Included: 1 ON/1 OFF
- Dimensions
- Wire Size Min: #14 AWG
- Wire Size Max: #8 AWG
- Load Ratings
- Tungsten Range(s): 40 A, 120-240 VAC, 60 Hz
- Electronic Ballast: 16 A
- Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
- Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Motor: 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
- Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
- Inductive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
- Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
- Electrical Specifications
- Heater Control Output: 10 A, 250 VAC MAX, 60 Hz
- Input Voltage Range(s): 120 VAC, 60 Hz
- Number of Circuits: 1
- Switch Type: SPST
- Maximum Power Consumption (W): 3 W
- Packaging
- Unit Carton Dimensions (H x W x L) in: 8.25 x 3.5 x 5.5 in
- Environmental Specifications
- Temperature (operation): -40 °F to 130 °F / (-40 °C to 54 °C)
- Standards and Certifications
- UL Certification: cULus
- CSA Certification: cCSAus
- Other Certifications and Compatibilities: LED
- UL File Number: UL917
- CSA File Number: C22.2-177; LR3730
- California Proposition 65: Lead
