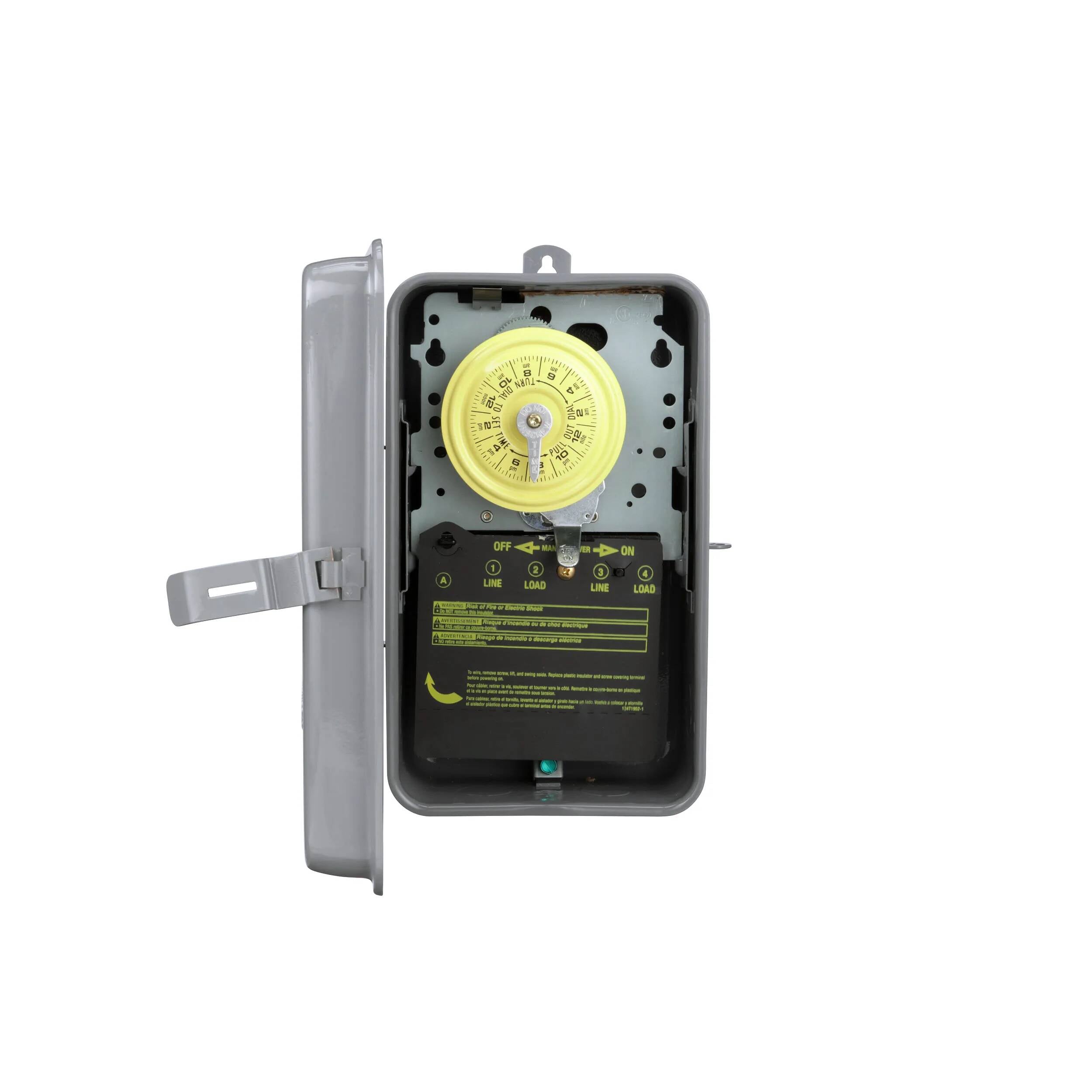

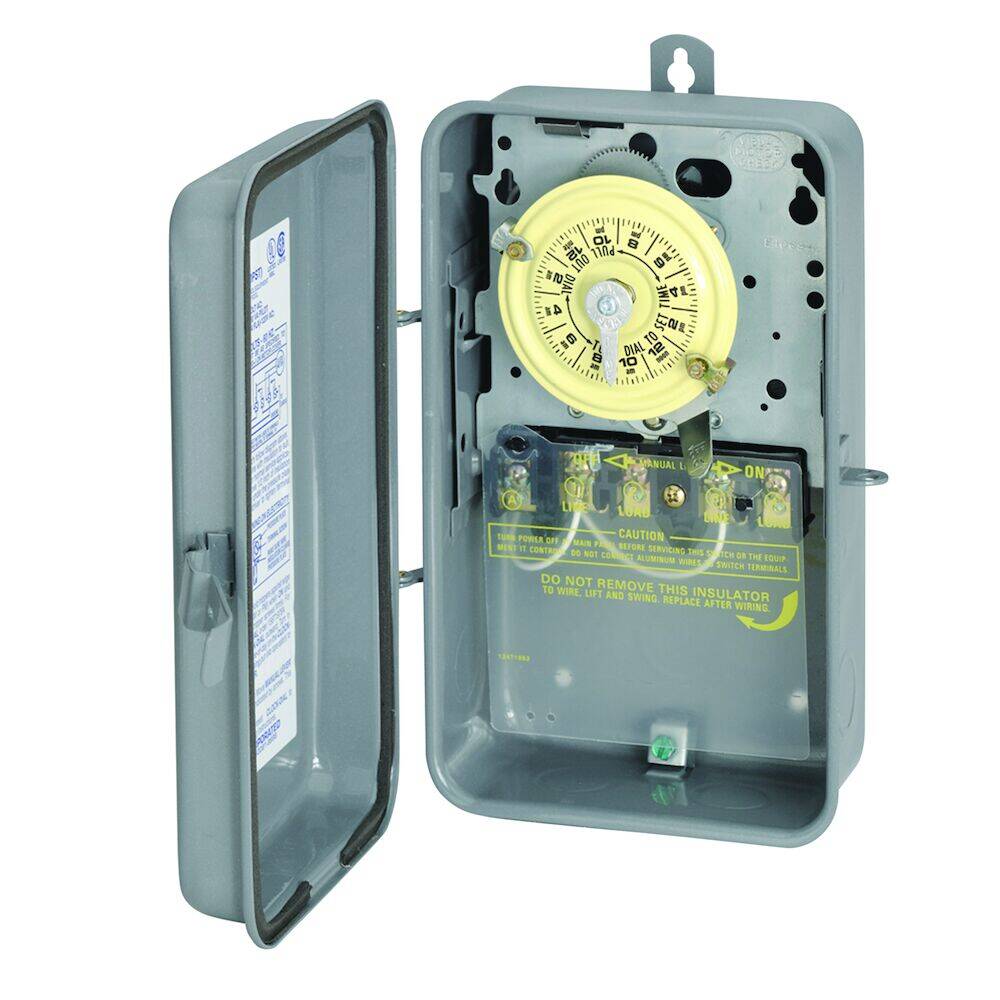

Intermatic NEMA 3R - Steel Case 208-277 V DPST, Gray Case Overview
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Intermatic NEMA 3R - Steel Case Features
- Direct 24-hour control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
Applications
- Timing/Scheduling ON/OFF
- Indoor Lighting Control
- Outdoor Lighting Control
Intermatic NEMA 3R - Steel Case Specifications
- General
- Model Number: T104R
- Description: 24-Hour Mechanical Time Switch, 208-277 VAC, 60Hz, DPST, Indoor/Outdoor Metal Enclosure, 1 Hour Interval
- UPC Code: 078275000124
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 1-Year limited
- Control Specifications
- Minimum ON/OFF Times: 1 hour
- Maximum ON/OFF Operations: 12
- Skipper Wheel: Not Included
- Timing Interval: 1 hr
- Operation Mode: 24 hour
- Has Manual Override: Yes
- Application Compatibilities: LED; HID
- Mechanical Specifications
- Enclosure Type: Indoor/outdoor type 3R metal
- Number of Trippers Included: 1 ON/1 OFF
- Dimensions
- Product Dimensions (H x W x D) in: 10 1/8 x 6 1/2 x 3 5/8 in
- Wire Size Min: #14 AWG
- Wire Size Max: #8 AWG
- Knockout Dimensions Bottom: (2) combination 1/2"" - 3/4
- Knockout Dimensions Back: (1) combination 1/2"" - 3/4
- Load Ratings
- Tungsten Range(s): 40 A, 120-277 VAC, 60 Hz
- Electronic Ballast: 16 A
- Electronic Ballast Load Ratings: Ranges 16 A, 120-277 VAC
- Inductive: 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Motor: 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
- Resistive Load Ratings Ranges: 40 A, 120-480 VAC, 60 Hz
- Inductive Load Ratings Ranges: 40 A, 120-277 VAC, 60 Hz
- Pilot Duty Load Ratings Ranges: 1000 VA, 120-277 VAC, 60 Hz
- Electrical Specifications
- Wiring Option: Terminals
- Input Voltage Range(s): 208-277 VAC, 60 Hz
- Number of Circuits: 1
- Switch Type: DPST
- Maximum Power Consumption (W): 3 W
- Packaging
- Unit Carton Dimensions (H x W x L) in: 4 x 7.06 x 11.5 in
- Environmental Specifications
- Temperature (operation): -40 °F to 130 °F / (-40 °C to 54 °C)
- Standards and Certifications
- UL Certification: cULus
- CSA Certification: cCSAus
- Other Certifications and Compatibilities: LED
- UL File Number: UL917
- CSA File Number: C22.2; LR3730
- California Proposition 65: Lead
