À propos du produit

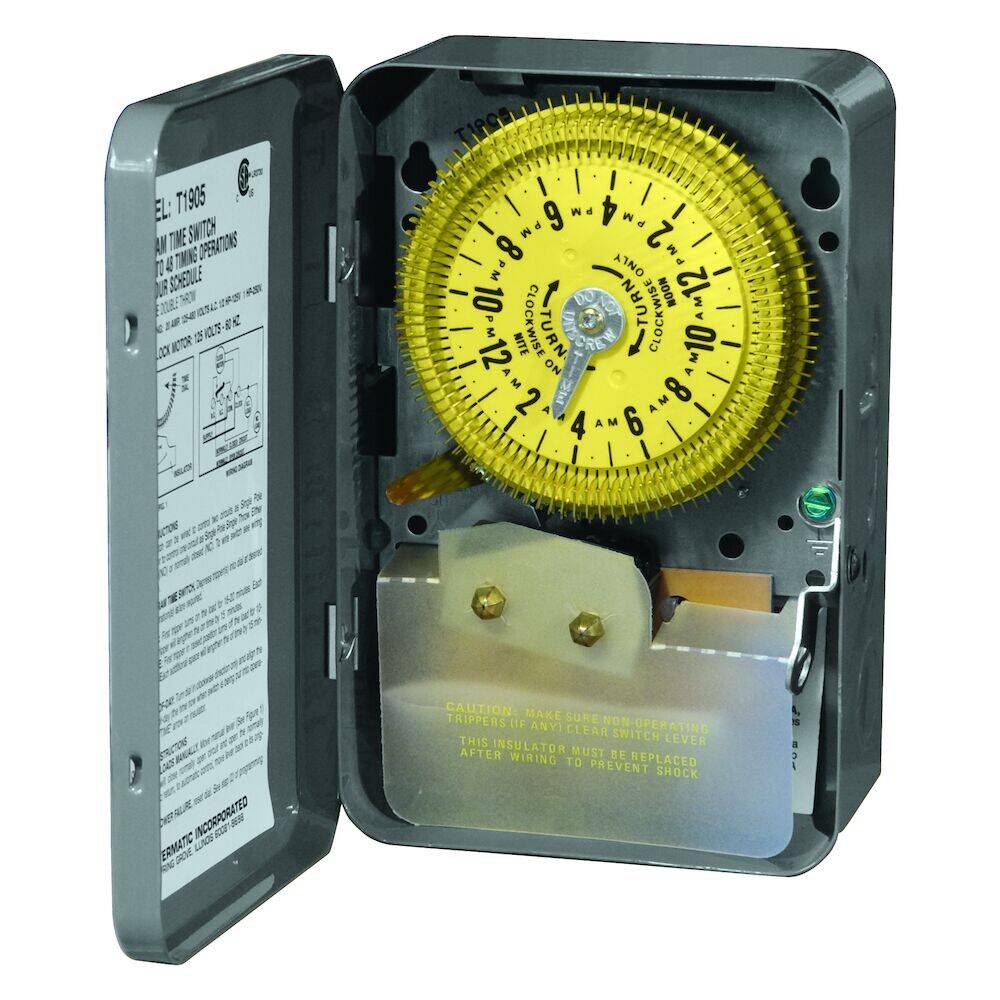

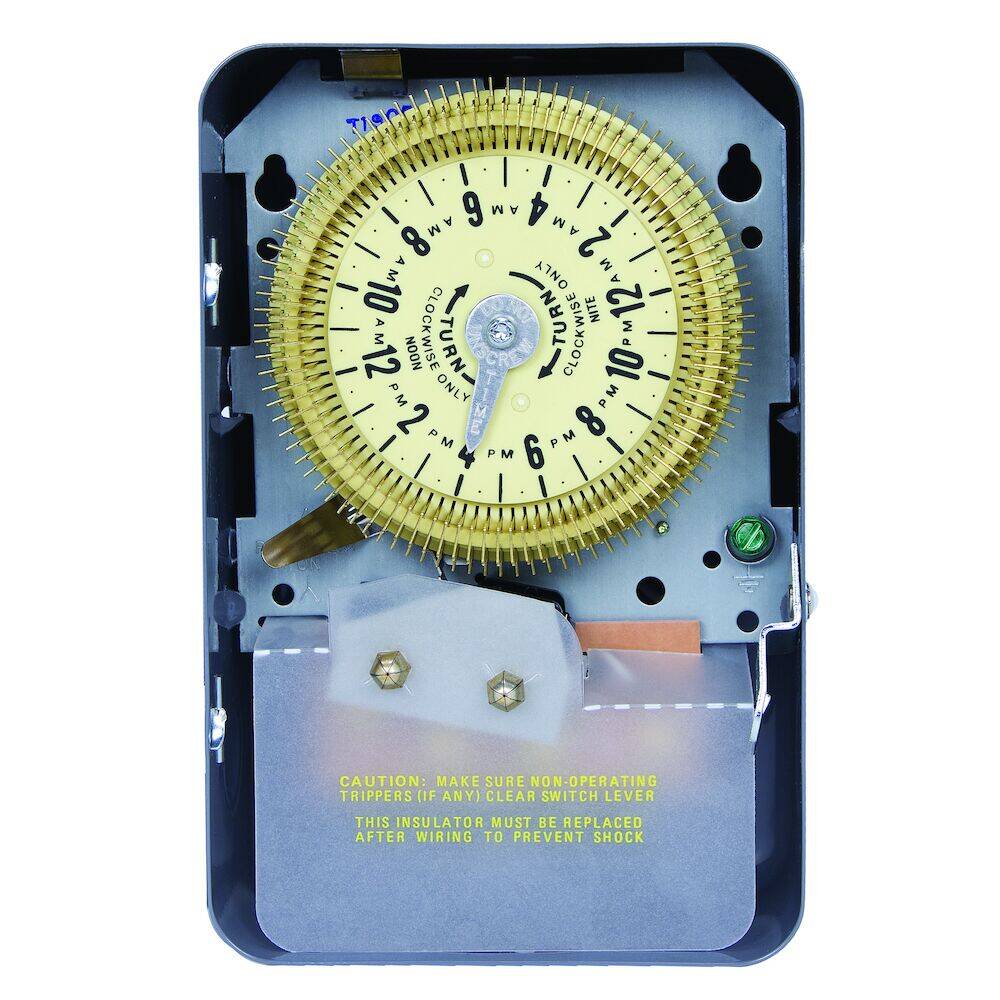

Intermatic 24-Hour Mechanical Time Switch, 125 VAC, 60Hz, SPDT, Indoor Enclosure Overview
This series of mechanical time switches offer more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.
Intermatic 24-Hour Mechanical Time Switch Features
- Provides up to 96 operations (48 ON/48 OFF) every 24 hours
- Models with skipper wheels allow for operations to be omitted on selected days of the week
- 15-minute intervals
- Captive trippers slide in and out of the dial for fast, accurate setting
Application
- Timing/Scheduling ON/OFF
- Indoor Lighting Control
Intermatic 24-Hour Mechanical Time Switch Specifications
- General
- Model Number: T1905
- Description: 24-Hour Mechanical Time Switch, 125 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 15 Minute Interval
- UPC Code: 078275191013
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 1-Year limited
- Control Specifications
- Minimum ON/OFF Times: 15 min
- Maximum ON/OFF Operations: 48
- Skipper Wheel: Not Included
- Operation Mode: 24 hour
- Has Manual Override: Yes
- Mechanical Specifications
- Enclosure Type: Indoor type 1 metal
- Number of Trippers Included: 96
- Dimensions
- Product Dimensions (H x W x D) in: 7.875 x 5.125 x 3.4375 in
- Wire Size Min: #14 AWG
- Wire Size Max: #12 AWG
- Load Ratings
- Motor: 1/2 HP, 125 VAC, 60 Hz;1 HP, 250 VAC, 60 Hz
- Resistive Load Ratings Ranges: 20 A, 125-480 VAC, 60 Hz
- Electrical Specifications
- Wiring Option: Terminals
- Input Voltage Range(s): 125 VAC, 60 Hz
- Number of Circuits: 1
- Switch Type: SPDT
- Maximum Power Consumption (W): 3 W
- Packaging
- Unit Carton Dimensions (H x W x L) in: 8.25 x 3.5 x 5.5 in
- Environmental Specifications
- Temperature (operation): -40 °F to 130 °F / (-40 °C to 54 °C)
- Standards and Certifications
- CSA Certification: cCSAus
- CSA File Number: C22.2-177; LR3730
- California Proposition 65: Lead
