À propos du produit

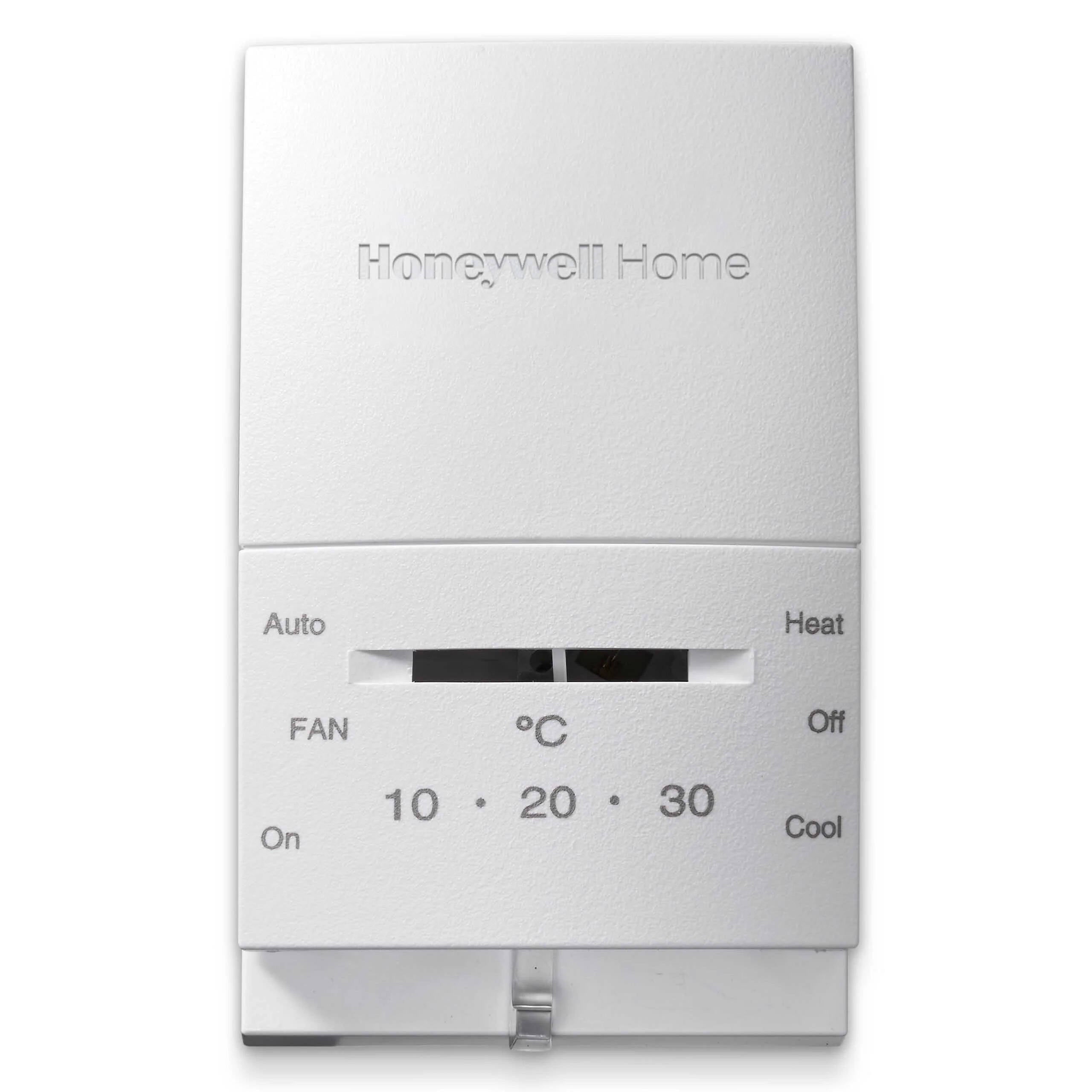

The Honeywell T834N1010 is a line-voltage thermostat designed for controlling electric heating systems, including baseboard heaters, convectors, and fan-forced heaters. It is a non-programmable thermostat, offering simple and reliable temperature control from 7 to 32 degrees celcius for residential and light commercial applications.
T834N1010 Specs and Features
- Application: 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
- Dimensions (in.): 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
- Dimensions (mm): 121 mm high x 73 mm wide x 35 mm deep
- Mounting: Vertical
- Electrical Rating: 20 to 30 VAC
- Stages: 1 Heat/1 Cool
- Switch Positions (System): HEAT-OFF-COOL
- Switch Positions (Fan): AUTO-ON
- Color: White
- Sensor Element: Bimetal
- Accuracy (C): ±1 C
- Switching Action: SPDT
- Switch Type: Precision Snap Action
- Terminal Designations: R, Rc, W, Y, G, O, B
- Changeover: Manual
- Setting Temperature Range (C): 7 C to 32 C
- Cool Current: 0.02A to 1.0A running
- Heat Current: 0.02A to 1.0A running
Spécifications techniques
The Honeywell T834N1010 is a line-voltage thermostat designed for controlling electric heating systems, including baseboard heaters, convectors, and fan-forced heaters. It is a non-programmable thermostat, offering simple and reliable temperature control from 7 to 32 degrees celcius for residential and light commercial applications.
T834N1010 Specs and Features
- Application: 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
- Dimensions (in.): 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep
- Dimensions (mm): 121 mm high x 73 mm wide x 35 mm deep
- Mounting: Vertical
- Electrical Rating: 20 to 30 VAC
- Stages: 1 Heat/1 Cool
- Switch Positions (System): HEAT-OFF-COOL
- Switch Positions (Fan): AUTO-ON
- Color: White
- Sensor Element: Bimetal
- Accuracy (C): ±1 C
- Switching Action: SPDT
- Switch Type: Precision Snap Action
- Terminal Designations: R, Rc, W, Y, G, O, B
- Changeover: Manual
- Setting Temperature Range (C): 7 C to 32 C
- Cool Current: 0.02A to 1.0A running
- Heat Current: 0.02A to 1.0A running
