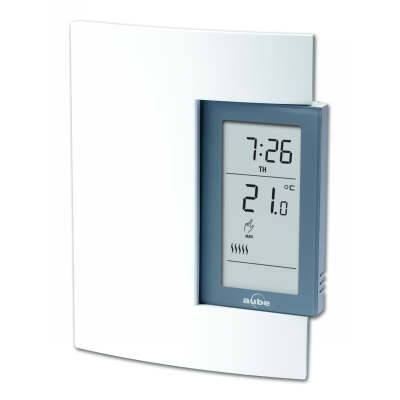

Honeywell Aube 7-day Programmable, Millivolts to 240V,5A RES. 2A IND Overview
This versatile thermostat controls systems from millivolts to 240 V and is also well-suited for hot water heating.
Honeywell Aube 7-day Features
- Advanced temperature control ensures total comfort by minimizing temperature swings
- Selectable cycles mean thermostats can be optimized for heating system
- Pump protection activates the pump for one minute every 24 hours to prevent seizure
- Convenient programming by removing faceplate from base
- Precise LCD shows room temperature in increments of 0.1 C or 0.1 F
- Low battery indicator gives 60-day warning to replace batteries
- Remote input enables change of temperature modes by phone (CT240 controller required)
- Compatible with electric heat applications using an electromechanical relay
Honeywell Aube 7-day Specifications
- Application: Heat/Cool Conventional systems
- Dimensions (in.): 4,9 in. X 3.8 in. X 1 in.
- Dimensions (mm): 127 mm X 97 mm X 26 mm
- Used With: Aube RC840 or RC840T Series Electromechanical Relays; Aube CT240 Telephone Controller
- Comments: CE Approved. Pump protection for hot water heating; Packaged in the box; Remote input for telephone controller
- Item Type: Product
- Mounting: Vertical
- Electrical Ratings: Maximum load: 5 A (resistive) @ 24 V, 120 V, 240 V, 2 A (inductive) @ 24 V, 120 V, 240 V
- Stages: 1 Heat
- Approvals, Underwriters Laboratories Inc.: Approved
- Operating Humidity Range (% RH): 0% to 95%, non-condensing
- Supply Voltage: 24 Vac; 120 Vac; 240 Vac
- Operating Temperature Range (F): 32 F to 122 F
- Operating Temperature Range (C): 0 C to 50 C
- Approvals, Canadian Underwriters Laboratories Inc.: Approved
- Power Method: 2 AA alkaline batteries
- Color: White
- Sensor Element: Thermistor
- Differential Temperature (F): ± 1 F
- Differential Temperature (C): ±0.5 C
- Switching Action: SPDT
- Switch Type: Relay
- Programmability: 7 Day program
- Terminal Designations: R, W, (X, C, optional remote input)
- Setting Temperature Range (F): 40 F to 85 F
- Setting Temperature Range (C): 5 C to 30 C
- Heat Current: 5 A (resistive), 2 A (inductive)
