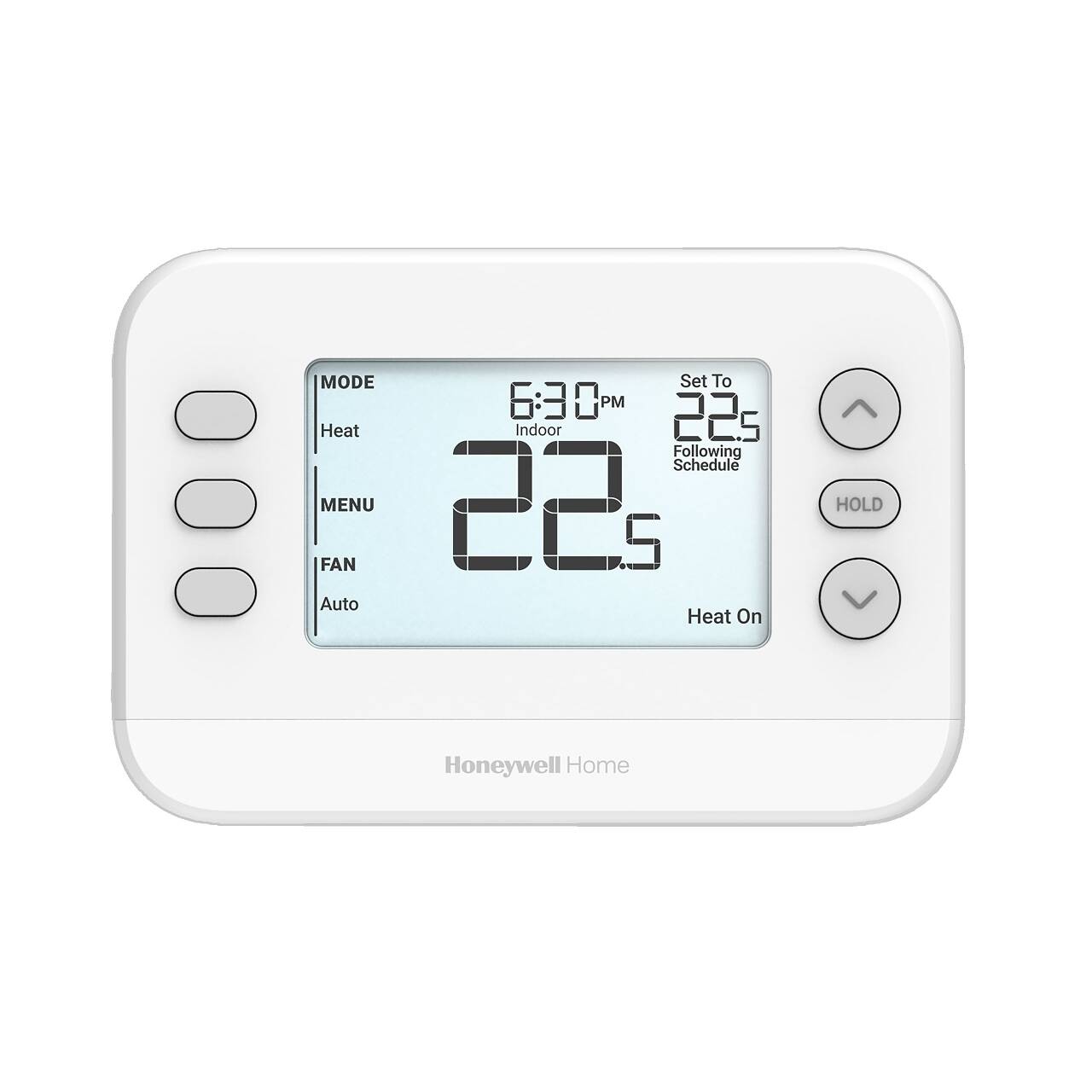

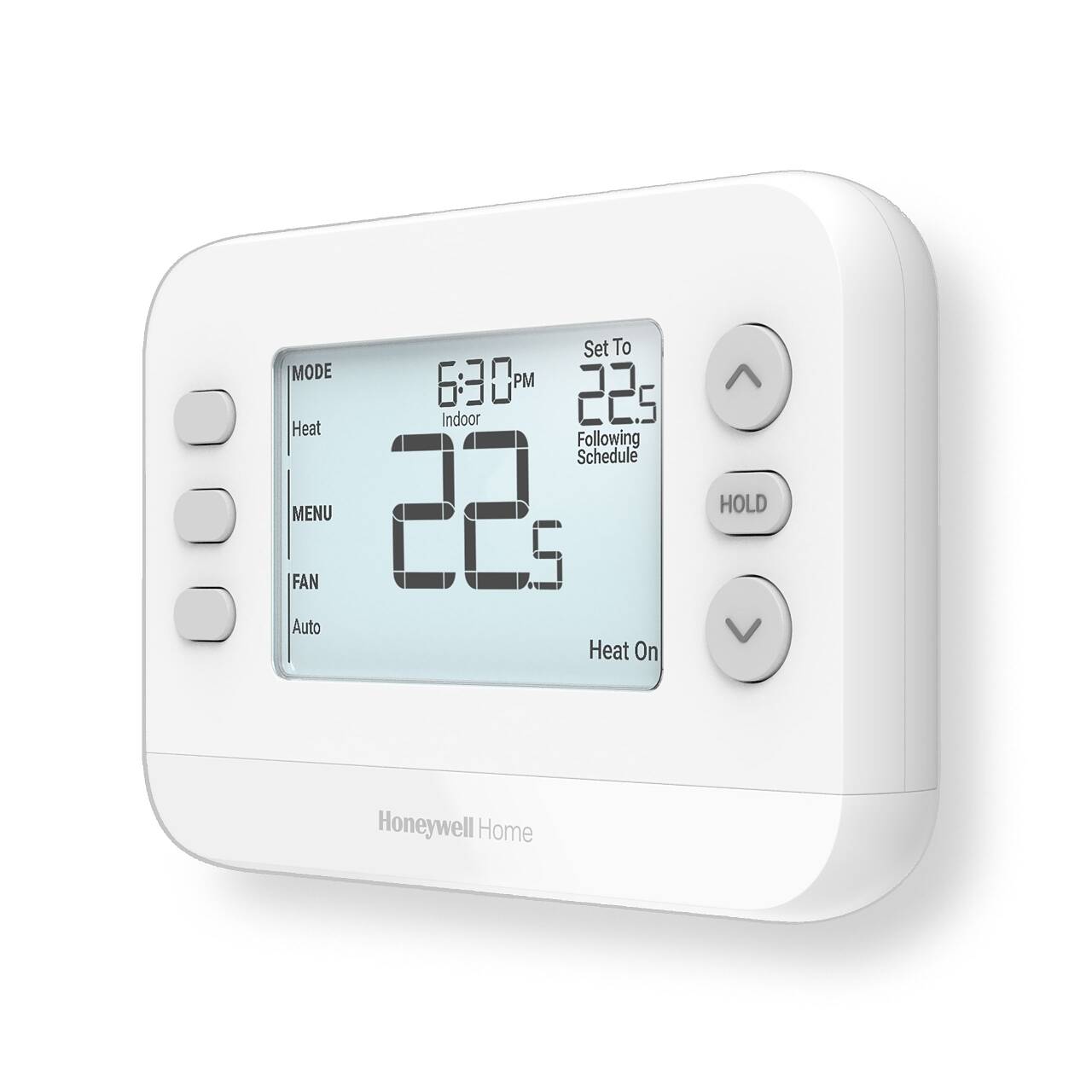

The Honeywell P200 FocusPRO Programmable Thermostat with 3 Heat and 2 Cool is a custom programmable, battery-powered/low-voltage thermostat with an LED display designed for multi-stage heat & cool systems: including up to 3H/2C Heat Pump systems, up to 2H/2C conventional systems; gas, oil, electric radiators; steam/radiant hot water systems, and heat pumps with Auxiliary Heat.
Built in 5-1-1, 5-2, 7-day and 1-week scheduling allows for easy automatic scheduling for low-tech users; and built-in low-battery alert and optional air filter replacement reminders optimize HVAC equipment uptime.
Powered by 24V low-voltage power supply or 2 AA batteries (included). Includes 5-year manufacturer’s warranty. Package includes thermostat, UWP wall plate, decorative cover plate with J-box adaptor, mounting hardware, AA batteries, and user manual.
Thermostat UWP mounting plate includes mounting hardware. Use optional cover plate with J-box adapter (also included with thermostat) to cover marks from the previous thermostat or mount to a J- box.
Works with Honeywell Outdoor Temperature sensors (sold separately)
TH2320U4006 Specs and Features
- Programmable 5-1-1, 5-2, 7-day and 1-week scheduling
- Temperature Setpoint Range:
- Heating: 0 °C to 32 °C (32 °F to 90 °F)
- Cooling: 10 °C to 37 °C (50 °F to 99 °F)
- Temperature Sensor Accuracy: ± 0.5 °C at 21.0 °C (1 °F at 70 °F)
- Display Info: Mode, Current Temperature, Set Temperature, Status Display, Fan
- Custom Options:
- Fan lockout after cool call option
- Heat and cool range settings
- Upstage timer for backup heat. Change filter reminder
- Custom display settings
- Alerts and Reminders: Battery Replacement, Heat Pump Failure, Filter Change
- Power method: Hardwired or Battery Operated; 24 volts to RC and C or 2 AA alkaline batteries (included)
- Terminal Designations: R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, and L/A
- Electrical Ratings:
- W Heating: 20-30 VAC @ 0.02-1.0 A / 750 MV
- W2 (Aux) Heating: 20-30 VAC @ 0.02-1.0 A
- E Emergency Heat: 20-30 VAC @ 0.02-0.5 A
- Y Compressor Stage 1: 20-30 VAC @ 0.02-1.0 A
- Y2 Compressor Stage 2: 20-30 VAC @ 0.02-1.0 A
- G Fan: 20-30 VAC @ 0.02-0.5 A
- O/B Changeover: 20-30 VAC @ 0.02-0.5 A
- L/A Input: 20-30 VAC @ 0.02-0.5 A
- Ambient Operating Temperature: 0 °C to 38.9 °C (32 °F to 102 °F)
- Relative Operating Humidity: 5% to 90% (non condensing)
- Dimensions: 5-1/8” W x 3-7/16” H x 1-3/16” D (130 mm W x 87 mm H x 29.5 mm D)
- 5 Year Manufacturer’s Warranty
Spécifications techniques
The Honeywell P200 FocusPRO Programmable Thermostat with 3 Heat and 2 Cool is a custom programmable, battery-powered/low-voltage thermostat with an LED display designed for multi-stage heat & cool systems: including up to 3H/2C Heat Pump systems, up to 2H/2C conventional systems; gas, oil, electric radiators; steam/radiant hot water systems, and heat pumps with Auxiliary Heat.
Built in 5-1-1, 5-2, 7-day and 1-week scheduling allows for easy automatic scheduling for low-tech users; and built-in low-battery alert and optional air filter replacement reminders optimize HVAC equipment uptime.
Powered by 24V low-voltage power supply or 2 AA batteries (included). Includes 5-year manufacturer’s warranty. Package includes thermostat, UWP wall plate, decorative cover plate with J-box adaptor, mounting hardware, AA batteries, and user manual.
Thermostat UWP mounting plate includes mounting hardware. Use optional cover plate with J-box adapter (also included with thermostat) to cover marks from the previous thermostat or mount to a J- box.
Works with Honeywell Outdoor Temperature sensors (sold separately)
TH2320U4006 Specs and Features
- Programmable 5-1-1, 5-2, 7-day and 1-week scheduling
- Temperature Setpoint Range:
- Heating: 0 °C to 32 °C (32 °F to 90 °F)
- Cooling: 10 °C to 37 °C (50 °F to 99 °F)
- Temperature Sensor Accuracy: ± 0.5 °C at 21.0 °C (1 °F at 70 °F)
- Display Info: Mode, Current Temperature, Set Temperature, Status Display, Fan
- Custom Options:
- Fan lockout after cool call option
- Heat and cool range settings
- Upstage timer for backup heat. Change filter reminder
- Custom display settings
- Alerts and Reminders: Battery Replacement, Heat Pump Failure, Filter Change
- Power method: Hardwired or Battery Operated; 24 volts to RC and C or 2 AA alkaline batteries (included)
- Terminal Designations: R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, and L/A
- Electrical Ratings:
- W Heating: 20-30 VAC @ 0.02-1.0 A / 750 MV
- W2 (Aux) Heating: 20-30 VAC @ 0.02-1.0 A
- E Emergency Heat: 20-30 VAC @ 0.02-0.5 A
- Y Compressor Stage 1: 20-30 VAC @ 0.02-1.0 A
- Y2 Compressor Stage 2: 20-30 VAC @ 0.02-1.0 A
- G Fan: 20-30 VAC @ 0.02-0.5 A
- O/B Changeover: 20-30 VAC @ 0.02-0.5 A
- L/A Input: 20-30 VAC @ 0.02-0.5 A
- Ambient Operating Temperature: 0 °C to 38.9 °C (32 °F to 102 °F)
- Relative Operating Humidity: 5% to 90% (non condensing)
- Dimensions: 5-1/8” W x 3-7/16” H x 1-3/16” D (130 mm W x 87 mm H x 29.5 mm D)
- 5 Year Manufacturer’s Warranty
