À propos du produit

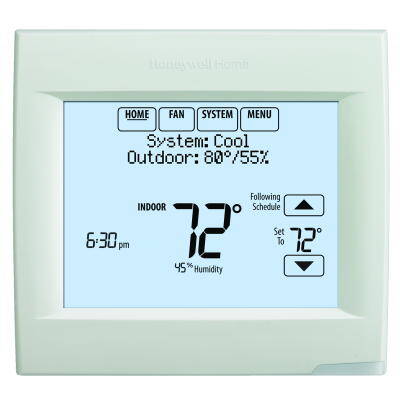

The Honeywell VisionPRO 8000 is a touch screen programmable electronic thermostat with RedLINK. It can be wired directly to the controlled equipment, or it can be used as a wireless device with a RedLINK equipment interface module or TrueZONE adapter.
This is a pro series thermostat requiring professional installation.
Honeywell TH8321R1001 Thermostat Features:
- Smart Schedule & interview based programming for fast easy setup
- Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK accessories
- Stages: Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module.
- Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
- Supply Voltage: 18 to 30 Vac or 750 mV
- 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling
- Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
- Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
- Operating Temperature Range (F): 32 F to 120 F
- Operating Temperature Range (C): 0 C to 48.9 C
- Power Method: Battery or Hardwired with C wire
- Color: Arctic White
- Programmability: 7 Day Program or Non-Programmable
- Terminal Designations: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
- Display Size: 10 sq in.
- Changeover: Auto or Manual
- Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
- Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
- Humidification Setting Range: Cooling: 40 to 80% RH. Heating: 10 to 60% RH.
- Dehumidification Setting Range: 40 to 80% RH.
- Dimensions: 118 mm. High, 126 mm. Wide, 29 mm. Deep
Spécifications techniques
The Honeywell VisionPRO 8000 is a touch screen programmable electronic thermostat with RedLINK. It can be wired directly to the controlled equipment, or it can be used as a wireless device with a RedLINK equipment interface module or TrueZONE adapter.
This is a pro series thermostat requiring professional installation.
Honeywell TH8321R1001 Thermostat Features:
- Smart Schedule & interview based programming for fast easy setup
- Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK accessories
- Stages: Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module.
- Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
- Supply Voltage: 18 to 30 Vac or 750 mV
- 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling
- Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
- Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
- Operating Temperature Range (F): 32 F to 120 F
- Operating Temperature Range (C): 0 C to 48.9 C
- Power Method: Battery or Hardwired with C wire
- Color: Arctic White
- Programmability: 7 Day Program or Non-Programmable
- Terminal Designations: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
- Display Size: 10 sq in.
- Changeover: Auto or Manual
- Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
- Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
- Humidification Setting Range: Cooling: 40 to 80% RH. Heating: 10 to 60% RH.
- Dehumidification Setting Range: 40 to 80% RH.
- Dimensions: 118 mm. High, 126 mm. Wide, 29 mm. Deep
