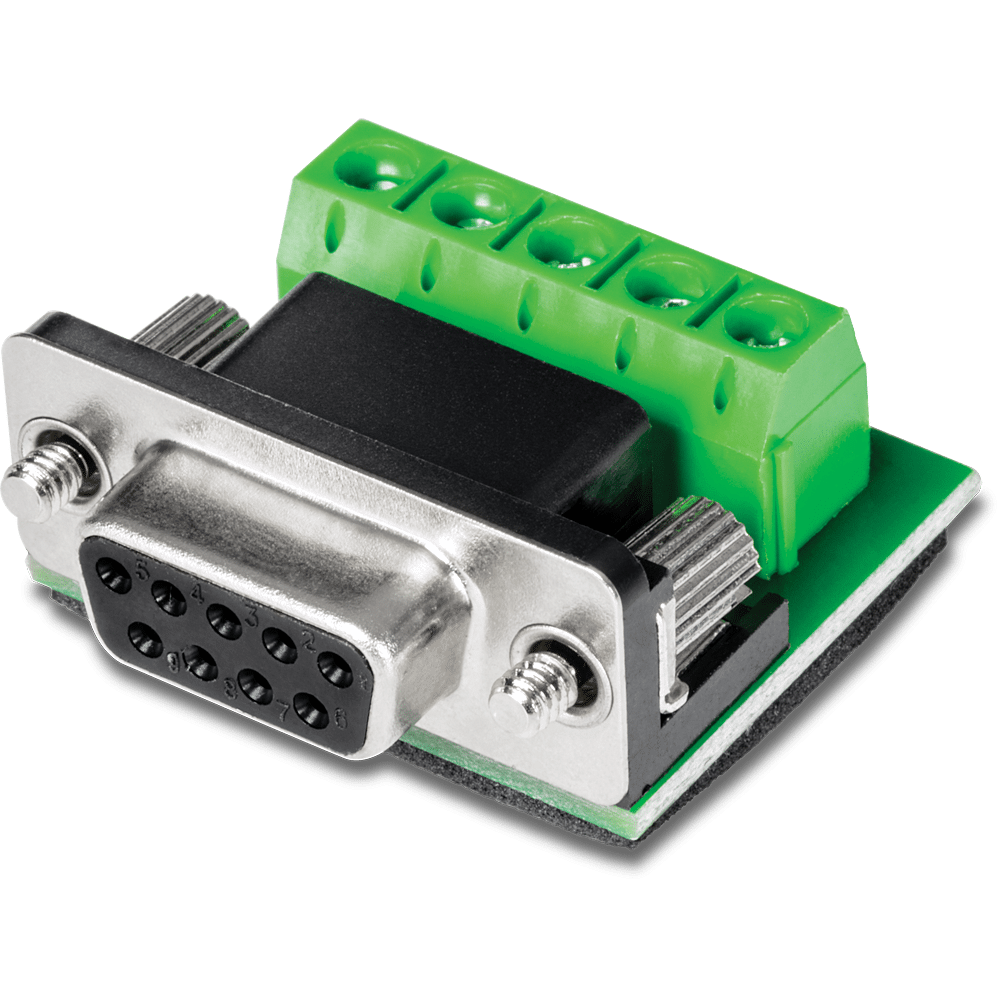

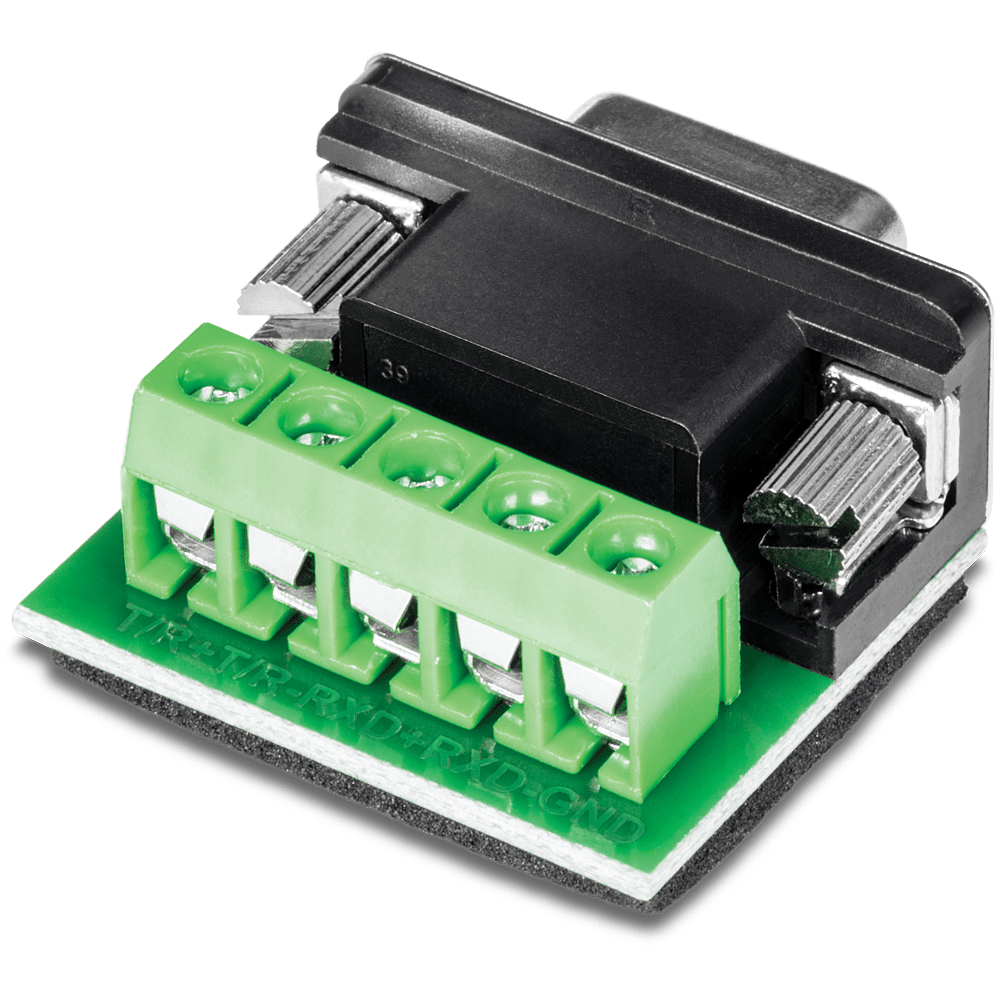

TRENDnet TI-S100 RS232 to RS422/RS485 Converter Adapter Overview
TRENDnet’s RS232 to RS422/RS485 Converter Adapter, model TI-S100, is a DB9 terminal block adapter designed for use with our TI-M12 and TI-M42 industrial Modbus gateways. The TI-S100 RS232 terminal block adapter conveniently converts an RS232 port to an RS422 or RS485 terminal block.
- Convert an RS232 port to an RS422/RS485 terminal block
- Designed for use with the TI-M12 and TI-M42 industrial Modbus gateways
TRENDnet TI-S100 RS232 to RS422/RS485 Converter Adapter Features
- RS232 to RS422/RS485 Converter Adapter
- Convert an RS232 port to an RS422/RS485 terminal block with this serial-to-terminal block adapter
- Compatibility
- This DB9 terminal block adapter is designed for use with TRENDnet’s TI-M12 and TI-M42 industrial Modbus gateways
TRENDnet TI-S100 RS232 to RS422/RS485 Converter Adapter Specifications
- Interface
- 1 x DB9 Female RS-232 to RS-422/RS485
- 1 x Terminal block
- Terminal Block
- Redundant power inputs, 5-pin
- Wire range: 26-14AWG
- Solid wire (AWG): 26-14AWG
- Stranded wire (AWG): 26-14AWG
- Torque: 0.4Nm (3.6 Lb.-In)
- Wire strip length: 6-7mm
- Operating Temperature
- 0° – 40° C (32° – 104° F)
- Dimensions
- 30 x 33 x 15mm (1.2 x 1.3 x 0.6 in.)
- Weight
- 16g (0.5 oz.)
- Warranty
- 1 year
- Package Contents
- TI-S100
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
