À propos du produit

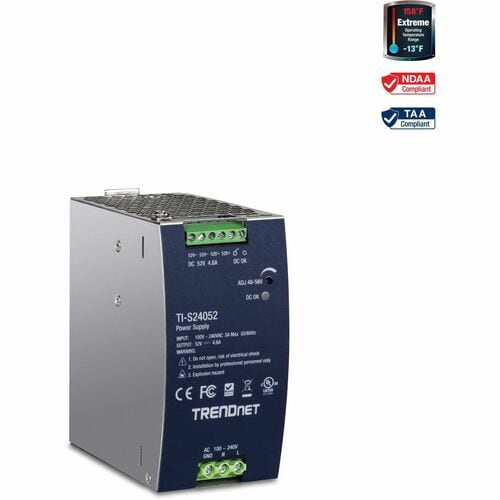

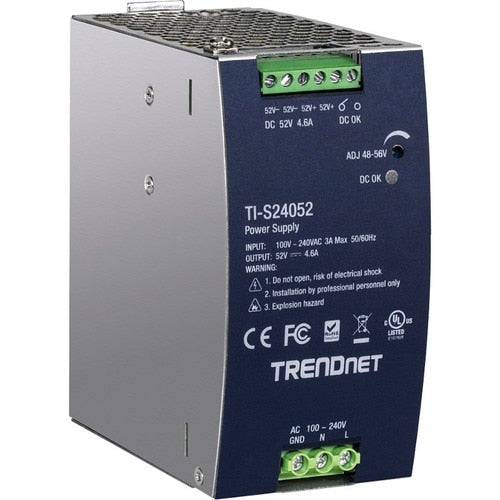

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24052, supplies up to 240W (52V DC, 4.61A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This industrial power supply supports active PFC to help eliminate unusable reactive power, and comes with an integrated DIN-Rail mount. It also supports protections for overload, short circuit, over voltage, over current, and over temperature. The industrial power supply is designed for industrial environments with an operating temperate range of -25° - 70° C (-13° - 158° F).
- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 3.15A 127 - 370V DC; Output: 240W, 48 - 56V, 0 - 4.6A; DIN-rail: TS-35/7.5 or 15
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant DIN-Rail Power Supply, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-S24052 240W, 52V DC, 4.61A AC to DC DIN-Rail Power Supply with PFC Function is backed and supported with 1 year of TRENDnet Manufacturer Protection.
- 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, injectors, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- PROTECTIONS: Overload, short circuit, over voltage, over current, and over temperature protection
- PASSIVE COOLING: The industrial power supply cools itself by natural air convection

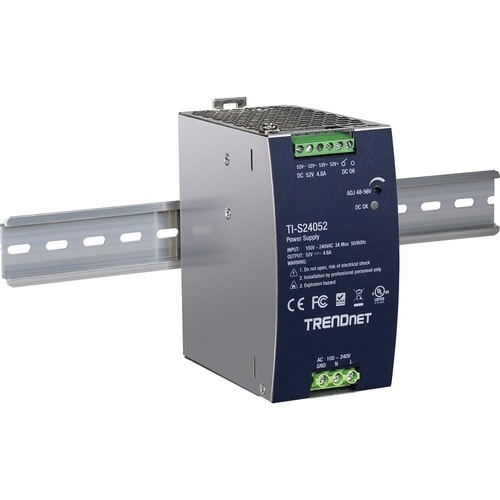

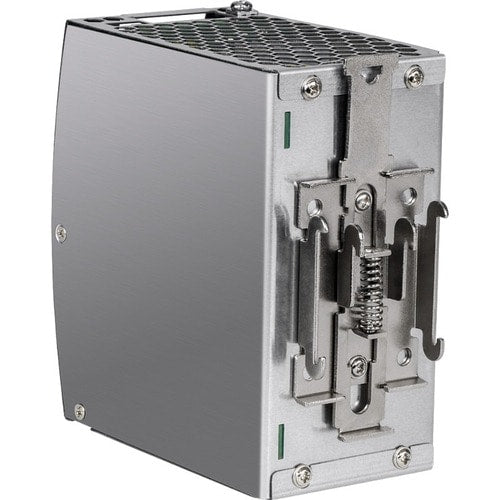

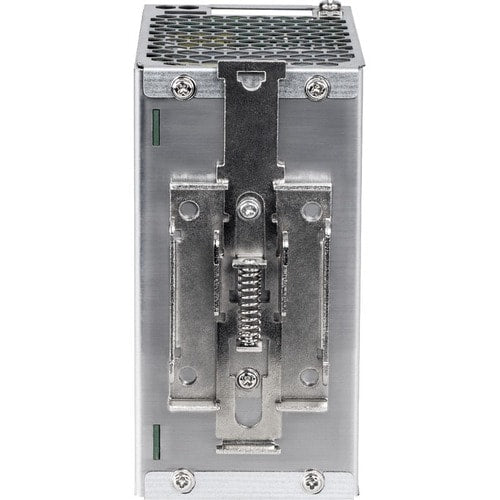

- DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
- 150% Peak Load Capability; UL 508 approved
- Industrial power supply with integrated DIN-Rail mount
- Provides up to 240W of power (52V DC, 4.61A)
- Supported output voltage 48 - 56V DC
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.98)
- Cooling by natural air convection
- Protections: Overload, short circuit, over power, over voltage, over current, over temperature
- UL 508 approved
- Built-in DC OK relay contact
- -25° - 70° C (-13° - 158° F) wide operating temperature range
- NDAA / TAA compliant (U.S. and Canada only)
Spécifications techniques
| Technical Information | |
| Efficiency | 94% |
| Number of Fans | 1 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Power Description | |
| Output Power | 240 W |
| Output Voltage | 52 V DC |
| Output Current | 4.61 A |
| Output Voltage Detail | 52 V DC @ 4.61 A |
| Physical Characteristics | |
| Weight (Approximate) | 1.86 lb (844 g) |
| Form Factor | DIN Rail |
| Height | 2.48" (63 mm) |
| Width | 4.88" (124 mm) |
| Depth | 4.49" (114 mm) |
| General Information | |
| Product Type | Proprietary Power Supply |
| Manufacturer Part Number | TIS24052 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Name | 240W 52V DC 4.61A AC to DC DIN-Rail Power Supply with PFC Function |
| Brand Name | TRENDnet |
