À propos du produit

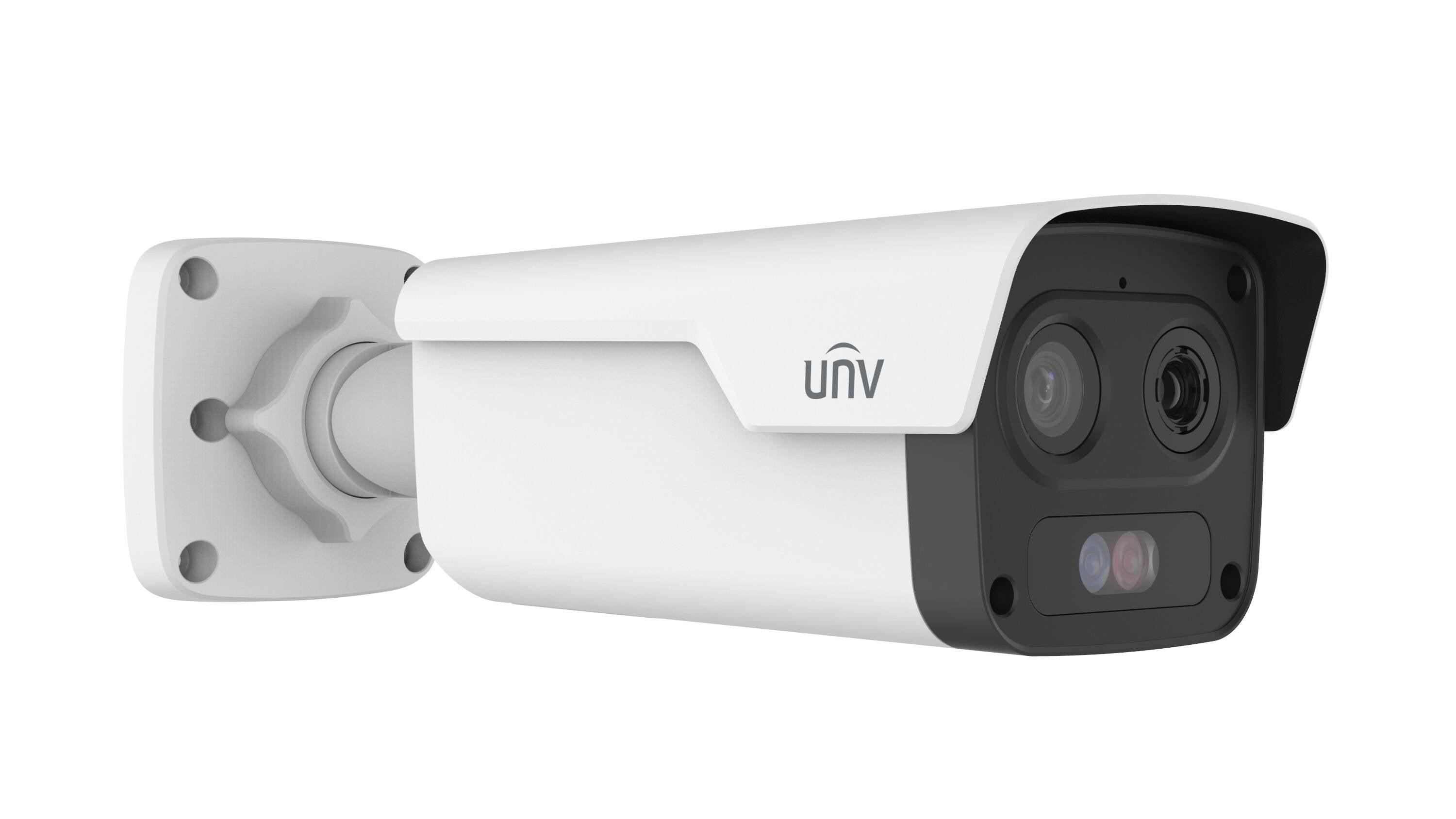

Univew 4MP Smart Thermal & Optical Dual-spectrum Bullet Network Camera is a dual-spectrum optical and thermal bullet camera designed for networked camera systems with additional temperature monitoring needs. Dual video with a single IP, thermal and optical dual-spectrum imaging captures additional target heat-spectrum details with an incredibly high sensitivity—preventing unauthorized access into critical security areas as well as providing live temperature alarming for infrastructure.
Thermal mode also supports fire detection, smoking detection and fire shield area; as well as dedicated temperature control monitoring to prevent both unauthorized access as well as damage to equipment from failing climate controls or malfunctioning, overheating equipment. Direct alarm out (2x alarm in, 2x alarm out) can link cameras directly into larger alarm systems for system-critical alerts when anomalous temperatures are detected, as well as standard optical alarming like motion detection and line crossing. Vehicle and human classification technology along with thermal imaging dramatically decreases false alarms, and additional auto IR provides 24/7 imaging in conditions as dark as 0 Lux.
Supports audio and light alarm, with red and blue warning lights built in for active deterrence for intruders. Supports two-way audio for operator address to visitors or trespassers (with additional supported hardware).
DC12V±25% or PoE power supply required. Includes 2x alarm I/O, 1x audio I/O and microSD slot (supports up to 512GB) for additional external storage.
TIC2A32SA-F10-4F8AC-I1 Specs and Features
- Camera Sensors: ½.8’’ CMOS (Optical), Vanadium oxide uncooled focal plane arrays (Thermal)
- Min illumination: Colour: 0.003 lux (F1.6, AGC ON); B/W: 0.002 lux(F1.6,AGC ON); 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Thermal Pixel Size: 12 um
- NETD: < 50 mk @ F1.0 @ 25 Celcius
- Shutter: Auto/Manual, 1 to 1/100000 s
- Focal Lengths: 8.0 mm (Optical); 10.0 mm (Thermal)
- Iris: F1.6 (Optical); F1.0 (Thermal)
- Field of View (HVD): 41.2 °, 23.6 °, 50.7 ° (Optical); 17.5 °, 13.2 °, 21.5 ° (Thermal)
- IR Wavelength: 750nm
- IR Distance: 50m
- Light On/Off Control: Auto/Manual
- Frame Rate: 4MP(2688*1520), Max 30fps (Optical); 960P(1280*960), Max 30fps (Thermal)
- Video Compression: Ultra 265, H.265, H.264, MJPEG (Optical) Ultra 265, H.265, H.264, MJPEG (Thermal)
- Video Bit Rate:128 Kbps to 16 Mbps (Optical); 128 Kbps to 16 Mbps (Thermal)
- U-code: Supported
- ROI: Supported
- Video Stream: Triple Streams
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 8 areas (8 blacks/ 8 mosaics) (Optical-only)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- Defog: Digital Defog
- Thermal Palette: white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2, lava, medical, arctic, mazarine, fusion, rain, puce
- Smart Intrusion Prevention: Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Smoke and Fire Detection: Supported
- Temperature Measurement Accuracy: ±8 °C(±14.4 °F) or ±8% (whichever is greater)
- Temperature Range: Selectable between -20°C to 150°C (-4°F to 302°F) and 100°C to 550°C (212 °F to 1022 °F)
- Basic Detection: Motion Detection, Tampering Alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 128 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 16KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR
- Audio I/O: 1 Input: impedance 1 k?, amplitude 2.5 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 2/2
- Serial Port: 1 channel RS485 interface
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Video Output: 1 BNC (For debugging thermal optics)
- Power: DC12V(±25%), PoE(IEEE802.3af)
- Power Consumption: Max 12W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: 269.1 x 95.7 x 83 mm (10.6"" x 3.75"" x 3.25"")(L x W x H)
- Weight: 0.95kg(2.1lb)
- EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety: CE LVD (EN IEC 62368-1:2020+A11:2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Spécifications techniques
Univew 4MP Smart Thermal & Optical Dual-spectrum Bullet Network Camera is a dual-spectrum optical and thermal bullet camera designed for networked camera systems with additional temperature monitoring needs. Dual video with a single IP, thermal and optical dual-spectrum imaging captures additional target heat-spectrum details with an incredibly high sensitivity—preventing unauthorized access into critical security areas as well as providing live temperature alarming for infrastructure.
Thermal mode also supports fire detection, smoking detection and fire shield area; as well as dedicated temperature control monitoring to prevent both unauthorized access as well as damage to equipment from failing climate controls or malfunctioning, overheating equipment. Direct alarm out (2x alarm in, 2x alarm out) can link cameras directly into larger alarm systems for system-critical alerts when anomalous temperatures are detected, as well as standard optical alarming like motion detection and line crossing. Vehicle and human classification technology along with thermal imaging dramatically decreases false alarms, and additional auto IR provides 24/7 imaging in conditions as dark as 0 Lux.
Supports audio and light alarm, with red and blue warning lights built in for active deterrence for intruders. Supports two-way audio for operator address to visitors or trespassers (with additional supported hardware).
DC12V±25% or PoE power supply required. Includes 2x alarm I/O, 1x audio I/O and microSD slot (supports up to 512GB) for additional external storage.
TIC2A32SA-F10-4F8AC-I1 Specs and Features
- Camera Sensors: ½.8’’ CMOS (Optical), Vanadium oxide uncooled focal plane arrays (Thermal)
- Min illumination: Colour: 0.003 lux (F1.6, AGC ON); B/W: 0.002 lux(F1.6,AGC ON); 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Thermal Pixel Size: 12 um
- NETD: < 50 mk @ F1.0 @ 25 Celcius
- Shutter: Auto/Manual, 1 to 1/100000 s
- Focal Lengths: 8.0 mm (Optical); 10.0 mm (Thermal)
- Iris: F1.6 (Optical); F1.0 (Thermal)
- Field of View (HVD): 41.2 °, 23.6 °, 50.7 ° (Optical); 17.5 °, 13.2 °, 21.5 ° (Thermal)
- IR Wavelength: 750nm
- IR Distance: 50m
- Light On/Off Control: Auto/Manual
- Frame Rate: 4MP(2688*1520), Max 30fps (Optical); 960P(1280*960), Max 30fps (Thermal)
- Video Compression: Ultra 265, H.265, H.264, MJPEG (Optical) Ultra 265, H.265, H.264, MJPEG (Thermal)
- Video Bit Rate:128 Kbps to 16 Mbps (Optical); 128 Kbps to 16 Mbps (Thermal)
- U-code: Supported
- ROI: Supported
- Video Stream: Triple Streams
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 8 areas (8 blacks/ 8 mosaics) (Optical-only)
- White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- Defog: Digital Defog
- Thermal Palette: white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2, lava, medical, arctic, mazarine, fusion, rain, puce
- Smart Intrusion Prevention: Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- Smoke and Fire Detection: Supported
- Temperature Measurement Accuracy: ±8 °C(±14.4 °F) or ±8% (whichever is greater)
- Temperature Range: Selectable between -20°C to 150°C (-4°F to 302°F) and 100°C to 550°C (212 °F to 1022 °F)
- Basic Detection: Motion Detection, Tampering Alarm, Audio Detection
- General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 128 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 16KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR
- Audio I/O: 1 Input: impedance 1 k?, amplitude 2.5 V [p-p], 1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 2/2
- Serial Port: 1 channel RS485 interface
- Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
- Video Output: 1 BNC (For debugging thermal optics)
- Power: DC12V(±25%), PoE(IEEE802.3af)
- Power Consumption: Max 12W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions: 269.1 x 95.7 x 83 mm (10.6"" x 3.75"" x 3.25"")(L x W x H)
- Weight: 0.95kg(2.1lb)
- EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety: CE LVD (EN IEC 62368-1:2020+A11:2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
