À propos du produit

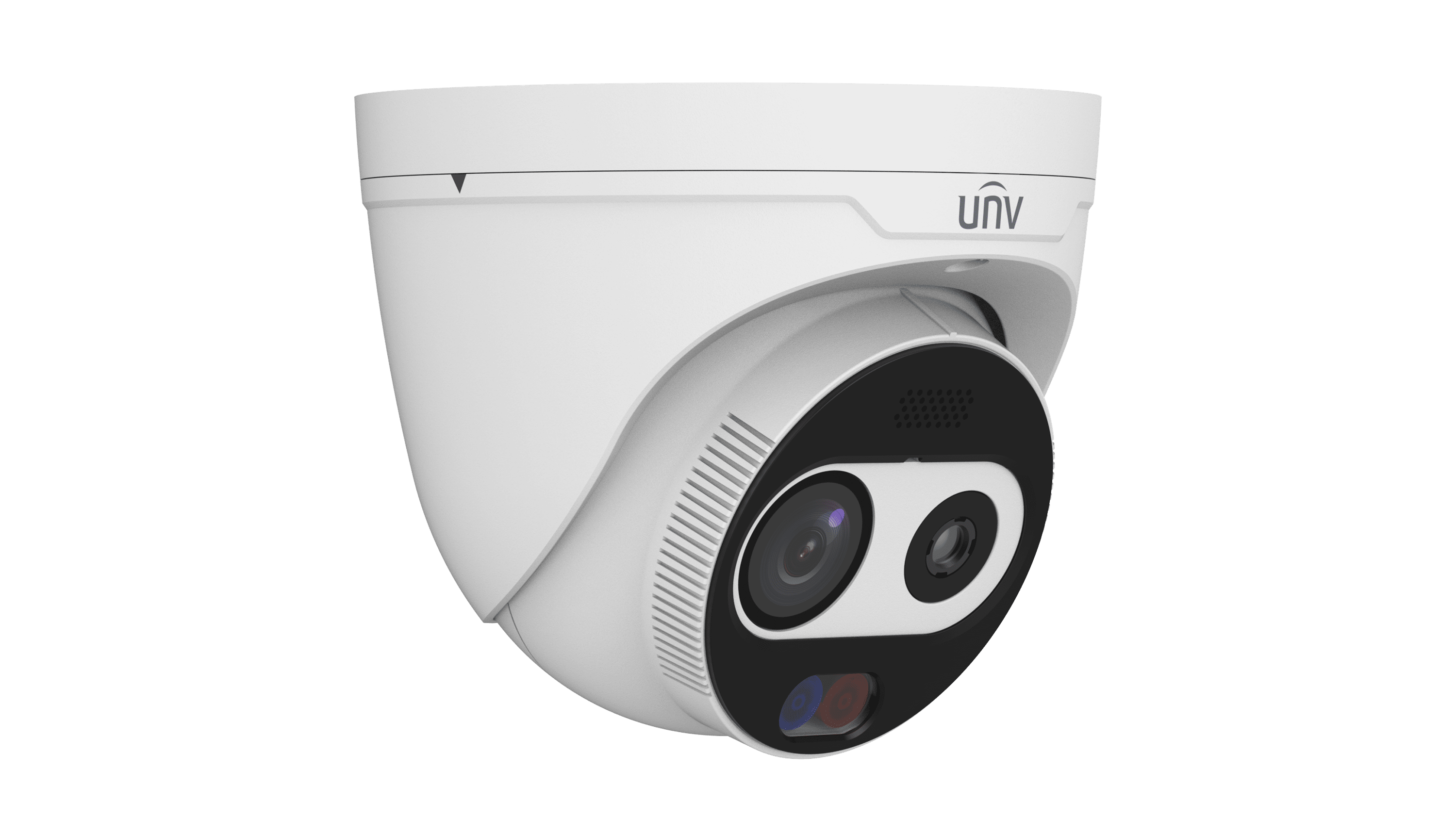

The Uniview Bi-spectrum Optical and Thermal Network Turret Camera combines high-quality 4MP optical imaging along with simultaneous thermal imaging technology for highly accurate alarming and environmental monitoring. Dual video with a single IP, thermal and optical dual-spectrum imaging captures additional target heat-spectrum details with an incredibly high sensitivity—preventing unauthorized access into critical security areas as well as providing live temperature alarming for infrastructure.
LightHunter technology provides ultra-high image quality in low-light situations, while the 120dB true WDB technology ensures there are clear images in vivid lighting situations. The camera also features a built-in mic, and speaker, along with Smart IR up to 50m, as well as built-in red and blue alarm lights for active deterrence of trespassers-- additional support for two-way audio and operator address creates a front-line security option for large or small security installs.
Thermal mode also supports fire detection, smoking detection and fire shield area; as well as dedicated temperature control monitoring to prevent both unauthorized access as well as damage to equipment from failing climate controls or malfunctioning, overheating equipment. Direct alarm out (2x alarm in, 2x alarm out) can link cameras directly into larger alarm systems for system-critical alerts when anomalous temperatures are detected, as well as standard optical alarming like motion detection and line crossing. Vehicle and human classification technology along with thermal imaging dramatically decreases false alarms, and additional auto IR provides 24/7 imaging in conditions as dark as 0 Lux.
DC12V±25% or PoE power supply required. Includes 2x alarm I/O, 1x audio I/O and microSD slot (supports up to 512GB) for additional external storage.
TIC3612SA-F3-4F4AC-I1 Specs and Features
- Sensor: 1/2.8"" CMOS (Optical); Vanadium Oxide Uncooled Focal Plane Arrays (Thermal)
- Min. Illumination: Colour: 0.003 lux (F1.6, AGC ON); B/W: 0.002lux(F1.6,AGC ON); 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Thermal Resolution: 256 x 192
- Thermal Pixel Size: 12 um
- NETD: < 50 mk @ F1.0 @ 25 ° C
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: 120dB
- S/N: >56dB
- Focal Length: 4mm (optical); 3 mm (thermal)
- Iris: F1.6 (Optical); F1.0 (Thermal)
- FOV (HVD): 72.9° x 44.4° x 89.8° (Optical); 58° x 42.5° x 72° (Thermal)
- IR Wavelength: 750 nm
- Illumination Distance (IR): 30m
- Light On/Off Control: Auto/Manual
- Frame Rate: 4MP(2688*1520), Max 30fps (Optical); 960P(1280*960), Max 30fps (Thermal)
- Video Compression: Ultra 265|H.265|H.264|MJPEG
- Video Bit Rate 128 Kbps ~ 16 Mbps
- U-code: Supported
- ROI: Supported
- Video Stream: Triple Streams
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 8 areas (8 blacks/ 8 mosaics) (Optical only)
- White Balance: Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 (Optical only)
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal|Flip Vertical|Flip Horizontal|180°|90° Clockwise|90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Thermal Imaging Palette: white hot|lava|iron oxide red|hot iron|medical|arctic|rainbow 1|rainbow 2|rainbow 3|depict hot|ice hot|black hot|mazarine|fusion|red hot|green hot|color 1|color 2|rain|puce
- Smart Intrusion Prevention: Cross line detection, Intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle), Enter area detection (thermal), Leave area detection (thermal)
- Smoke and Fire Detection: Supported
- Temperature Measurement Accuracy: ±8 °C (±14.4 °F) or ± 8% (whichever is greater)
- Temperature Range: Selectable between -20 °C ~ 150 °C (-4 °F ~ 302 °F) and 100 °C ~ 550 °C (212 °F ~ 1022 °F)
- Temperature Detection-Thermal: Thermal channel supports rulebased temperature measurements.Supports realtime display of the highest, lowest, and average temperatures in the rule-defined area on the screen
- Smoking Detection-Thermal: Thermal channel supports the detection of smoking behavior in the environment
- Audio Compression: G.711U|G.711A
- Audio Bitrate: 128 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 16KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR
- Protocols: IGMP|RTP|SMTP|IPv4|IPv6|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|802.1x|SNMP|QoS|SSL/TLS|SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T)|API|SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Client: EZStation|UNV-Link|UNV-Link Pro
- Built-in Mic: Supported
- Built-in Speaker: Supported
- Audio I/O: 1 Input: impedance 1 k?, amplitude 2.5 V [p-p]|1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 2/2
- Serial Port: 1 channel RS485 interface
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Video Output: 1x BNC (For debugging thermal signal only)
- Power: DC12V(±25%), PoE(IEEE802.3af)
- Power Consumption: Max 12W
- Power Interface: Ø 5.5 mm coaxial power plug
- Dimensions: ?129 x 114 mm(?5.08"" x 4.49"")(? x H)
- Weight: 0.72kg(1.6lb)
- Working Environment: -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety: CE LVD (EN IEC 62368-1:2020+A11:2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Spécifications techniques
The Uniview Bi-spectrum Optical and Thermal Network Turret Camera combines high-quality 4MP optical imaging along with simultaneous thermal imaging technology for highly accurate alarming and environmental monitoring. Dual video with a single IP, thermal and optical dual-spectrum imaging captures additional target heat-spectrum details with an incredibly high sensitivity—preventing unauthorized access into critical security areas as well as providing live temperature alarming for infrastructure.
LightHunter technology provides ultra-high image quality in low-light situations, while the 120dB true WDB technology ensures there are clear images in vivid lighting situations. The camera also features a built-in mic, and speaker, along with Smart IR up to 50m, as well as built-in red and blue alarm lights for active deterrence of trespassers-- additional support for two-way audio and operator address creates a front-line security option for large or small security installs.
Thermal mode also supports fire detection, smoking detection and fire shield area; as well as dedicated temperature control monitoring to prevent both unauthorized access as well as damage to equipment from failing climate controls or malfunctioning, overheating equipment. Direct alarm out (2x alarm in, 2x alarm out) can link cameras directly into larger alarm systems for system-critical alerts when anomalous temperatures are detected, as well as standard optical alarming like motion detection and line crossing. Vehicle and human classification technology along with thermal imaging dramatically decreases false alarms, and additional auto IR provides 24/7 imaging in conditions as dark as 0 Lux.
DC12V±25% or PoE power supply required. Includes 2x alarm I/O, 1x audio I/O and microSD slot (supports up to 512GB) for additional external storage.
TIC3612SA-F3-4F4AC-I1 Specs and Features
- Sensor: 1/2.8"" CMOS (Optical); Vanadium Oxide Uncooled Focal Plane Arrays (Thermal)
- Min. Illumination: Colour: 0.003 lux (F1.6, AGC ON); B/W: 0.002lux(F1.6,AGC ON); 0 lux with IR
- Day/Night: IR-cut filter with auto switch (ICR)
- Thermal Resolution: 256 x 192
- Thermal Pixel Size: 12 um
- NETD: < 50 mk @ F1.0 @ 25 ° C
- Shutter: Auto/Manual, 1 ~ 1/100000s
- WDR: 120dB
- S/N: >56dB
- Focal Length: 4mm (optical); 3 mm (thermal)
- Iris: F1.6 (Optical); F1.0 (Thermal)
- FOV (HVD): 72.9° x 44.4° x 89.8° (Optical); 58° x 42.5° x 72° (Thermal)
- IR Wavelength: 750 nm
- Illumination Distance (IR): 30m
- Light On/Off Control: Auto/Manual
- Frame Rate: 4MP(2688*1520), Max 30fps (Optical); 960P(1280*960), Max 30fps (Thermal)
- Video Compression: Ultra 265|H.265|H.264|MJPEG
- Video Bit Rate 128 Kbps ~ 16 Mbps
- U-code: Supported
- ROI: Supported
- Video Stream: Triple Streams
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 8 areas (8 blacks/ 8 mosaics) (Optical only)
- White Balance: Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 (Optical only)
- Digital Noise Reduction: 2D/3D DNR
- Flip: Normal|Flip Vertical|Flip Horizontal|180°|90° Clockwise|90° Anti-clockwise
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
- Thermal Imaging Palette: white hot|lava|iron oxide red|hot iron|medical|arctic|rainbow 1|rainbow 2|rainbow 3|depict hot|ice hot|black hot|mazarine|fusion|red hot|green hot|color 1|color 2|rain|puce
- Smart Intrusion Prevention: Cross line detection, Intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle), Enter area detection (thermal), Leave area detection (thermal)
- Smoke and Fire Detection: Supported
- Temperature Measurement Accuracy: ±8 °C (±14.4 °F) or ± 8% (whichever is greater)
- Temperature Range: Selectable between -20 °C ~ 150 °C (-4 °F ~ 302 °F) and 100 °C ~ 550 °C (212 °F ~ 1022 °F)
- Temperature Detection-Thermal: Thermal channel supports rulebased temperature measurements.Supports realtime display of the highest, lowest, and average temperatures in the rule-defined area on the screen
- Smoking Detection-Thermal: Thermal channel supports the detection of smoking behavior in the environment
- Audio Compression: G.711U|G.711A
- Audio Bitrate: 128 Kbps
- Two-way Audio: Supported
- Suppression: Supported
- Sampling Rate: 16KHZ
- Edge Storage: Micro SD, up to 512 GB
- Network Storage: ANR
- Protocols: IGMP|RTP|SMTP|IPv4|IPv6|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|802.1x|SNMP|QoS|SSL/TLS|SSH
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T)|API|SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Client: EZStation|UNV-Link|UNV-Link Pro
- Built-in Mic: Supported
- Built-in Speaker: Supported
- Audio I/O: 1 Input: impedance 1 k?, amplitude 2.5 V [p-p]|1 Output: impedance 600 ?, amplitude 2 V [p-p]
- Alarm I/O: 2/2
- Serial Port: 1 channel RS485 interface
- Network: 1 x RJ45 10M/100M Base-TX Ethernet
- Video Output: 1x BNC (For debugging thermal signal only)
- Power: DC12V(±25%), PoE(IEEE802.3af)
- Power Consumption: Max 12W
- Power Interface: Ø 5.5 mm coaxial power plug
- Dimensions: ?129 x 114 mm(?5.08"" x 4.49"")(? x H)
- Weight: 0.72kg(1.6lb)
- Working Environment: -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ?95% RH (non-condensing)
- EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
- Safety: CE LVD (EN IEC 62368-1:2020+A11:2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
- Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
