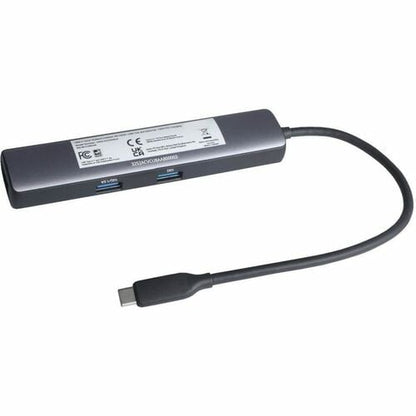

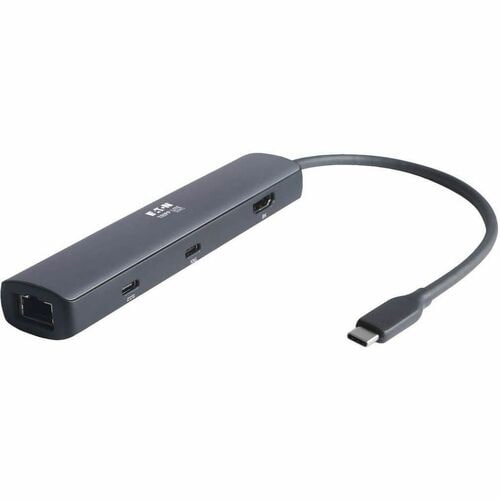

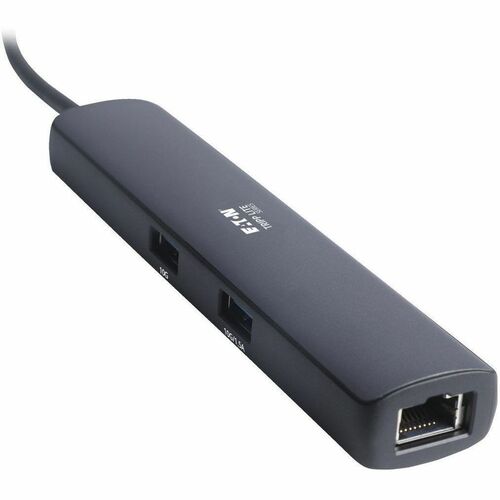

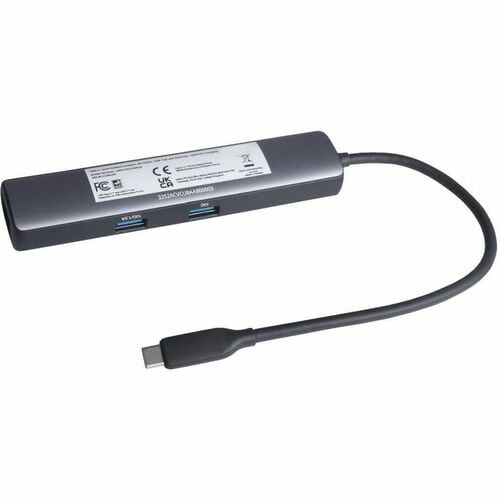

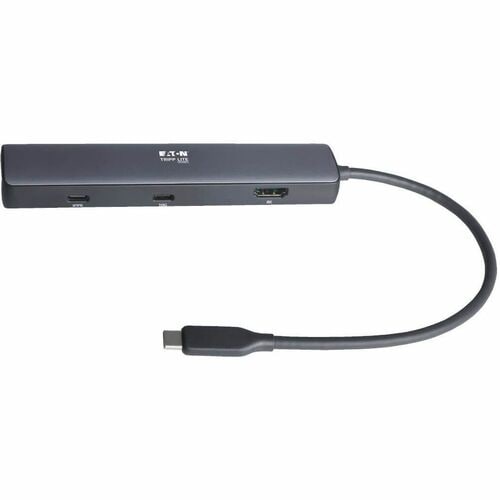

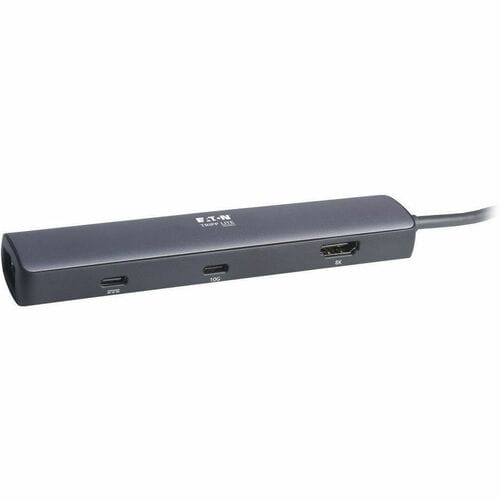

USB-C Adapter Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
This versatile 8K adapter adds multiple ports to the USB-C or Thunderbolt 3 port on your MacBook Pro, Windows laptop or Chromebook. The U442-DOCK40-6 allows you to transmit digital audio and 8K video to an external display, add USB peripherals, connect to a Gigabit Ethernet network, and power and charge a PD Charging-compliant host device simultaneously. It is ideal for future-proofing your high-definition or Ultra HD application in anticipation of an 8K upgrade.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 8K video and digital audio to a compatible HDMI monitor, television or projector without installing special software drivers.
Enjoy the Clarity of 4K/8K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The HDMI port supports 8K UHD resolutions up to 7680 x 4320 at 30 Hz for professional photo and video editing. It also supports High Dynamic Range (HDR10+), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.3 compliance allows you to stream 4K content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Connects USB Peripherals and Transfers Data at Fast USB 3.2 Gen 2 Speeds
Three USB 3.2 Gen 2 ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support lightning-fast data transfer rates up to 10 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One USB-A port and the USB-C port provide up to 5V/1.5A (7.5W) of charging power to mobile devices. The other USB-A port provides 5V/0.9A (4.5W) to connected devices. The three ports support over-current, over-voltage, over-temperature and short circuit protection.
PD 3.0 Charging Port Charges High-Powered Devices via AC Wall Charger
The USB-C Power Delivery port provides power output up to 20V 5A (100W), which is sufficient for charging and powering the connected source device, such as a MacBook or Chromebook. Just connect the device's AC wall charger to the USB-C PD port.
Accesses a Wired Gigabit Ethernet Network
The dedicated RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast web browsing.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play USB-C multiport adapter is specifically designed for the MacBook Pro, Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. Its thin profile design fits easily into a pocket, purse or laptop bag for convenient connections on the go.
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System Supported | Windows |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Height | 0.71" (18.03 mm) |
| Width | 1.21" (30.73 mm) |
| Depth | 5.59" (141.99 mm) |
| Product Color | Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | U442DOCK406 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | U442-DOCK40-6 |
| Product Name | U442-DOCK40-6 Docking Station |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Environmentally Friendly | Yes |
| Brand Compatibility | Apple |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) 3 | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Technical Information | |
| Device Supported | TV/Monitor/Notebook/Keyboard/Mouse/Smartphone/Tablet/Desktop PC/Projector/Flash Drive |
| Connectivity Technology | Wired |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Number of Displays Supported | 1 |
| Supported Resolutions | 7680 x 4320 |
| 5120 x 2880 | |
| 3840 x 2160 | |
| 1920 x 1080 | |
| 1280 x 720 | |
| Screen Mode Supported | Full HD |
| 8K | |
| 5K | |
| 4K | |
| HD | |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C - USB 3.2 Gen 2 (10 Gbps) |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 2 |
| USB Power Delivery | 100W |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-A | Yes |
