À propos du produit

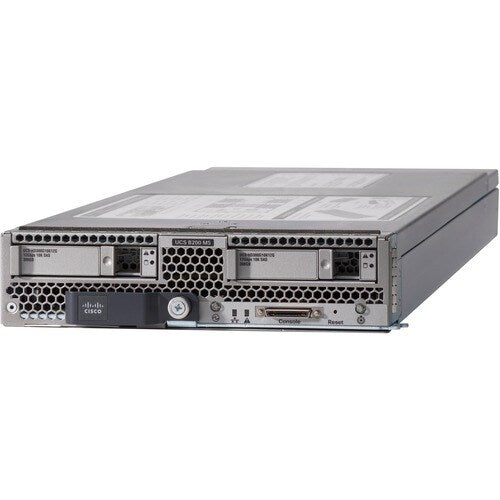

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
- Connect USB-enabled devices via 1 USB ports
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- 12Gb/s SAS interface for high speed and reliability
- Get data transfer speeds up to 10 Mbps with Ethernet connectivity
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
Spécifications techniques
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Processor | |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Physical Characteristics | |
| Weight (Approximate) | 9.50 lb (4310 g) |
| Form Factor | Blade |
| Height | 1.95" (49.53 mm) |
| Width | 8" (203.20 mm) |
| Depth | 24.40" (619.76 mm) |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSB-B200-M5-CH |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS B200 M5 Barebone System |
| Product Series | B200 M5 |
| Brand Name | Cisco |
