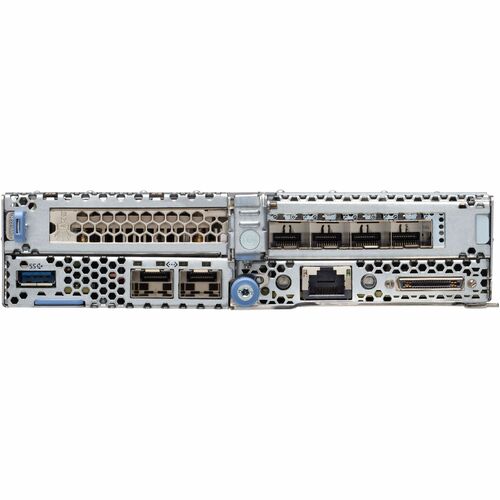

The Cisco UCS C4200 Series Rack Server Chassis is a modular, dense rack server chassis that supports up to four UCS C125 M5 Rack Server Nodes, optimized for use in environments requiring dense compute form factor and high core densities such as scale-out/compute intensive, general service provider, and bare-metal applications.
- Can connect up to 1 USB peripherals
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- 12Gb/s SAS interface for high speed and reliability
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Perform computational tasks effectively accrediting the EPYC processor
Spécifications techniques
| Chipset | |
| Chipset Manufacturer | AMD |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information |
|
| Controllers | |
| Controller Type | Serial ATA |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of Expansion Slots | 2 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21333 |
| Total Number of Memory Slots | 16 |
| Processor | |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Number of Nodes | 4 |
| Number of Processors Supported | 2 |
| Storage | |
| Supported Storage Drive Interfaces | SAS-3 |
| Serial ATA | |
| Supported Storage Drive Types | SSD |
| HDD | |
| Operating System | |
| Operating System Supported | Windows Server 2022 Datacenter |
| Windows Server 2022 Standard | |
| Red Hat Enterprise Linux | |
| SuSE Linux Enterprise Server | |
| Windows Server 2019 Datacenter | |
| Windows Server 2019 Standard | |
| Physical Characteristics | |
| Weight (Approximate) | 95.90 lb (43500 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 32.60" (828.04 mm) |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2.40 kW |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | UCSC-C125 |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | C125 M5 |
| Product Name | UCS C125 M5 Barebone System |
| Brand Name | Cisco |
