À propos du produit
Performance

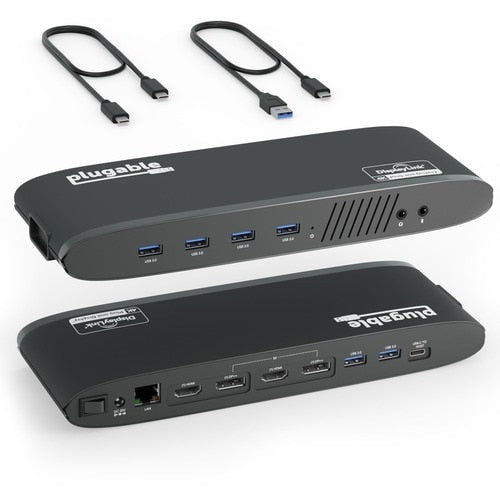

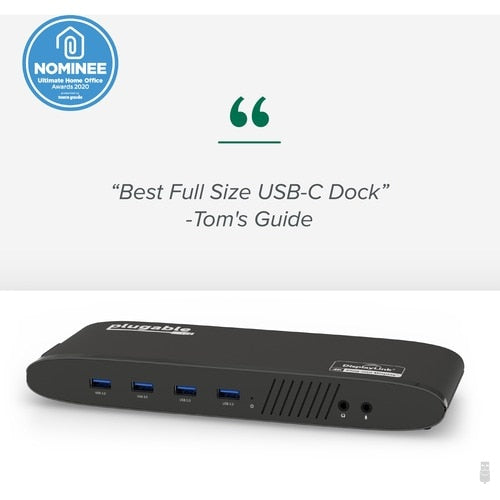

Featuring the latest DisplayLink DL-6950 chipset, the Plugable UD-6950H DisplayLink docking station lets you connect two external monitors up to a 4K@60Hz resolution using DisplayPort or HDMI to your Windows laptop, or desktop via USB 3.0. Can act as a HDMI splitter for dual monitors. Additionally, the USB 3 docking station dock allows you to connect up to eight accessories to the six USB 3.0 ports, a Gigabit Etherent connection and audio input/output ports all through a single USB cable.
4K@60Hz Notes:
To achieve 4K @ 60Hz each connected monitor must support 4K @ 60Hz on the DisplayPort 1.2 or HDMI 2.0. A great hdmi hub for multiple monitors with the correct specs

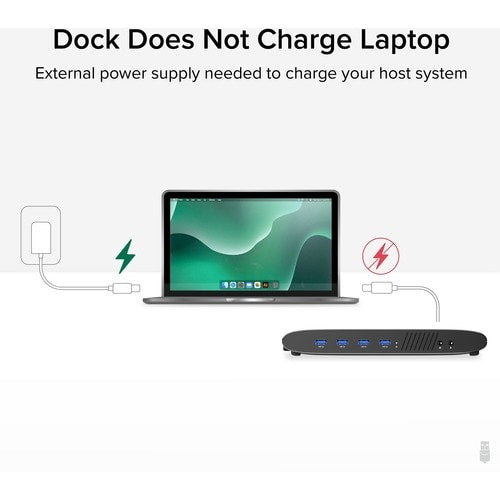

This docking station does not support host charging, we recommend using the systems separate power supply for optimal performance.
Compatibility
Our docking station is compatible with most modern laptops and desktops running Windows 11, 10, 8.1 and 7 or macOS 10.14+ and requires the DisplayLink graphics software to be installed.
Not supported with Linux/Unix or ARM based Windows operating systems.
Does not support HDCP copy protected content (Blu-Ray, Netflix, Amazon Prime video, etc.). DisplayPort MST daisy-chain connections or Dual-Link DVI conversions are not supported from the DisplayPort outputs.
Gigabit Ethernet port requires a Full-Duplex network connection from the connected network device (router, switch, etc.).
In the Box

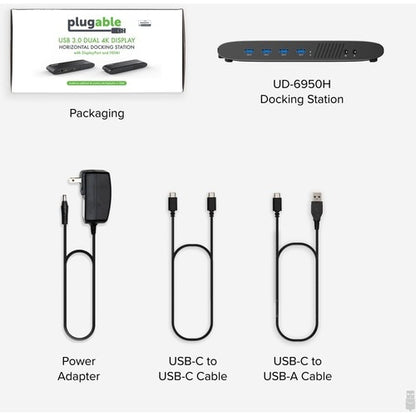

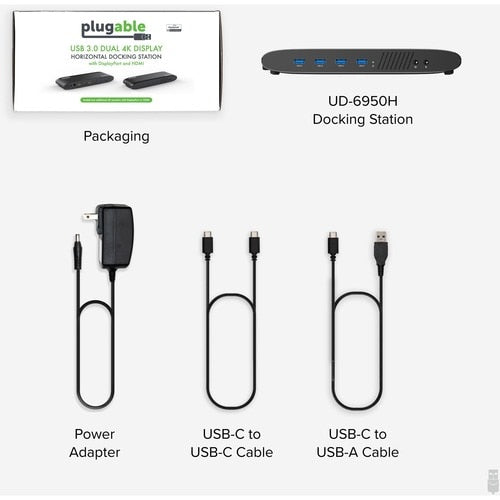

Plugable USB 3.0 Dual 4K Display Horizontal Docking Station, USB 3.0 Type-A to Type-C Cable, USB 3.1 Type-C to Type-C Cable, Power Adapter (US AC Wall Outlet Plug, 20V@2A), Quick Installation Guide
Featuring the latest DisplayLink DL-6950 chipset, the Plugable UD-6950H DisplayLink docking station lets you connect two external monitors up to a 4K@60Hz resolution using DisplayPort or HDMI to your Windows laptop, or desktop via USB 3.0. Can act as a HDMI splitter for dual monitors. Additionally, the USB 3 docking station dock allows you to connect up to eight accessories to the six USB 3.0 ports, a Gigabit Etherent connection and audio input/output ports all through a single USB cable.
4K@60Hz Notes:
To achieve 4K @ 60Hz each connected monitor must support 4K @ 60Hz on the DisplayPort 1.2 or HDMI 2.0. A great hdmi hub for multiple monitors with the correct specs
This docking station does not support host charging, we recommend using the systems separate power supply for optimal performance.
Compatibility
Our docking station is compatible with most modern laptops and desktops running Windows 11, 10, 8.1 and 7 or macOS 10.14+ and requires the DisplayLink graphics software to be installed.
Not supported with Linux/Unix or ARM based Windows operating systems.
Does not support HDCP copy protected content (Blu-Ray, Netflix, Amazon Prime video, etc.). DisplayPort MST daisy-chain connections or Dual-Link DVI conversions are not supported from the DisplayPort outputs.
Gigabit Ethernet port requires a Full-Duplex network connection from the connected network device (router, switch, etc.).
In the Box
Plugable USB 3.0 Dual 4K Display Horizontal Docking Station, USB 3.0 Type-A to Type-C Cable, USB 3.1 Type-C to Type-C Cable, Power Adapter (US AC Wall Outlet Plug, 20V@2A), Quick Installation Guide

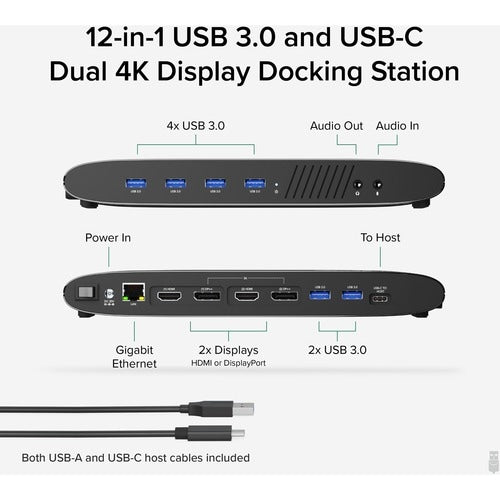

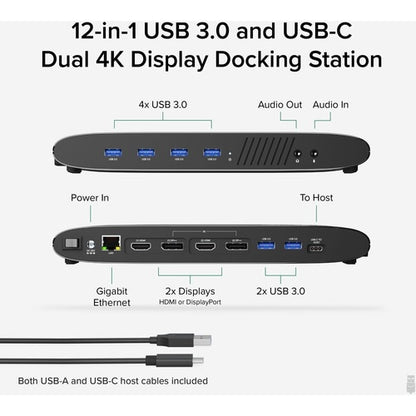

- Expandability - Plugable dual monitor docking station supports dual 4K displays with either HDMI or DisplayPort, Gigabit Ethernet, audio input/output & six USB 3.0 ports
- Dual 4K Displays - Laptop dock supports up to 4K on two independent displays using either DisplayPort 1.2 or HDMI 2.0, also supports most common resolutions including 3840x1080, 2560x1440, 1080p and more
- Compatibility - For Windows 11, 10, 8.x, and 7, macOS 10.14+ with driver installation, and ChromeOS 100.x or later. Linux/Unix not supported. USB docking station does not charge the host computer. Suggested use: web and productivity software; not recommended: gaming, video playback, 2D/3D graphic tools
- System Requirements - Universal docking station is compatible with modern Windows and Mac systems with USB 3.0 Type-A or Type-C ports with DisplayLink USB Graphics driver installed. Recommended hardware specifications can be found in the listing below
- Warranty and Support - Questions only an expert can answer? When you contact our support team, you're connecting with the engineers who design our devices. Every Plugable product is backed by our Seattle-based support team-even before purchase, and a 2-year limited parts and labor warranty after purchase
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Software | |
| Operating System Supported | macOS |
| Windows | |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | China |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | UD-6950H |
| Manufacturer Website Address | http://www.plugable.com |
| Packaged Quantity | 1 |
| Manufacturer | Plugable Technologies |
| Product Model | UD-6950H |
| Product Name | USB 3.0 Dual 4K Display Horizontal Docking Station - DisplayPort & HDMI |
| Brand Name | Plugable |
| Technical Information | |
| Device Supported | Notebook/Desktop PC |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3440 x 1440 |
| 3840 x 1600 | |
| 3840 x 2160 | |
| 640 x 480 | |
| 800 x 600 | |
| 2560 x 1440 | |
| 1920 x 1080 | |
| 1600 x 900 | |
| 1280 x 800 | |
| 1280 x 720 | |
| 1152 x 864 | |
| 1024 x 768 | |
| Screen Mode Supported | 4K |
| Interfaces/Ports | |
| Host Interface | USB Type A |
| USB Type C | |
| Microphone | Yes |
| Wireless LAN | Yes |
| HDMI | Yes |
| HDMI Version | 2 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | Cable | USB-C to USB-C / USB-A to USB-C |
| DisplayPort Version | 1.2 |
| Number of USB Type-A Ports | 6 |
| USB Type-A | Yes |
