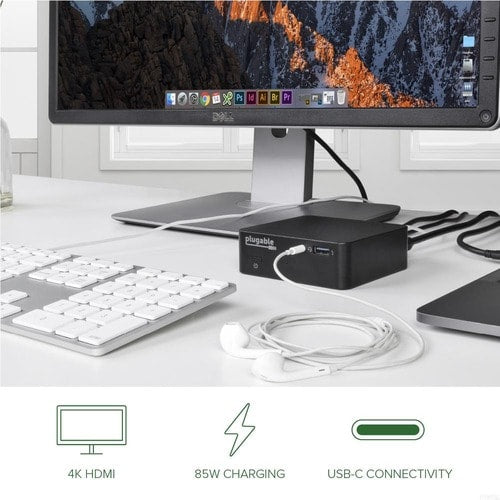

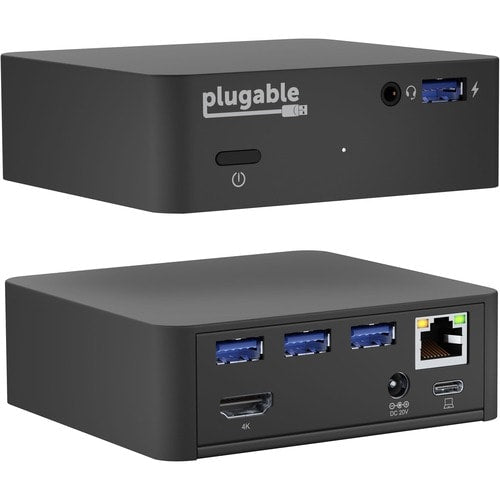

The Plugable UD-CAM USB-C Mini Docking Station provides an additional HDMI display output (via Alternate Mode, converted internally to HDMI for maximum compatibility), up to 85 Watts of Power Delivery (PD) to charge your host computer via USB-C (host computer must support PD over USB-C), gigabit Ethernet, audio, and expanded USB device connectivity. All through a single USB-C cable.
The UD-CAM docking station utilizes new USB-C functionality to output native video over compatible USB-C ports. USB-C ""Alternate Mode"" provides a direct pipeline to the graphics processor in your system, and your connected monitor will function and perform as a natively attached display. The Alternate Mode signal is converted to HDMI 1.4 to accommodate widely available HDMI monitors.
Compatible Systems
Plug and play installation on virtually any Windows, Mac, or Linux host which supports Alternate Mode (Alt Mode) video output functionality. Current examples are the 12"" Retina MacBook with USB-C / Late 2016 / 2017 MacBook Pro / Lenovo Yoga 720 13"" / Surface Book 2 / Dell XPS 13"" (9350/9360) / Pixelbook. Dell XPS 15"" (9550/9560) will function but displays a warning on boot if a 130W charger is not detected.
Power and Charging
The UD-CAM's power supply can charge hosts with up to 85 Watts of power via the USB Power Delivery standard. As mentioned above, some devices which support video output over USB-C will not charge via USB-C. For these systems, the charger from your system manufacturer will be required.
In the Box

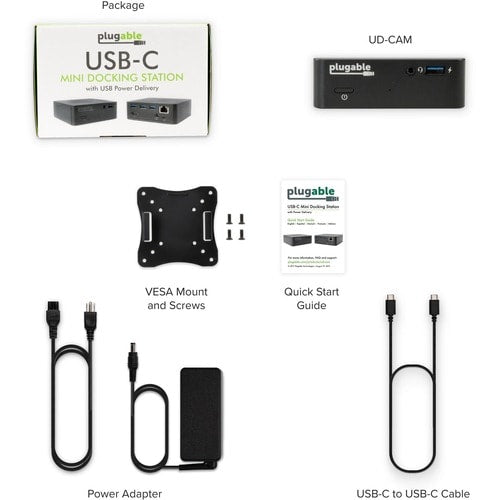

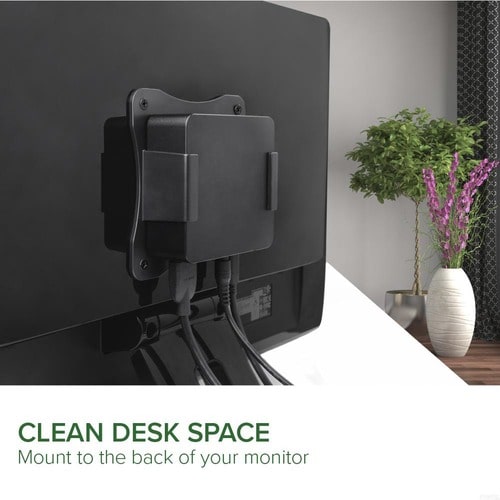

UD-CAM Mini Docking Station,1m long USB-C cable, 100W (20V, 5A) power supply with US power plug, VESA Mount, and quick start guide.
- Supports display resolutions up to 4K@30Hz
- USB-C Power Delivery provides up to 85W of charging power to host system

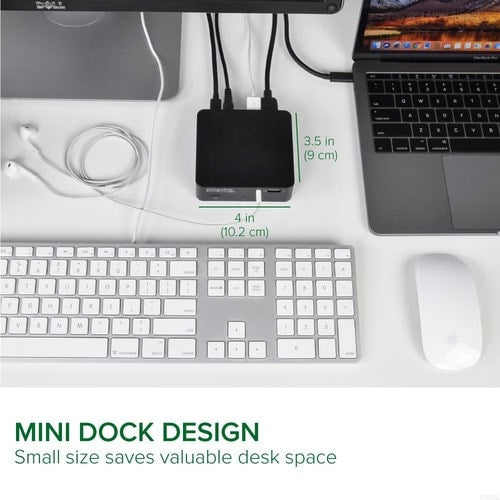

- Small form factor, big functionality
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Software | |
| Operating System Supported | Windows |
| macOS | |
| ChromeOS | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | UD-CAM |
| Manufacturer Website Address | http://www.plugable.com |
| Packaged Quantity | 1 |
| Manufacturer | Plugable Technologies |
| Product Model | UD-CAM |
| Product Name | USB-C Mini Docking Station with 85W Power Delivery |
| Brand Name | Plugable |

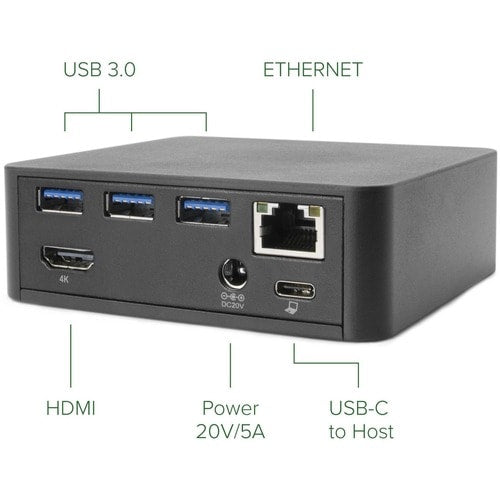

| Interfaces/Ports | |
| Host Interface | USB 3.1 (Gen 1) Type C |
| HDMI | Yes |
| HDMI Version | 1.4 |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Thunderbolt | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-A Ports | 4 |
| USB Power Delivery | 85W |
| USB Type-A | Yes |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | Acer Notebook:
Apple Notebooks:
ASMedia Controller:
ASUS Notebook:
Dell Notebooks:
HP Products:
Huawei Notebooks:
Lenovo Products:
Microsoft Notebook:
Google Notebook:
Samsung Notebook:
https://docs.google.com/spreadsheets/d/1y1BcngYaXtfc-mk-JjJ2j3XzmrRV_DaqaN7uxiAsFEw/htmlembed?gid=0&range=A1:CC999&widget=false&gridlines=true&chrome=false |
| Country of Origin | Taiwan |
| Brand Compatibility | Dell |
| HP | |
| Huawei | |
| Asus | |
| Apple | |
| Acer | |
| Microsoft | |
| Samsung | |
| Lenovo | |
| Technical Information | |
| Device Supported | Notebook/Tablet PC |
| Connectivity Technology | Wired |
| Number of Displays Supported | 1 |
| Supported Resolutions | 800 x 600 |
| 640 x 480 | |
| 3840 x 2160 | |
| 2560 x 1080 | |
| 2560 x 1440 | |
| 1024 x 768 | |
| 1280 x 1024 | |
| 1280 x 720 | |
| 1280 x 800 | |
| 1920 x 1080 | |
| 1600 x 900 | |
| Screen Mode Supported | 4K |
