À propos du produit
NEC's complete 55" 3x3 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp™ and FrameComp technologies, combined with the new glass-to-edge design of the NEC UN551S and the full adjustment capabilities of the Peerless DS-VW775 mounting system, provide for a near seamless video wall without the need for additional third-party equipment. NEC provides everything besides the source to complete your video wall solution!
- Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- S-IPS panel technology allows for excellent off-angle viewing and less color shift compared to other technologies
- Auto ID feature reduces install time in the single press of a button
- Expanded daisy chain options with UHD passthrough via DisplayPort enables UHD resolution across the entire wall
- Display wall calibration kit, Overframe Bezel Kit and IR/Human sensor complete the solution
- Overnight onsite exchange warranty ensures minimum downtime for maximum impact
- Input Switching Speed minimizes downtime between source transitions
- Human Sensor Accessory ensures digital signage is directed at a targeted audience

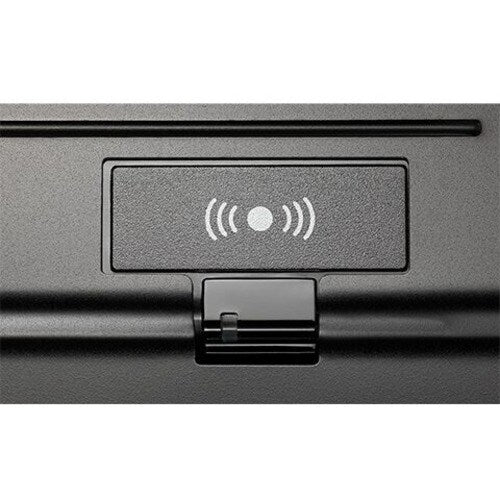

- Near field communication capabilities for setup and service
- Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized
- Digital Signage Display - Ideal for rack, passageway, booth or display counter

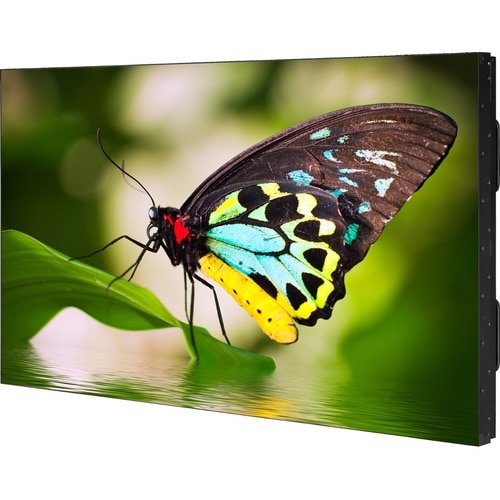

- 55" (1397 mm) Signage Display - Designed for unwavering quality and dazzling picture clarity
- Experience luminescent visual images with LCD display
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
- Engages your customers and makes their viewing experience breathtaking with its 1080p content
- Direct LED backlighting technology enabled for a bright and sharp display
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Network & Communication | |
| Ethernet | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Video | |
| Brightness | 700 cd/m² |
| Scan Format | 1080p |
| Physical Characteristics | |
| Weight (Approximate) | 61.95 lb (28100 g) |
| Height | 27" (685.80 mm) |
| Width | 47.80" (1214.12 mm) |
| Depth | 4.10" (104.14 mm) |
| VESA Mount Standard | 400 x 400 |
| Technical Information | |
| Video Wall Compatible | Yes |
| Bezel Width (Bottom) | 50 mil (1.27 mm) |
| Bezel Width (Top) | 90 mil (2.29 mm) |
| Bezel Width (Left) | 90 mil (2.29 mm) |
| Bezel Width (Right) | 50 mil (1.27 mm) |
| Display & Graphics | |
| Pixel Pitch | 19.69 mil (0.50 mm) |
| Display Resolution | 1920 x 1080 |
| Screen Size | 55" (1397 mm) |
| Number of Screens | 9 |
| Display Screen Type | LCD |
| Backlight Technology | Direct LED |
| Video Wall Configuration | 3x3 |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | UN552-TMX9P |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Manufacturer | Sharp |
| Product Model | UN552V-TMX9P |
| Product Name | 55" Ultra Narrow Bezel S-IPS 3x3 Video Wall Solution |
| Brand Name | Sharp NEC Display |

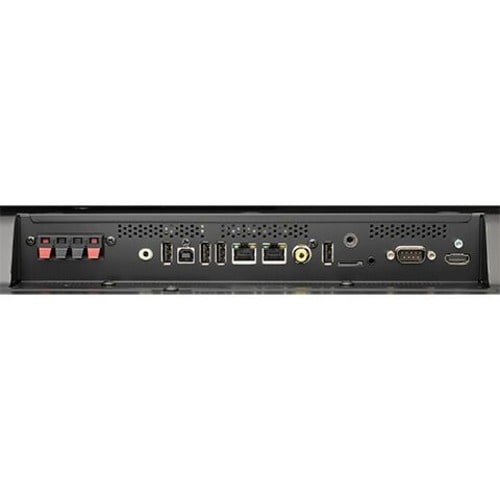

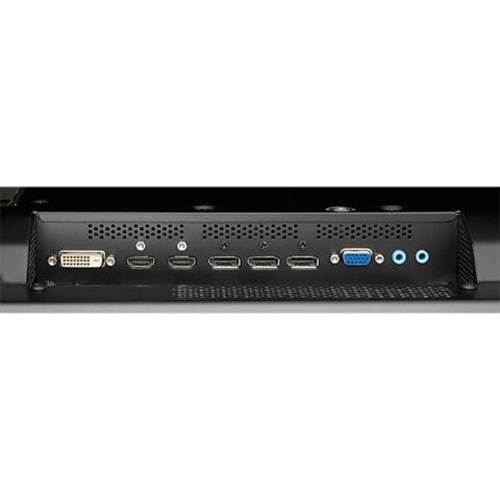

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 2 |
| Serial | Yes |
| Number of DisplayPorts | 2 |
