À propos du produit

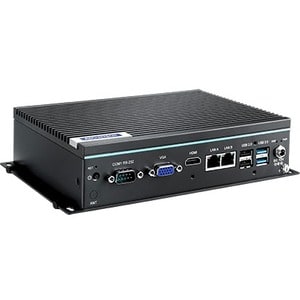

Industrial IoT Edge Gateway
The edge gateway helps to connect OT and IT seamlessly. With diverse edge computing functions, the gateway can play as important role in multiple IoT constriction, such as protocol converter, data collector, or data logger. With modular design, the edge gateway also features with various I/O and versatile mounting ways for wide-range of applications.
- Intel® Celeron® J3455 processor
- Robust design with high stability

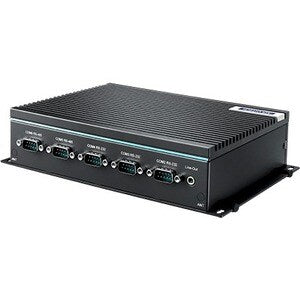

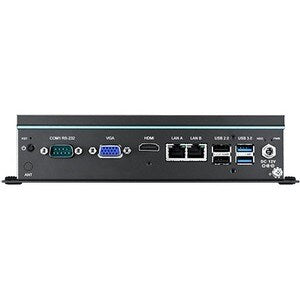

- 2 x GbE, 2 x USB3.0, 2 x USB2.0, 4 x RS232, 2 x RS485, 1 x HDMI, 1 x VGA
- Compact size with fanless design
- Rubber stopper design for stand mount and optional kit for DIN-rail mount.
- Optional 3G/GPS/GPRS/Wi-Fi communication

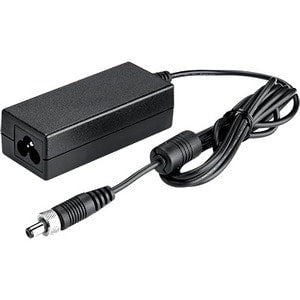

- Threaded DC Jack design for more steady power supply
- Optimized mechanical design for easier RAM swapping
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Memory Technology | DDR3L SDRAM |
| Total Number of Memory Slots | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Height | 1.97" (50 mm) |
| Width | 7.87" (200 mm) |
| Depth | 5.51" (140 mm) |
| Processor | |
| Processor Speed | 1.50 GHz |
| Processor Type | Celeron |
| Processor Model | J3455 |
| Processor Manufacturer | Intel |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports (Front) | 2 |
| Number of USB 3.0 Ports (Front) | 2 |
| General Information | |
| Product Type | Industrial Computer |
| Manufacturer Part Number | UNO-247-J1N1AE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | UNO-247 |
| Product Name | UNO-247 Industrial Computer |
| Brand Name | Advantech |
