À propos du produit
UNO is a full function hybrid security system panel for new or retrofit applications. It features 8 wired zones on board, expandable to 128 zones, up to 8 partitions and up to 128 users/fobs. It supports wired sensors out of the box, with optional wireless sensor support.
Choose from UNO wired keypads, UNO WiFi touch screen or use older DSC keypads - or no keypad if you prefer.
UNO has a built-in IP connection and supports optional 4G/LTE cellular by adding a SIDEKICK-LTE.
UNO can be self monitored using free iOS and Android apps and free basic cloud service including arm, disarm, status and email alerts.
It also supports professional monitoring and works with Alexa and Google voice assistants.
UNO mounts in a standard security enclosure using the same hole pattern as DSC Powerseries.
REPLACEMENT OR UPGRADE FOR DSC POWERSERIES
The UNO alarm panel can be used as a drop-in replacement for DSC Powerseries alarm systems which are now discontinued. UNO supports DSC wired keypads like PK5500, PK5501, RFK5500, RFK5501. It also supports DSC 433 MHZ wireless sensors via RFK keypads.
Upgrade older systems to support Alexa or Google voice assistants, IP and cellular communications, cloud programming & upgrades.
IP OR CELLULAR
Ditch the phone line. UNO has an on board Ethernet port for IP based connection. It can be self monitored or professionally monitored through your favourite central station.
Add a SideKick LTE communicator for cellular communication (paid plan required for cellular).
EXPANSION
UNO has 8 wired zones on board, and 2 PGM outputs. It can be expanded up to 128 wired zones using expansion modules. It uses standard alarm system wired sensors.
KEYPADS FOBS AND WIRELESS SENSORS
UNO can support either SOLO wireless fobs and sensors or DSC 433 MHz fobs and sensors when a UNO-RF433 or UNO5500RF wired keypad is added.
Add a UNO WiFi TouchPad for beautiful local control and display.
Also supports older DSC Powerseries keypads including PK5500, PK5501, PK5508, RFK5500, RFK5501, LCD5511.
EASY TO USE AND PROGRAM
UNO is programmed using the (free) Connect2Go cloud service and your browser to make it simple. The same cloud connection allows for firmware upgrades ""over the air"" and remotely as needed. Use a laptop, iPhone or Android device to program - no more start this and pound that!
PLEASE NOTE: For use with Eyez-On UNO Sensors, Ecolink or DSC 433 MHz legacy sensors only. Does not work with Alula products.

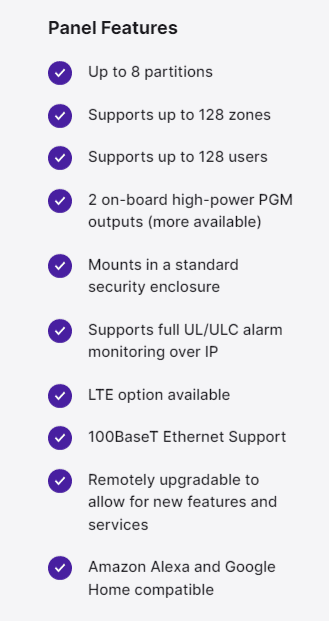

UNO ALARM PANEL DETAILS:
- Full featured alarm system for new or takeover
- 8 wired zones on board, expandable using UNO5108 modules
- Up to 8 partitions
- Supports DSC Powerseries keypads including PK and RFK series, LCD5511
- Supports UNO WiFi Touch screen and UNO wired keypads
- FREE Connect2Go iOS and Android apps
- Free cloud with arm, disarm, status and email alerts.
- Upgraded pro monitoring and SMS alerts available as add-ons/ulocks.
- Add Sidekick-LTE for cellular monitoring (paid plan req)
- Full remote control of all panel features
- Full event logging
- Event alerts by push and email (free) or SMS text (paid)
- IP communication standard
- Works with Alexa and Google
- Standard connections: 8 wired zones, battery, 16VAC power input, bell output, aux output, KBus 4 wire
- Dimensions: 190mm x 95mm (7.5 x 3.75 inches)
- Fits in PC5002, PC5003 and similar alarm cabinets using the same standoff pattern as a PC1616 board.
What's Included:

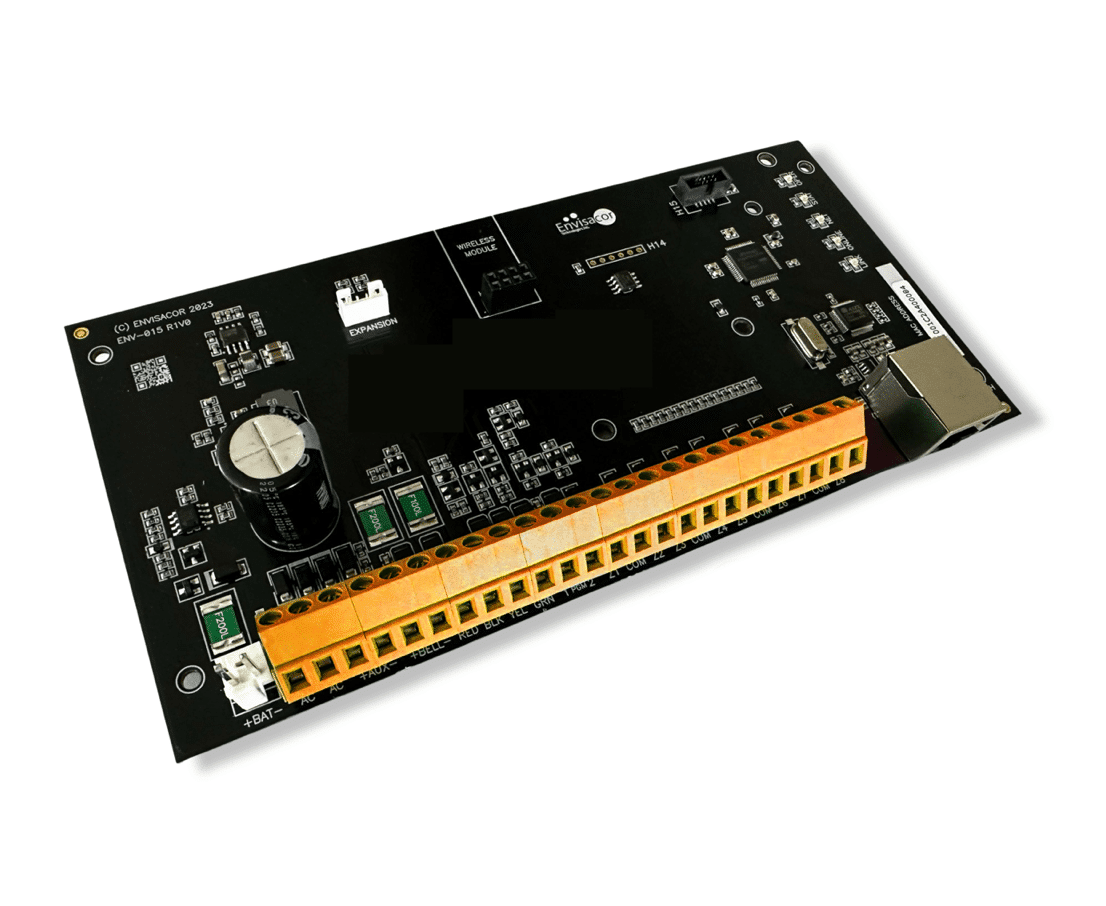

- UNO alarm board
- battery connector cable (for standard 12V alarm batteries)
- zone and battery resistors
- nylon standoffs
Does NOT included power supply, enclosure, battery.
Suggested enclosures: PC5002, PC5003
Suggested batteries: E1240, E1270, Yuasa NP412, NP712
Suggested power supplies: TP4016, CX-TRP-4016
or use ALARM-HWKIT
Spécifications techniques
UNO is a full function hybrid security system panel for new or retrofit applications. It features 8 wired zones on board, expandable to 128 zones, up to 8 partitions and up to 128 users/fobs. It supports wired sensors out of the box, with optional wireless sensor support.
Choose from UNO wired keypads, UNO WiFi touch screen or use older DSC keypads - or no keypad if you prefer.
UNO has a built-in IP connection and supports optional 4G/LTE cellular by adding a SIDEKICK-LTE.
UNO can be self monitored using free iOS and Android apps and free basic cloud service including arm, disarm, status and email alerts.
It also supports professional monitoring and works with Alexa and Google voice assistants.
UNO mounts in a standard security enclosure using the same hole pattern as DSC Powerseries.
REPLACEMENT OR UPGRADE FOR DSC POWERSERIES
The UNO alarm panel can be used as a drop-in replacement for DSC Powerseries alarm systems which are now discontinued. UNO supports DSC wired keypads like PK5500, PK5501, RFK5500, RFK5501. It also supports DSC 433 MHZ wireless sensors via RFK keypads.
Upgrade older systems to support Alexa or Google voice assistants, IP and cellular communications, cloud programming & upgrades.
IP OR CELLULAR
Ditch the phone line. UNO has an on board Ethernet port for IP based connection. It can be self monitored or professionally monitored through your favourite central station.
Add a SideKick LTE communicator for cellular communication (paid plan required for cellular).
EXPANSION
UNO has 8 wired zones on board, and 2 PGM outputs. It can be expanded up to 128 wired zones using expansion modules. It uses standard alarm system wired sensors.
KEYPADS FOBS AND WIRELESS SENSORS
UNO can support either SOLO wireless fobs and sensors or DSC 433 MHz fobs and sensors when a UNO-RF433 or UNO5500RF wired keypad is added.
Add a UNO WiFi TouchPad for beautiful local control and display.
Also supports older DSC Powerseries keypads including PK5500, PK5501, PK5508, RFK5500, RFK5501, LCD5511.
EASY TO USE AND PROGRAM
UNO is programmed using the (free) Connect2Go cloud service and your browser to make it simple. The same cloud connection allows for firmware upgrades ""over the air"" and remotely as needed. Use a laptop, iPhone or Android device to program - no more start this and pound that!
PLEASE NOTE: For use with Eyez-On UNO Sensors, Ecolink or DSC 433 MHz legacy sensors only. Does not work with Alula products.
UNO ALARM PANEL DETAILS:
- Full featured alarm system for new or takeover
- 8 wired zones on board, expandable using UNO5108 modules
- Up to 8 partitions
- Supports DSC Powerseries keypads including PK and RFK series, LCD5511
- Supports UNO WiFi Touch screen and UNO wired keypads
- FREE Connect2Go iOS and Android apps
- Free cloud with arm, disarm, status and email alerts.
- Upgraded pro monitoring and SMS alerts available as add-ons/ulocks.
- Add Sidekick-LTE for cellular monitoring (paid plan req)
- Full remote control of all panel features
- Full event logging
- Event alerts by push and email (free) or SMS text (paid)
- IP communication standard
- Works with Alexa and Google
- Standard connections: 8 wired zones, battery, 16VAC power input, bell output, aux output, KBus 4 wire
- Dimensions: 190mm x 95mm (7.5 x 3.75 inches)
- Fits in PC5002, PC5003 and similar alarm cabinets using the same standoff pattern as a PC1616 board.
What's Included:
- UNO alarm board
- battery connector cable (for standard 12V alarm batteries)
- zone and battery resistors
- nylon standoffs
Does NOT included power supply, enclosure, battery.
Suggested enclosures: PC5002, PC5003
Suggested batteries: E1240, E1270, Yuasa NP412, NP712
Suggested power supplies: TP4016, CX-TRP-4016
or use ALARM-HWKIT
