À propos du produit
- Provides 8 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Serial ATA/600 interface provides quick data transfer and greater throughput
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Intel Core i3 processor works smartly and well responsive to let you swiftly use multiple applications
Spécifications techniques
| Controllers | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H110 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics 530 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 2.24" (57 mm) |
| Width | 8.27" (210 mm) |
| Depth | 9.45" (240 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | USM-260F-BFL00 |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | USM-260 |

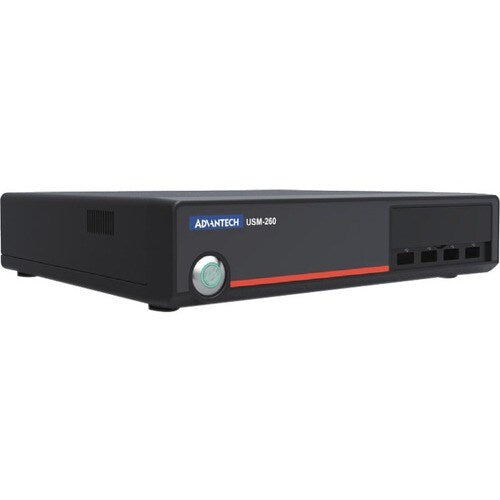

| Product Name | USM-260 Barebone System |
| Brand Name | Advantech |
| Processor | |
| Processor Supported | Core i3 |
| Core i5 | |
| Celeron | |
| Pentium | |
| Core i7 | |
| Processor Socket | Socket H4 LGA-1151 |
| Number of Processors Supported | 1 |
