À propos du produit
Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
- Every unit is 100% tested for reliability and functionality.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
- PDU provides active metering enabling energy optimization and circuit protection
- PDU distributes AC power to multiple servers and balances the load on the servers
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
- Before critical input source become overloaded always be warned with monitored PDUs
Spécifications techniques
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP4N50A0 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN05M9W1-42PTB3-5PS56B0A10-S |

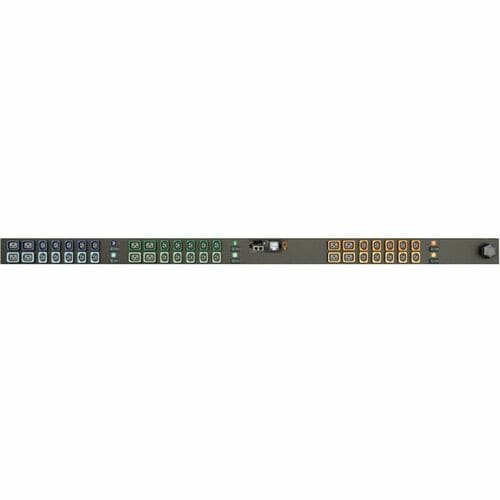

| Product Name | rPDU MN05M9W1-42PTB3-5PS56B0A10-S 42-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Length | 72" (1828.80 mm) |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft (3.05 m) |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 40 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| 346 V AC - 415 V AC | |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 28.80 kW |
| Technical Information | |
| Features | LED Display |
| Protection Type | Single Pole |
| Overcurrent Protection | |
| Plug/Connector Type | IEC 60309 3P+N+E (IP44) |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C13 |
| U-Lock IEC 60320 C19 | |
| Load Capacity (Watt) | 28.80 kW |
| PDU Type | Monitored |
| Receptacle Detail | 12 x U-Lock IEC 60320 C19 |
| 30 x U-Lock IEC 60320 C13 | |
| Plug/Connector Detail | 1 x IEC 60309 3P + N + E (IP44) |
