À propos du produit

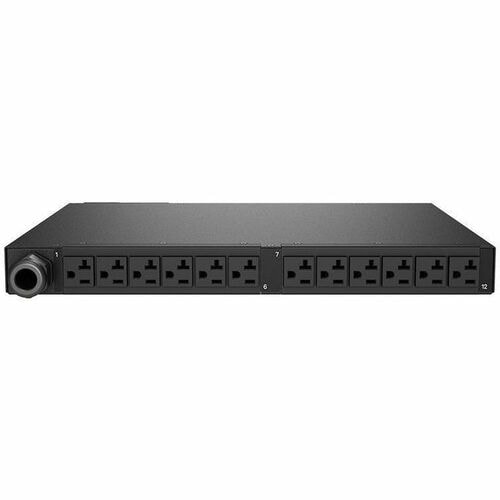

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
- Provide circuit protection and easy configuration for trouble-free access
- With switched PDU, remotely monitor, connect or disconnect data center loads
Spécifications techniques
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 1.90 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP5N21A0 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MNS5M1R5-12S203-2ST5A0H10-S |
| Product Name | rPDU MNS5M1R5-12S203-2ST5A0H10-S 12-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft (3.05 m) |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 12" (304.80 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Technical Information | |
| Features | LED Display |
| Touch Screen Display | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Load Capacity (Watt) | 1.90 kW |
| PDU Type | Switched |
| Receptacle Detail | 12 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA 5-20P |
