À propos du produit

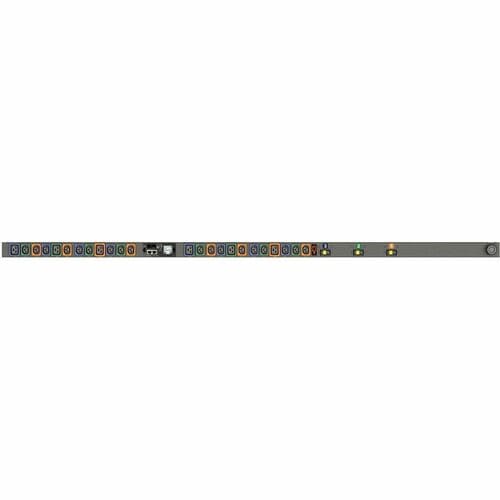

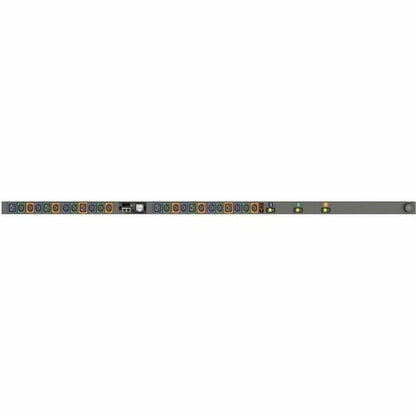

The Vertiv Geist Switched RPDU VP5N30A0 is a 30A, 120V/208V WYE, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (18) U-Lock C13 and (6) U-Lock C19 receptacles and a NEMA L21-30P plug providing 8.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N30A0 is a rack mount PDU with 18 U-Lock C13 and 6 U-Lock C19 receptacles and a NEMA L21-30P plug

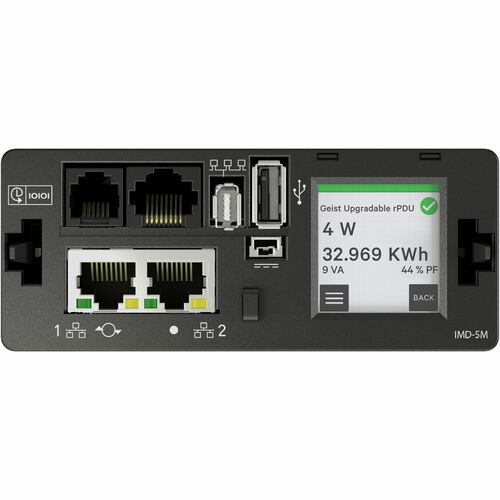

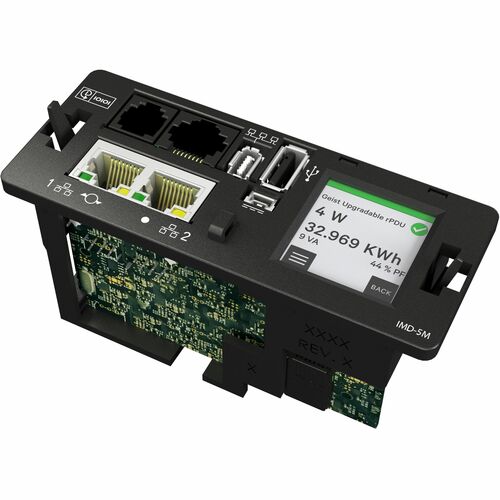

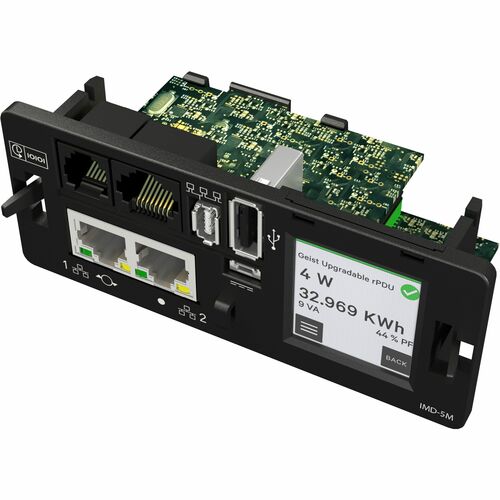

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Spécifications techniques
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Management | |
| Management | |
| Remote Outlet Switching | Yes |
| Miscellaneous | |
| Certifications & Standards | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Modem (RJ-12) | Yes |
| Modem (RJ-22) | No |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | VP5N30A0 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | GU VP5N30A0 PDU |
| Product Line | Geist Upgradeable |
| Product Series | N |
| Brand Name | Vertiv Geist |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 120 V AC |
| 208 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| 200 V AC - 240 V AC | |
| Power Rating (Watt) | 8.60 kW |
| Physical Characteristics | |
| Weight (Approximate) | 22 lb (9979.03 g) |
| Form Factor | Rack |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 66.25" (1682.75 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.60" (66.04 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | LCD Display |
| Touch Screen Display | |
| Plug/Connector Type | NEMA L21-30P |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| PDU Type | Switched |
| Locking Receptacles | Ulock |
| Receptacle Detail | 18 x U-Lock IEC 60320 C13 |
| 6 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x NEMA L21-30P |
