À propos du produit

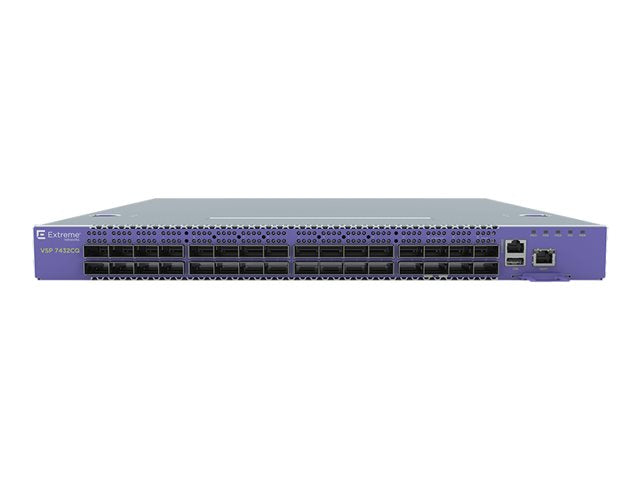

La série VSP (Virtual Services Platform) 7400 est composée de commutateurs Ethernet compacts et performants. Avec un format compact de 1 RU, la série VSP 7400 peut être déployée de manière flexible dans des architectures cœur/agrégation ou top-of-rack haute densité. Elle prend également en charge Extreme Fabric Connect pour une fourniture de services réseau simplifiée et automatisée.
Spécifications techniques
| Primary Information | |
| Product Description: | Extreme Networks ExtremeSwitching VSP 7400 VSP7400- 48Y-8C-AC-F - switch - 48 ports - managed - rack-mountable |
| Device Type: | Switch - 48 ports - L3 - managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Subtype: | 100 Gigabit Ethernet |
| Ports: | 8 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 + 48 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP28 |
| Performance: | Switching capacity: 4 |
| Capacity: | VLANs supported: 4059 ¦ MSTP instances: 64 ¦ MLT/LACP groups: 32 ¦ Links per MLT/LACP group: 8 ¦ ARP entries: 56000 ¦ IPv4 routes: 16000 ¦ RIP interfaces: 200 ¦ OSPF interfaces: 512 ¦ BGP peers: 256 ¦ VRF instances: 256 ¦ IPv6 neighbor table entries: 32000 ¦ IPv6 routes: 7500 ¦ RIPng interfaces: 48 ¦ OSPFv3 interfaces: 500 ¦ BGPv6 peers: 256 ¦ IGMP interfaces: 4059 ¦ PIM active interfaces: 128 ¦ MLD interfaces: 4059 ¦ IP multicast streams: 6000 ¦ MAC addresses: 80000 ¦ BCB/BEB nodes per region: 2000 ¦ BEB nodes per VSN: 2000 ¦ L2 virtual service networks: 4000 ¦ L3 virtual service networks: 256 ¦ IP shortcut routes (IPv4): 16000 ¦ IP shortcut routes (IPv6): 7500 ¦ BCB IP multicast (S, G) streams: 50000 ¦ L2 multicast virtual service networks: 2000 ¦ L3 multicast virtual service networks: 256 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 512 ¦ Maximum ACL rules per interface (IPv4) egress rules: 254 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 384 ¦ Maximum ACL rules per interface (IPv6) egress rules: 256 |
| MAC Address Table Size: | 160000 entries |
| Jumbo Frame Support: | 9600 bytes |
| Routing Protocol: | RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, RIPng, BGP+ |
| Features: | Full duplex capability, auto-negotiation, ARP support, VLAN support, port mirroring, DPI, sFlow, MSTP support, QoS, LACP, RSPAN, VRF, hot swappable fan, IPFIX, 6 fans, SPB, VXLAN, port-based VLAN, VSN support, support IP Shortcut Routing, RSTP, MLT for subscriber lines |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.1Qbp, IEEE 802.1Qcj |
| Power: | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy: | Yes |
| Dimensions (WxDxH): | 17.3 in x 20.9 in x 1.7 in |
| Weight: | 20 lbs |
| System Requirements: | VSP Operating System Software (VOSS) 8.0 |
| Manufacturer Warranty: | 1-year warranty |
| General | |
| Device Type: | Switch - 48 ports - L3 - managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Subtype: | 100 Gigabit Ethernet |
| Ports: | 8 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 + 48 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP28 |
| Performance: | Switching capacity: 4 |
| Capacity: | VLANs supported: 4059 ¦ MSTP instances: 64 ¦ MLT/LACP groups: 32 ¦ Links per MLT/LACP group: 8 ¦ ARP entries: 56000 ¦ IPv4 routes: 16000 ¦ RIP interfaces: 200 ¦ OSPF interfaces: 512 ¦ BGP peers: 256 ¦ VRF instances: 256 ¦ IPv6 neighbor table entries: 32000 ¦ IPv6 routes: 7500 ¦ RIPng interfaces: 48 ¦ OSPFv3 interfaces: 500 ¦ BGPv6 peers: 256 ¦ IGMP interfaces: 4059 ¦ PIM active interfaces: 128 ¦ MLD interfaces: 4059 ¦ IP multicast streams: 6000 ¦ MAC addresses: 80000 ¦ BCB/BEB nodes per region: 2000 ¦ BEB nodes per VSN: 2000 ¦ L2 virtual service networks: 4000 ¦ L3 virtual service networks: 256 ¦ IP shortcut routes (IPv4): 16000 ¦ IP shortcut routes (IPv6): 7500 ¦ BCB IP multicast (S, G) streams: 50000 ¦ L2 multicast virtual service networks: 2000 ¦ L3 multicast virtual service networks: 256 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 512 ¦ Maximum ACL rules per interface (IPv4) egress rules: 254 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 384 ¦ Maximum ACL rules per interface (IPv6) egress rules: 256 |
| MAC Address Table Size: | 160000 entries |
| Jumbo Frame Support: | 9600 bytes |
| Routing Protocol: | RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, RIPng, BGP+ |
| Features: | Full duplex capability, auto-negotiation, ARP support, VLAN support, port mirroring, DPI, sFlow, MSTP support, QoS, LACP, RSPAN, VRF, hot swappable fan, IPFIX, 6 fans, SPB, VXLAN, port-based VLAN, VSN support, support IP Shortcut Routing, RSTP, MLT for subscriber lines |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.1Qbp, IEEE 802.1Qcj |
| Processor: | 1 |
| RAM: | 16 GB DDR4 SDRAM |
| Built-in Devices: | 128 GB SSD |
| Expansion / Connectivity | |
| Interfaces: | 8 x 100Gbit LAN QSFP28 ¦ 1 x serial (console) RJ-45 management ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x Type A storage ¦ 48 x 1/10/25Gbit LAN SFP28 |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Power Provided: | 750 Watt |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit: | Included |
| Compliant Standards: | BSMI, EN 61000-3-2, SABS, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, IEC/EN 61000-4-3, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, ETSI EN 300 019-2-3 V2.1.2, ETSI EN 300 019-2-2 V2.1.2, NRCS, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, China RoHS SJ/T 11363-2006, RoHS CNS 15663, FCC CFR21 Part 1040.10, AS/NZS CISPR 32 |
| Software / System Requirements | |
| OS Required: | VSP Operating System Software (VOSS) 8.0 |
| Dimensions & Weight | |
| Width: | 17.3 in |
| Depth: | 20.9 in |
| Height: | 1.7 in |
| Weight: | 20 lbs |
