À propos du produit

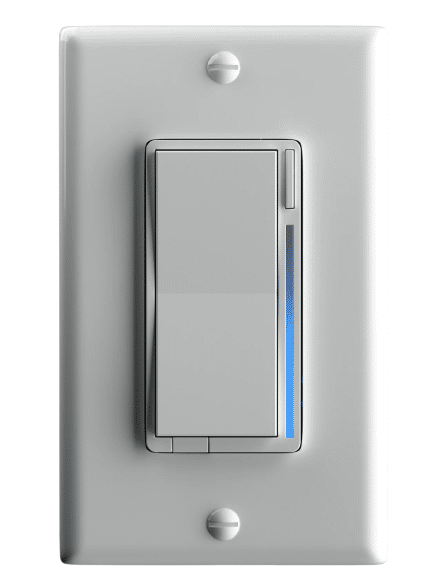

The Inovelli Blue Series Zigbee 3.0 Fan Switch transforms a traditional 120V AC motor fan switch into a smart switch capable of touch control and extended smart functionality via popular Smart Home platforms like SmartThings, Hubitat and Home Assistant.
Granular, customizable control through your favourite smart hub or smart home assistant allows control over parameters like fan speed, ramp-rate between settings, auto on-off timers, default and quick-tap presets, and more. Aesthetic features like full colour-LED bar control and 75+ additional parameters allow you to customize and retrofit any existing fan switch into a fully automated smart home device.
Smart Device Compatibility
The Blue Series 2-1 Switch works with the following platforms:
SmartThings
Home Assistant - ZHA
Home Assistant - Zigbee2MQTT
Hubitat
Amazon Echo*
*Requires a compatible version. See Inovelli's Amazon Echo Compatibility Chart.
VZM35-SN Specs and Features:
- Power: 120V AC, 60Hz
- Maximum power setting only available with neutral connection; without neutral, only medium and low settings are available
- Does not work with exhaust fans
- Zigbee 3.0
- Multi-Way Compatible
- Signal (Frequency): 2.4GHz
- Operating Temperature Range: 32-95° F (0-35° C)
- Maximum Load (Amps): 2.5 Amps (No more than 2 fans on the switch)
- Range: Up to 100 meters line of sight between the Wireless Controller (HUB) and the closest Zigbee Module
- Dimensions: Depth = 1.2"" (3.0cm), Height = 2.8"" (7.1cm), Width = 1.6"" (4.1cm)
- ETL Certified: 5027290
- FCC Certified: 2BBTA-VZM35SN
- IC Certified: 24756-VZM35SN
- Zigbee Certified: ZIG22160ZB331395-24
Online Product Manual available here.
Online Product Wiring Schematic available here.
Spécifications techniques
The Inovelli Blue Series Zigbee 3.0 Fan Switch transforms a traditional 120V AC motor fan switch into a smart switch capable of touch control and extended smart functionality via popular Smart Home platforms like SmartThings, Hubitat and Home Assistant.
Granular, customizable control through your favourite smart hub or smart home assistant allows control over parameters like fan speed, ramp-rate between settings, auto on-off timers, default and quick-tap presets, and more. Aesthetic features like full colour-LED bar control and 75+ additional parameters allow you to customize and retrofit any existing fan switch into a fully automated smart home device.
Smart Device Compatibility
The Blue Series 2-1 Switch works with the following platforms:
SmartThings
Home Assistant - ZHA
Home Assistant - Zigbee2MQTT
Hubitat
Amazon Echo*
*Requires a compatible version. See Inovelli's Amazon Echo Compatibility Chart.
VZM35-SN Specs and Features:
- Power: 120V AC, 60Hz
- Maximum power setting only available with neutral connection; without neutral, only medium and low settings are available
- Does not work with exhaust fans
- Zigbee 3.0
- Multi-Way Compatible
- Signal (Frequency): 2.4GHz
- Operating Temperature Range: 32-95° F (0-35° C)
- Maximum Load (Amps): 2.5 Amps (No more than 2 fans on the switch)
- Range: Up to 100 meters line of sight between the Wireless Controller (HUB) and the closest Zigbee Module
- Dimensions: Depth = 1.2"" (3.0cm), Height = 2.8"" (7.1cm), Width = 1.6"" (4.1cm)
- ETL Certified: 5027290
- FCC Certified: 2BBTA-VZM35SN
- IC Certified: 24756-VZM35SN
- Zigbee Certified: ZIG22160ZB331395-24
Online Product Manual available here.
Online Product Wiring Schematic available here.
