Introduction

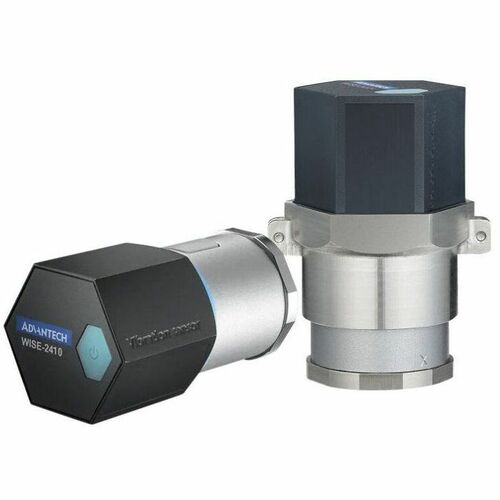

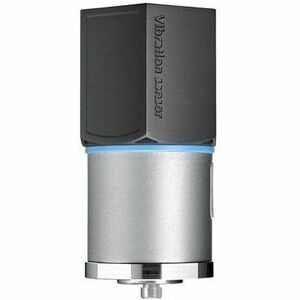

WISE-2410 is a LoRaWAN wireless condition monitoring sensor integrated with an ARM Cortex-M4 processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. It balances the wireless bandwidth between WISE-2410 and the gateway, so it also mitigates the data transmission fail rates between edge-devices and gateways.
Star Topology
WISE-2410 is a LoRaWAN uses a star network topology and features a gateway data relay function between sensors and the application server. The communication between the sensors and gateway goes over the wireless channel, utilizing the LoRa physical layer, whilst the connection between the gateways and the central server are handled over a backbone IP-based network or over Modbus protocol to the application server.
Computing on Board
With an ARM Cortex-M4 Processor, WISE-2410 enables users to implement more features inside. WISE-2410 is able to calculate more complex eigenvalues itself, such as VRMS, ARMS, Peak, Displacement, Kurtosis, Crest factor, Skewness and Standard Deviation values. With its edge computing capability, WISE-2410 can balance the loading between WISE2410, gateway, and cloud service.
Plug & Play with 2-year Battery life cyle
WISE-2410 includes two 3.6V AA battery holders. Along with LPWAN technology verified by Advantech, the battery life on WISE-2410 can be up to 2 years with once per hour data update interval time. With IP66 protection design, WISE-2410 is ideal for Low-Power Wide-Area Network (LPWAN) applications, such as pumps, HAVC system, motors, facility monitoring and more. WISE-2410 connects to Advantech's WISE Studio Utility for more user friendly and efficient installation.
- LoRaWAN wireless connectivity
- Built-in 3-axis accelerometer and temperature sensor
- Computing total 8 vibration characteristic values on board
- Compliant with ISO 10816
- IP66 with battery-powered, no wiring installation needed
- Easy setting with user friendly interfaces on WISE Studio
- Support wide temperature -20 ~ 120 °C
Spécifications techniques
| Interfaces/Ports | |
| USB | Yes |
| Power Description | |
| Power Source | Battery |
| Technical Information | |
| Connectivity Technology | Wireless |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 480 g |
| Length | 1.65" (42 mm) |
| Mount Type | Adhesive Mount |
| Stud Mount | |
| Height | 3.33" (84.70 mm) |
| Depth | 1.90" (48.30 mm) |
| General Information | |
| Product Type | Motion Sensor |
| Manufacturer Part Number | WISE2410NA |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | WISE-2410 |
| Product Name | LoRaWAN Wireless Condition Monitoring Sensor |
| Brand Name | Advantech |
