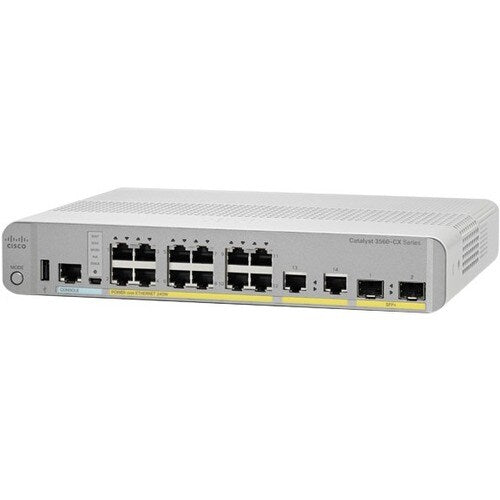

The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.
With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports layer 3 switching for enhanced performance and usability
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to places where a power outlet is not present
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 12 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Network & Communication | |
| Layer Supported | 3 |
| Reliability | |
| MTBF | 553140 Hour |
| Management & Protocols | |
| Management |
|
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | Yes |
| Memory | |
| Flash Memory | 128 MB |
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Miscellaneous | |
| Certifications & Standards | IEEE Standards:
|
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2 |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Physical Characteristics | |
| Weight (Approximate) | 5.10 lb (2313.32 g) |
| Form Factor | Rail-mountable |
| Rack-mountable | |
| Desktop | |
| Height | 1.75" (44.45 mm) |
| Width | 10.60" (269.24 mm) |
| Depth | 9.40" (238.76 mm) |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | WS-C3560CX-12PC-S |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 3560CX-12PC-S |
| Product Name | 3560CX-12PC-S Layer 3 Switch |
| Product Line | Catalyst |
| Product Series | 3560-CX |
| Brand Name | Cisco |
| Interfaces/Ports | |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 2 |
| Modular | No |
| Management Port | No |
| Uplink Port | Yes |
| Number of PoE+ (RJ-45) Ports | 12 |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 12 |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet Network |
| 2 x Gigabit Ethernet Expansion Slot | |
| 2 x Gigabit Ethernet Uplink |
