À propos du produit

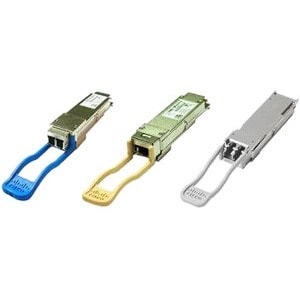

The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.
Spécifications techniques
| Media & Performance | |
| Fiber Mode Supported | Single-mode |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Technical Information | |
| Application/Usage | Data Networking |
| Optical Network | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC Duplex 40GBase-LR4 Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.53" (13.50 mm) |
| Width | 0.72" (18.40 mm) |
| Depth | 2.85" (72.40 mm) |
| General Information | |
| Product Type | QSFP |
| Manufacturer Part Number | WSP-Q40GLR4L= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | WSP-Q40GLR4L |
| Product Name | 40GBase-LR4L QSFP Module for SMF |
| Brand Name | Cisco |
